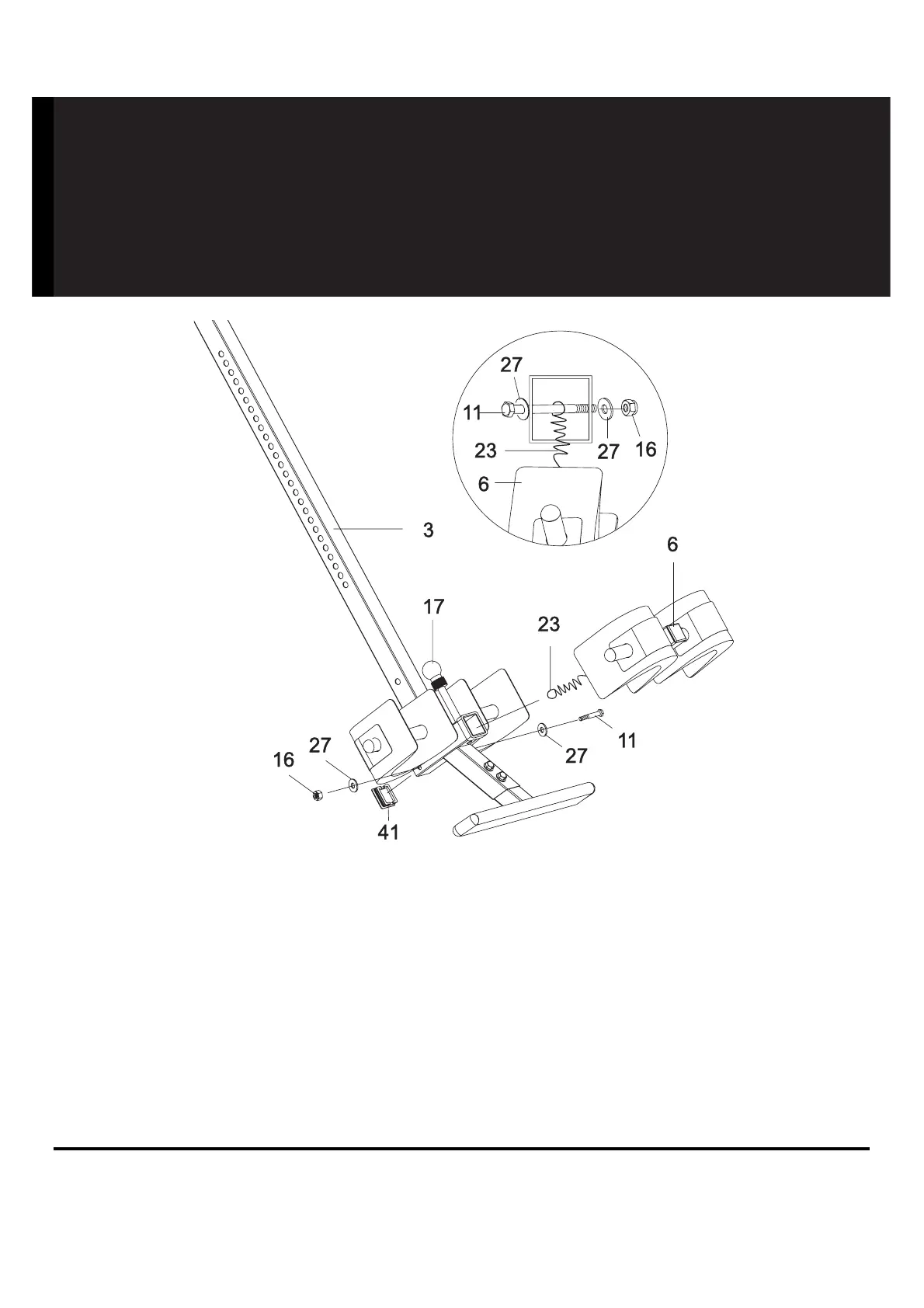

STEP 6:
Remove the Square End Cap (41) on the back of square bracket of Adjustable Boom (3). Attach
the Adjustable Instep Frame (6) to the Adjustable Boom (3) by inserting the Adjustable Instep
Frame (6) into the square bracket on the boom. Slide the Adjustable Instep Frame (6) completely
into the square bracket, insert the Hex Head Bolt (11) with a Washer (27) halfway through the
square bracket, slide the Hex Head Bolt (11) through the ring at the bottom of the Spring (23),
slide the Hex Head Bolt (11) through the rest of the square bracket, and secure at the other end
with a Washer (27) and Lock Nut (16). Attach the Square End Cap (41) onto the back of square
bracket of Adjustable Boom (3) that was removed.
Note: To slide the Adjustable Instep Frame (6) into the square frame, you must first pull out the
Small Spring Knob (17).
