Paradox ESPRIT728 User Manual

SINGLE ZONE connection with 1 EOL resistor, tamper recognition (N.C. contacts)
address 208, key [MEM] = "off"
key [10] =
key [11] =
address 210, key [8] = "off"
Tamper fault transmits separate code, see Figure 3

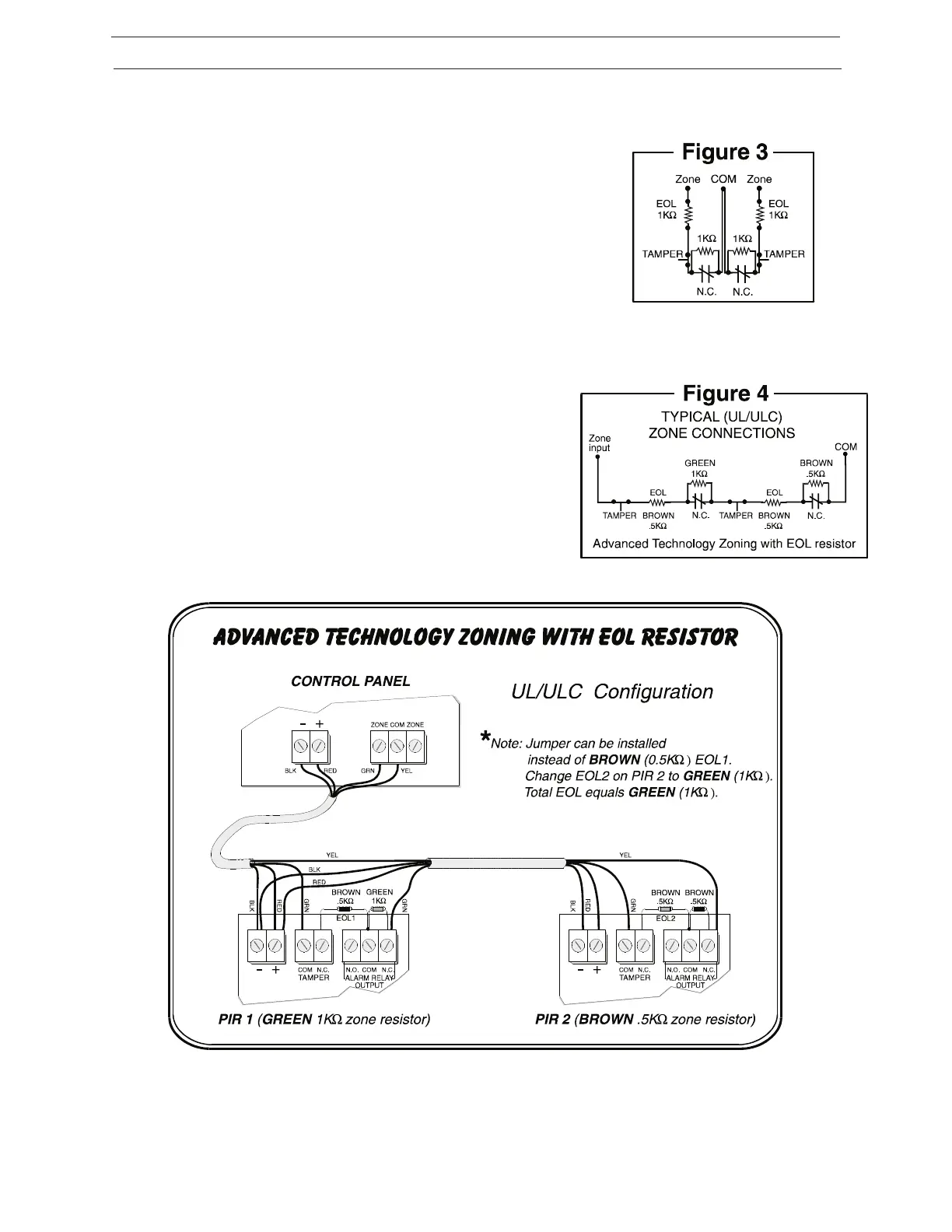

ADVANCED TECHNOLOGY ZONE connection, 2 zones with zone resistors, 1 EOL resistor
green ( 1KOHM) tamper (open) recognition, wire fault (short circuit) recognition (N.C. contacts)
address 208, key [MEM] = "off"
key [10] =
key [11] =
address 210, key [8] = "on"
Each zone transmits a separate alarm code.
Tamper/wire fault transmits a separate alarm code,
indicated by fast flashing zone light on keypad
and is annunciated in Espload , see figure 4.
See "Tamper/wire Fault Definitions
and Options"
See "Tamper/wire Fault Definitions
and Options"
ESPRIT 728 CONNECTION DIAGRAMS (continued)
- 12 -
(UL/ULC configuration)
(UL/ULC configuration)
GREEN
GREEN
GREEN
GREEN
