Technical Specifications.
Warranty
For complete warranty information on this product please refer to the Limited Warranty Statement found on the website
www.paradox.com/terms. Your use of the Paradox product signifies your acceptance of all warranty terms and conditions.
© 2007 Paradox Security Systems Ltd. All rights reserved. Specifications may change without prior notice. One or more of
the following US patents may apply: 7046142, 6215399, 6111256, 6104319, 5920259, 5886632, 5721542, 5287111,
5119069, 5077549 and RE39406 and other pending patents may apply. Canadian and international patents may also apply.
GlassTrek, Digiplex, Digiplex EVO, Magellan and Spectra SP are trademarks or registered trademarks of Paradox Security
Systems Ltd. or its affiliates in Canada, the United States and/or other countries.

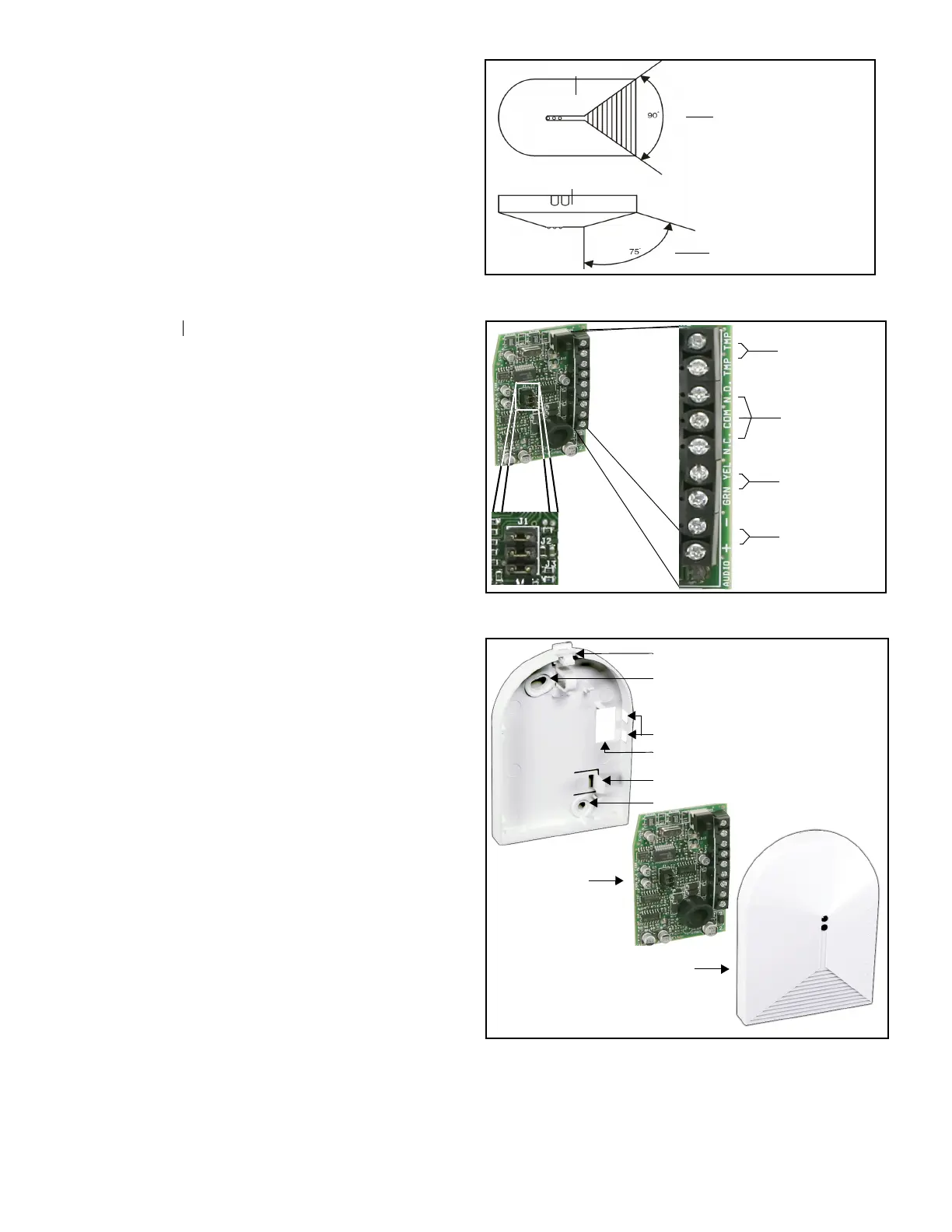

Figure 1: Detection Angle
Figure 2: Connections
Figure 3: Exploded View
Voltage 9 - 16Vdc
Current DG457 (35mA) 457(25mA)
Coverage High: 9m (30ft) / Low: 4.5m (15ft)
Size 9cm (3.5in) x 6.6cm (2.6in) x 2.5cm (1in)
Weight 100g (4oz)
Alarm output 150mA, 28VDC, Form A (N.C.) / via combus
Anti-tamper output 150mA, 28VDC, Form A (N.C.) / via combus
Operating temp. -20°C to 50°C (4°F to 122°F)
Processing 1. Attack rise time
2. Attack sound pressure level
3. 7-band audio spectrum analysis
4. Envelope duration
5. Infra-sound
Microprocessor type 12/8-bits
Compatibility All Digiplex series (DGP/DGPNE) and all EVO
series control panels.
Testing tool TestTrek (DG459)
Certification (i.e. CE, UL) For updated information, visit www.paradox.com
A - Top View
B - Optimal Detection
Angle View
C - Side View
D - Optimal Detection
Angle View
B
A
D
C
Power Input
(9-16Vdc)
Combus*
(J3 ON)
Alarm relay
(N.O.
Optional
*)
Anti-tamper
Jumpers
J1
J2
J3
* = DG457 only
J1
J2
J3
B
A
A - Opening pin
B - Screw hole
C - Side wire entry
D - Rear wire entry
E - PCB clip
B
C
D
E
PCB
Front Cover
