Paradox NVX80

Firmware Upgrades

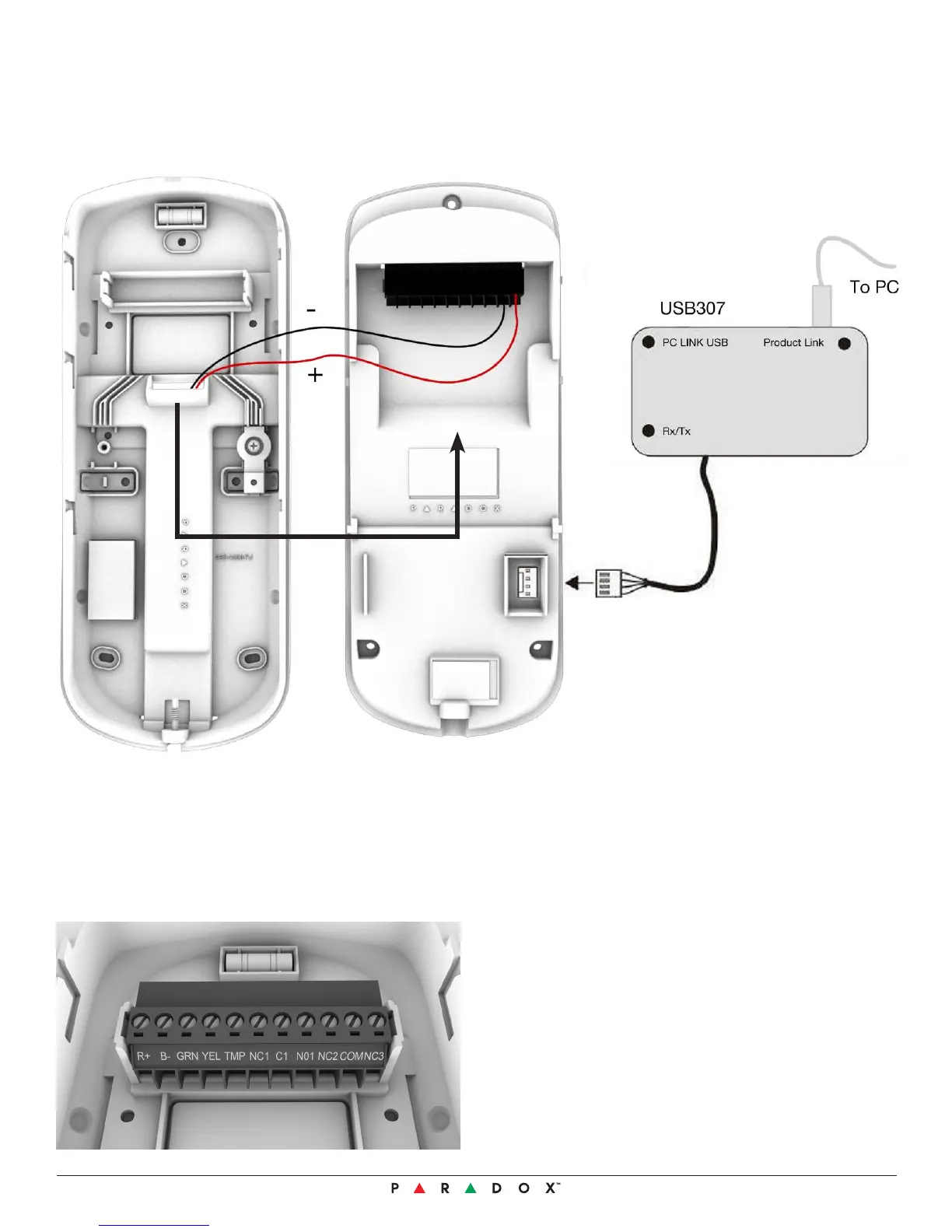

Use the diagram below to upload firmware upgrades.
Connecting to the Bus
Connecting to the Digiplex bus is quite straight forward. Insert the wires into their respective slots Red (R+), Black (B-),
Green (GRN) and Yellow (YEL).
3 NVX80-EQ02
06/2013
