Paragon EC72D/12 User Manual

To convert the EC72D:
1. Remove the control according to directions on page 17.
2. The jumper wire, J29, is located on the back side of the control in
the upper left-hand corner of the board. See Figure 10 below. Clip
J29.

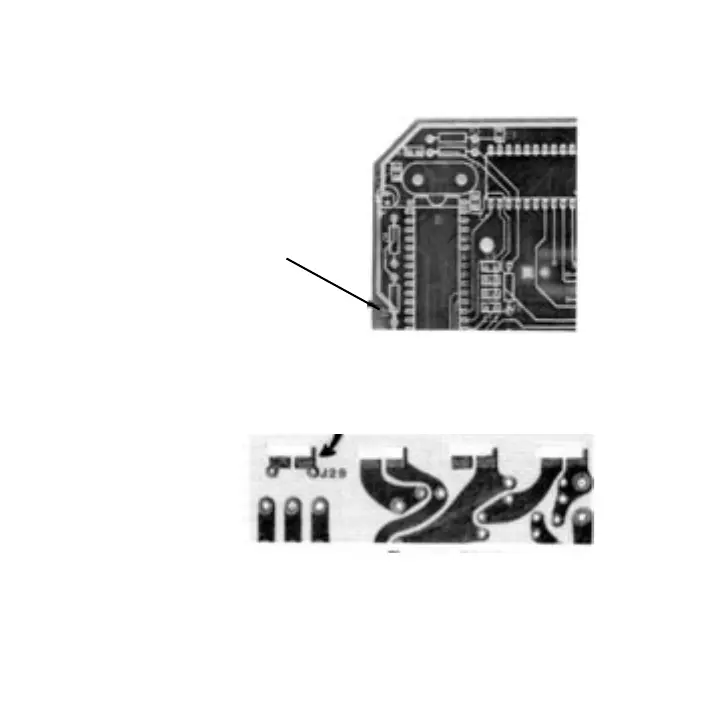

Figure 10. EC72D Jumper Wire
23
Figure 9A.
EC72
Jumper Wire
