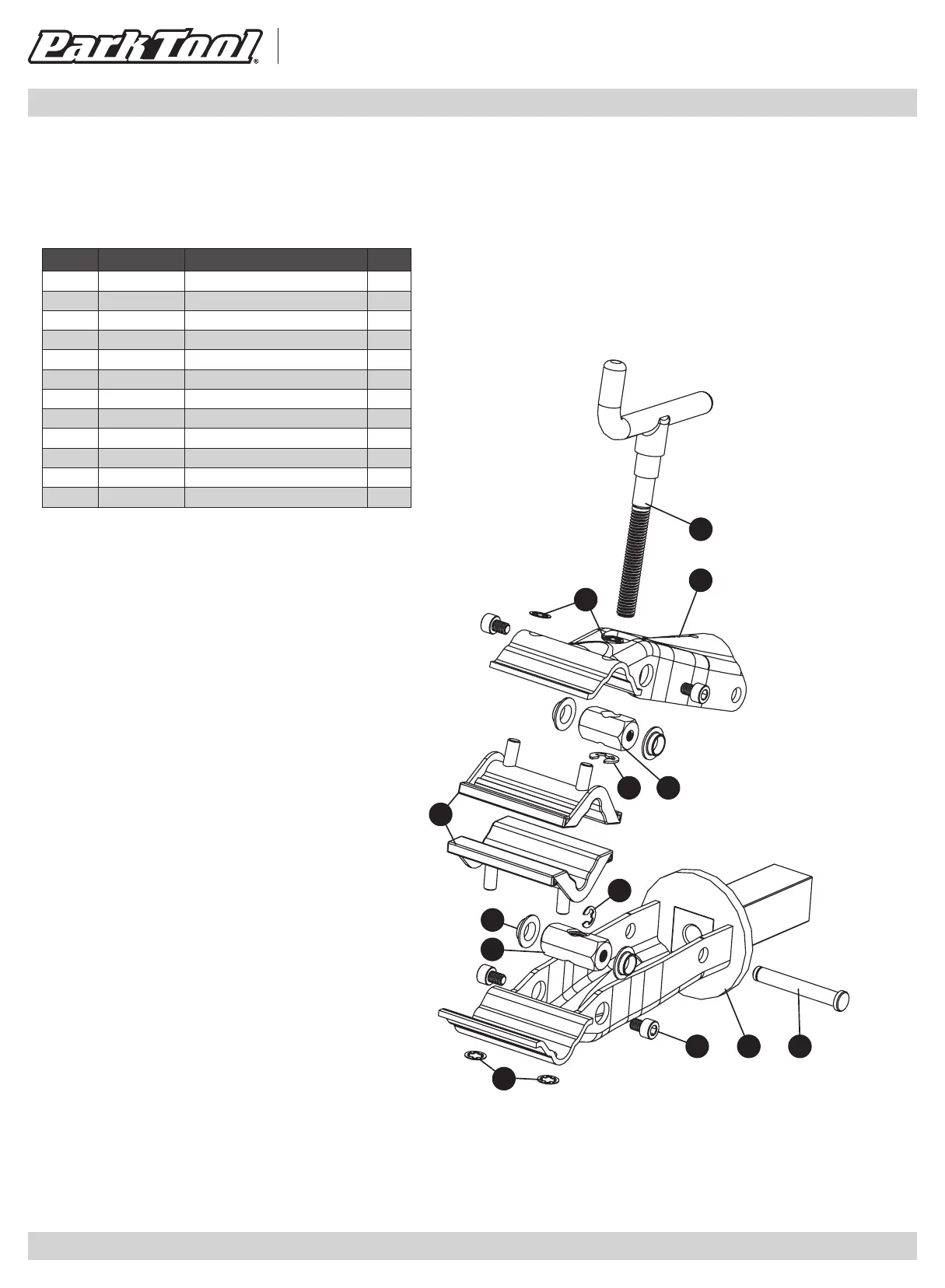

PCS-9.2 Parts / Pièces / Teile / Partes
Ref. # Part # Description Qty.
33 2834 Clevis Pin C-Clip 1
34 467-1 Washer 4
35 1960 Jaw Cover (Set) 1
36 2823 Rotating Jaw 1
37 2826 Moveable Jaw 1
38 2831 Hex Barrel-Threaded 1
39 2832 Hex Barrel-Unthreaded 1
40 2830 Hex Bushing 4
41 2829 Hex Bolt 4
42 2833 Clevis Pin 1
43 2835 Clamp Handle Assembly 1
44 1697 Handle Shaft E-Clip 1
33
36 42
40
38
37
41
34
44 39
35
43
34
PCS-9.2 PART NUMBERS
