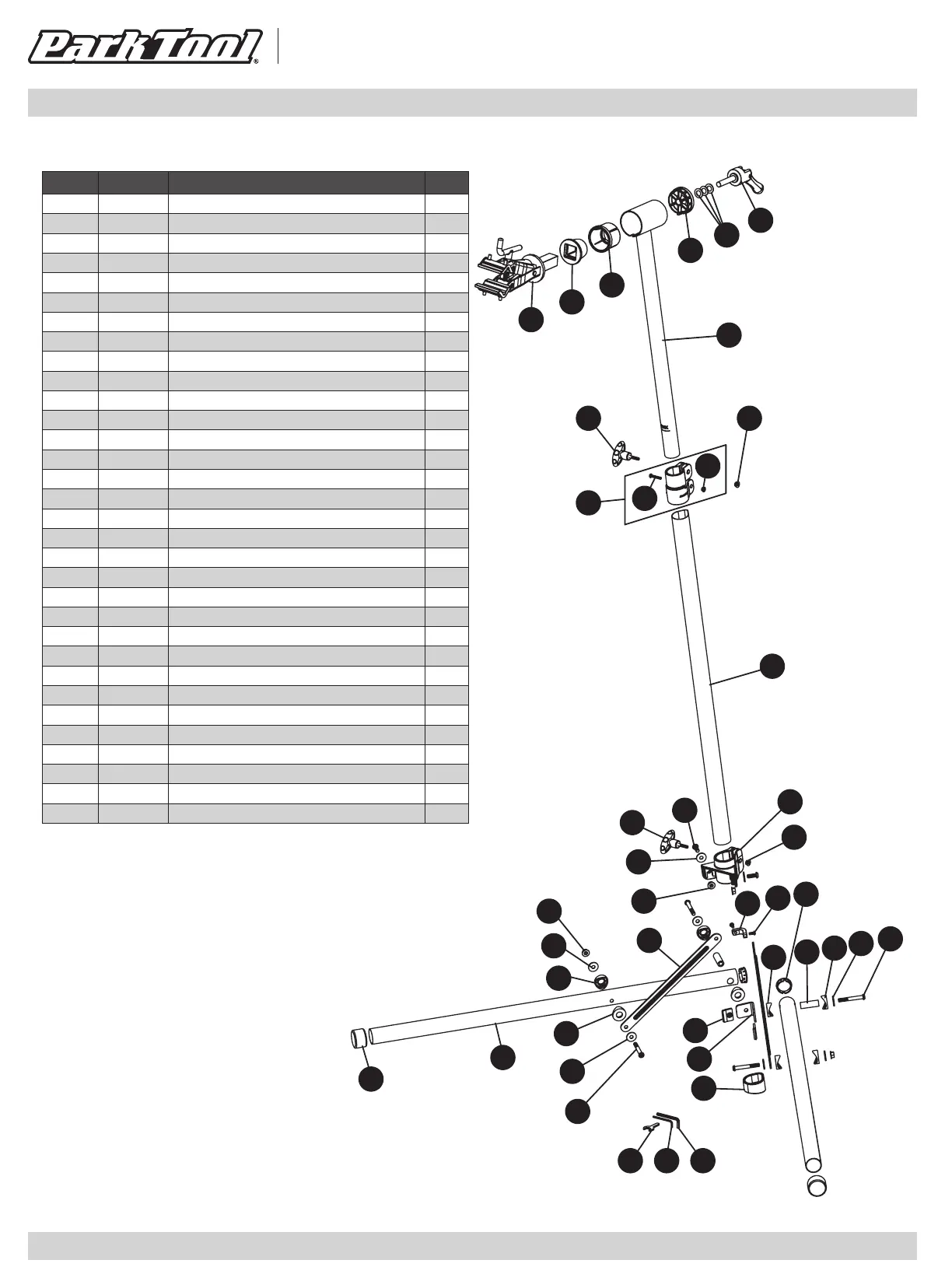

PCS-9.2 Parts / Pièces / Teile / Partes
Ref. # Part # Description Qty.
1 2806 Coped Washer 8
2 2802 Leg 2
3 2800 Yoke 1
4 1458-22 Flange Nut M5 1
5 1780-2 Leg End Cap 2
6 2801 Upright End Cap 1
7 2804 Large Vertical Upright 1
8 2808A Collar Assembly 1
9 2805 Coped Nut 2
10 2807 Leg Strap 2
11 2810 Flange Lock Nut M8 4
12 2811 Leg Bracket 1
13 2812 Leg Washer M8 8
14 2813 Button Head Cap Screw M8 x 60mm 4
15 2814 Button Head Cap Screw M8 x 22mm 2
16 2815 Button Head Cap Screw M5 x 30mm 1
17 2803 Button Head Cap Screw M5 x 12mm 2
18 2816 Yoke Knob 2
19 2828 Flange Lock Nut M6 2
20 2817 Top Tube 1
21 2837 Clamp 1
22 1458-3 Washer 3
23 1800 Clamp Sleeve 1
24 2822 Swing Handle Assembly 1
25 2839 Spacer 2
26 2850 Leg Rear End Cap 2
27 2809 Hard Stop 1
28 2840 3mm Hex Tool 1
29 2841 5mm Hex Tool 1
30 2842 13mm Flat Wrench Tool 1
31 2820 Top Tube Compression Sleeve 1
32 2821 Top Tube End Cap 1
11
16
13
1
26
6
2
12
1
1
13
1
9
14
25
5
18
10
13
15
27
17
14
13
28 2930
11
3
19
22
7
18
4
8
19
24
20
32
31
23
21
PCS-9.2 PART NUMBERS
