5115 Hadley Ave. N., St. Paul, MN 55128 (USA) www.parktool.com
PARK TOOL CO.

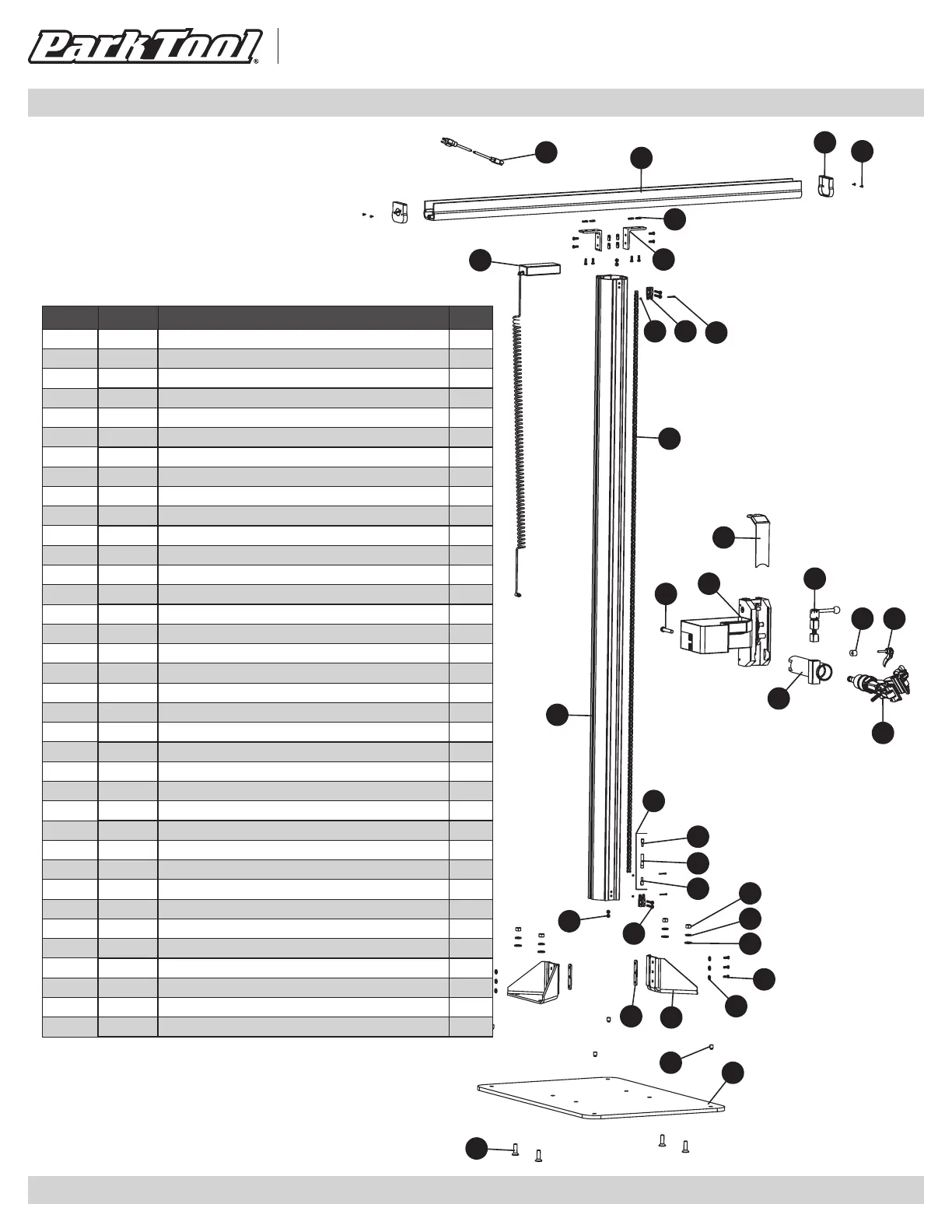

PRS-33 Parts / Pièces / Teile / Partes
1
22
23
2
4
5
8
10
11
27
34 35
12
21
1436
20
13
25
24
26
19
28
29
30
15
16
17
18
9
6
7
3
31
33
32
Ref. # Part # Description Qty.
1 2102-2 Upright Support 2
2 2100 Upright 1
3 2105 Carriage Assembly (see page 4) 1
4 2119 Carriage Cover 1
5 128B Hex Head Bolt 7/16-14 x 2.5” 1
6 100-3D Clamp 1
7 2127 Horizontal Tube 1
8 2103 Cross Bar 1
9 2106-2 Cross Bar Support 2
10 2107-2 End Cap 2
11 1948-2 End Cap Screw 4
12 2108-8 Offset T-Nut M6x1.0 8
13 2109-14 Button Head Socket Cap Screw M6 x 1.0 x 16 14
14 2104-2 Chain Retainer 2
15 2111- 4 Flat Head Socket Cap Screw M12 x 1.75 x 40 4
16 2112- 4 Flat Washer M12 4
17 2113- 4 Lock Washer M12 4
18 2114-4 Hex Nut M12 x 1.75 4
19 2115- 4 Flat Head Socket Cap Screw M6 x 1.0 x 40 4
20 1157-3 Socket Head Cap Screw M3 x 25 3
21 2150 Chain 1
22 2152-2 Triple T-Nut 2
23 2153 Chain Tensioning Assembly (24,25,26) —
24 2154 Chain Tensioner, Adjusting Barrel 1
25 2155 Chain Tensioner, RH Thread 1
26 2156 Chain Tensioner, LH Thread 1
27 180 Lock Block Assembly 1
28 1556-4 Washer M6 6
29 135-33 Base (Sold Separately) 1
30 2110- 4 Socket Head Set Screw 4
31 2147 Power Supply / Coil Cord Assembly 1
32 2148 Power Cord 1
33 290 Nylon Insert Locknut M6 x 1.0 4
34 2151 Brake Wedge 1
35 929-33 Quick Release 1
36 732-2B Nylon Insert Locknut M3 3
© 2018 Park Tool Co.
PARK TOOL® and the color BLUE are registered trademarks of Park Tool Co.
08/18
PRS-33 PART NUMBERS
