Park Tool PRS-33 - 2105 Carriage Assembly Part Numbers

5115 Hadley Ave. N., St. Paul, MN 55128 (USA) www.parktool.com
PARK TOOL CO.
Ref. # Part # Description Qty.
37 2120 Carriage 1
38 2121-4 Idler Shaft Bearing 4
39 2122-2 Idler Sprocket Shaft 2
40 2123-2 Idler Sprocket 2
41 2126-2 Drive Shaft Bearing 5
42 2124 Drive Shaft 1
43 2129 Carriage Bearing, Right 1
44 2130 Carriage Bearing, Left 1
45 2131 Drive Gear and Sprocket 1
46 2133 Drive Gear Shaft 1
47 2132 Drive Gear 1
48 2137 Flanged Bearing 1
Ref. # Part # Description Qty.
49 2134 Motor Mount 1
50 2135 Motor 1
51 2136 Shaft Coupling 1
52 2139 Motor Enclosure 1
53 2144 Drive Plug 1
54 2141-8 Socket Head Cap Screw, M5 x 0.8 x 16 8
55 2145 Idler Plug 2
56 2138 Work Tray Top 1
57 541 Socket Head Cap Screw, M6 x 40 4
58 2149 Wiring Harness
(includes wiring & both switches) 1
59 609 Set Screw, M6 x 8 mm 5
60 2146 Drive Gear Spacer 1

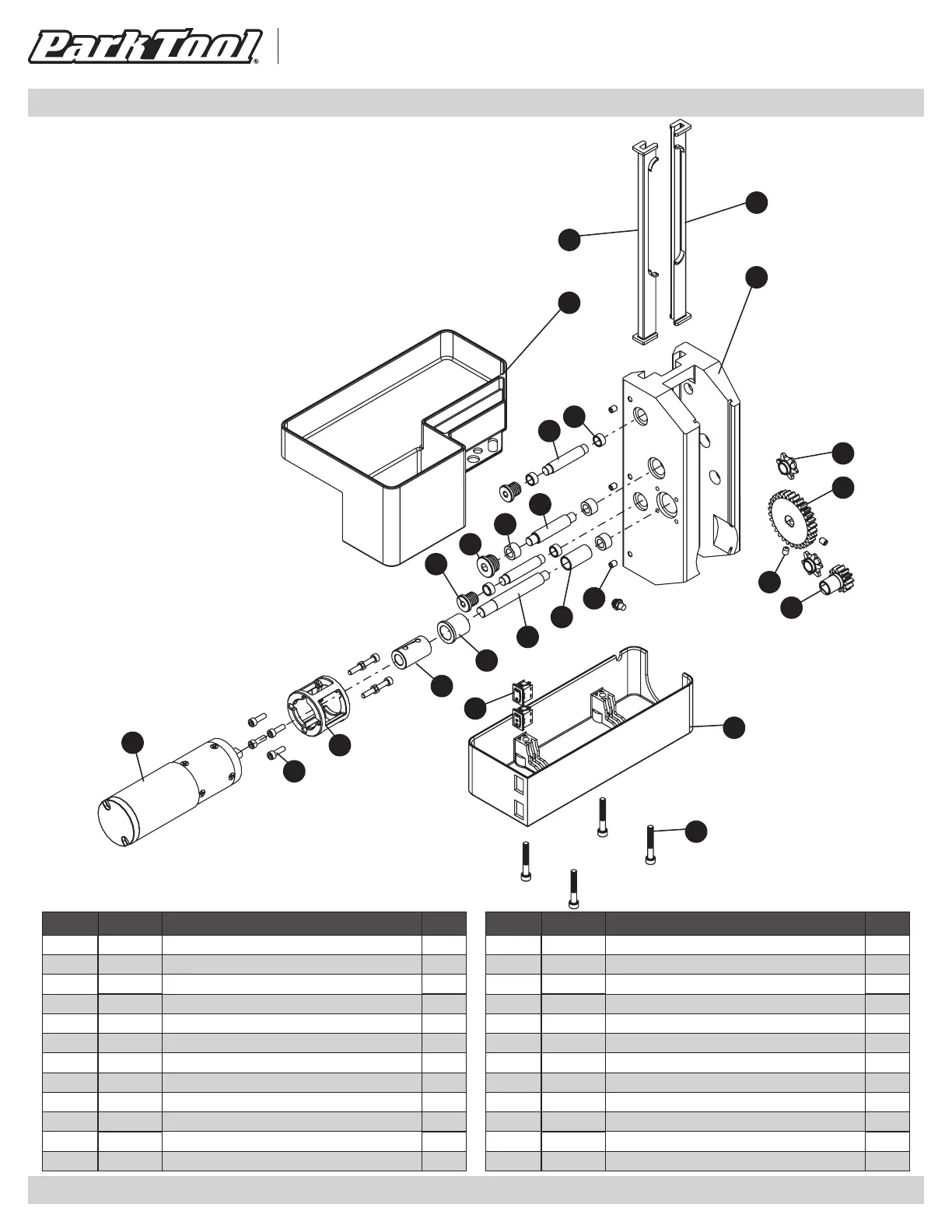

2105 PART NUMBERS
