Park Tool TS-4 - Page 6

5115 Hadley Ave. N., St. Paul, MN 55128 (USA) www.parktool.com
PARK TOOL CO.

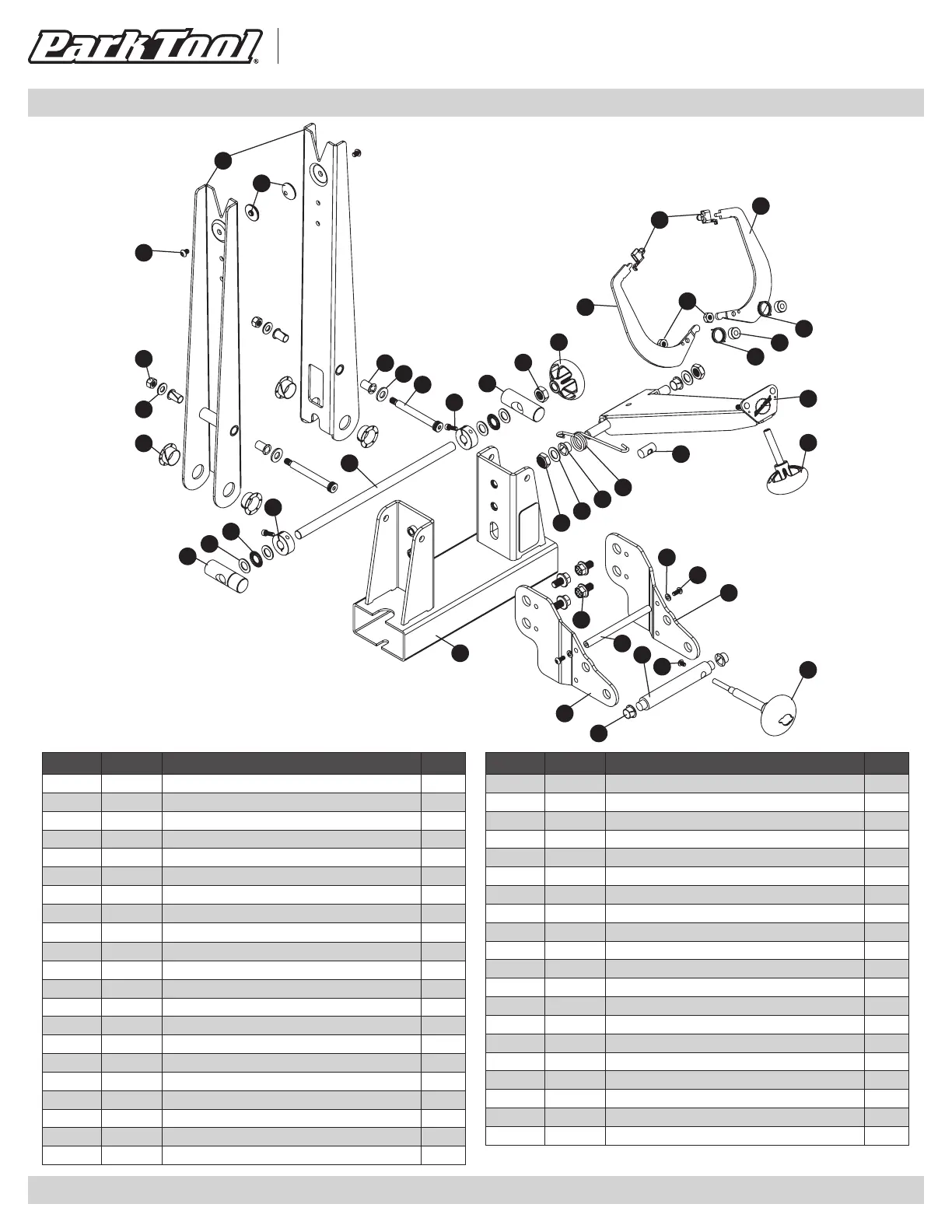

TS-4 Parts / Pièces / Teile / Partes
© 2016 Park Tool Co.
PARK TOOL® and the color BLUE are registered trademarks of Park Tool Co.
12/16
Ref. # Part # Description Qty.
1 2400 Base Weldment 1
2 2404 Long Upright 2
3 2408 Right Pivot Bushing 1
4 2409 Left Pivot Bushing 1
5 2410 Main Shaft 1
6 215S Main Shaft Knob 1
7 209-2 Split Shaft Collar 2
8 2415 Caliper Arm Angle Knob 1
9 235-2 Caliper Arm Bushing 4
10 232-2 Upright Bushing 4
11 2416 Caliper Arm 1
12 206-2 Caliper Arm Spring 1
13 2419 Right Caliper 1
14 2420 Left Caliper 1
15 228-2R Caliper Spring Spacer 2
16 222SR Right Caliper Spring 1
17 222SL Left Caliper Spring 1
18 238-2 Caliper Cap 2
19 223S Caliper Knob 1
20 2421 Caliper Arm Knob Bushing 1
21 2422 Caliper Arm Small Bushing 1
Ref. # Part # Description Qty.
22 2412 Caliper Arm Left Mounting Plate 1
23 2413 Caliper Arm Right Mounting Plate 1
24 2423 Caliper Arm Knob Cap Screw 1
25 233-2 Thin Nylon Locknut, 1/2”– 20 2
26 826 Button Head Cap Screw, M6 x 8 2
27 212S Locknut, 1/2”– 13 1
28 748-1 Needle Bearing 2
29 749-1 Bearing Washer, 1/2” 6
30 2429-2 Washer, 5/16” 2
31 2424-2 Thru Axle Button 2
32 209 Socket Head Cap Screw 2
33 2407-2 Long Upright Pivot Bolt 2
34 2427-2 Caliper Arm Pivot Washer 2
35 2428-2 Upright Pivot Locknut, 5/16”– 18 2
36 2426-4 Caliper Arm Bracket Cap Screw 4
37 2430 Spacer 1
38 2433-4 Split Flanged Sleeve Bearing, 7/8” 4
39 2431-2 Washer, M5 2
40 2432-2 Button Head Cap Screw. M5 x 12mm 2
41 480-6 Thin Nylon Locknut, 1/4”– 20 2
38
35
30
7
28
29
4
31
2
26
6
27
3
32
10
34
5
33
14
21
12
9
29
25
13
41
11
19
18
16
17
15
1
39
40
36
23
24
37
22
20
9
8
