Parker Hiross Hyperfilter User Manual

34 HFN005-370

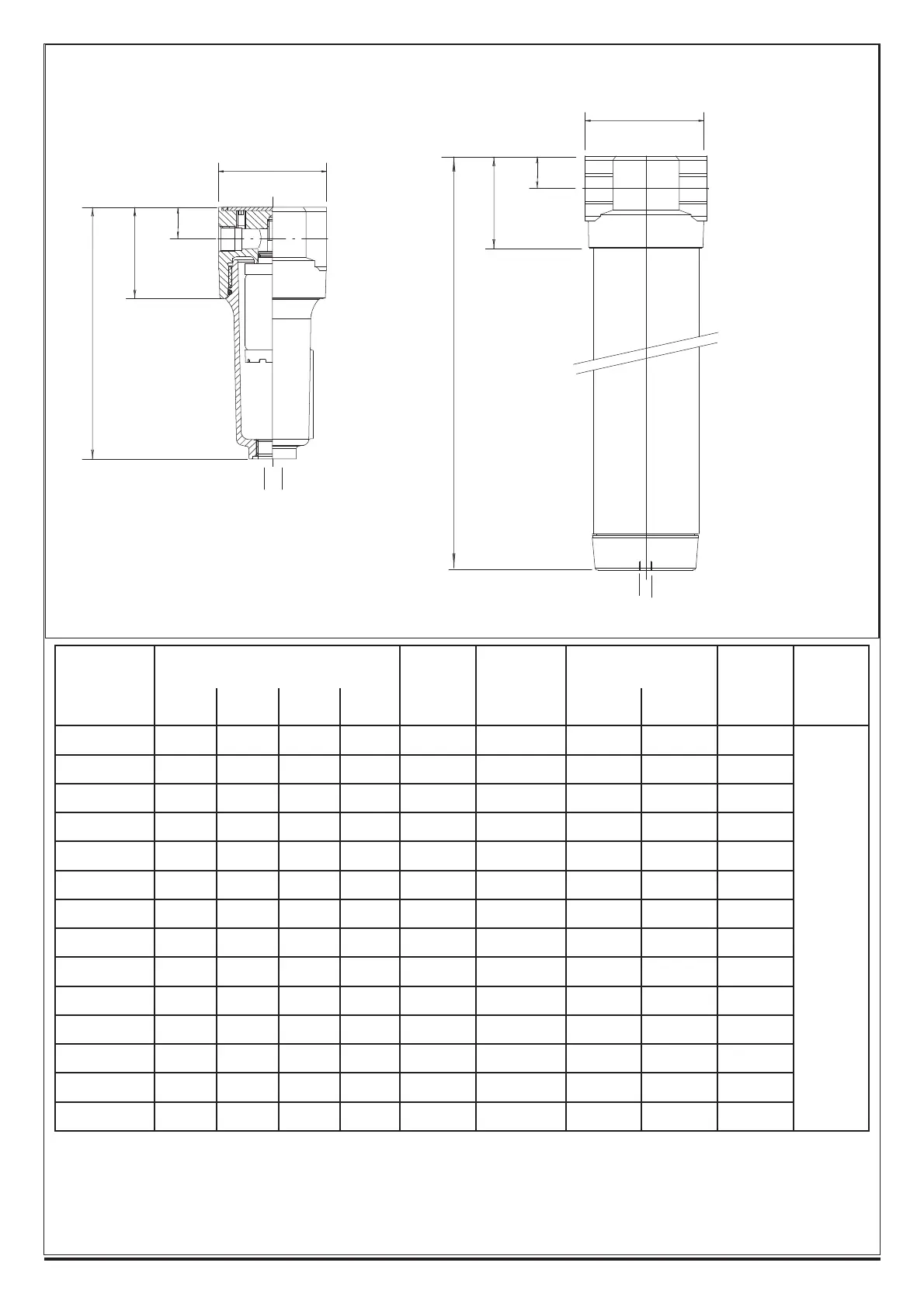

Fig.4 Overall dimensions
HFN005--- 205
C
D
A
B
½” BSP
A
C
D
B
½” BSP
HFN300--- 370
Model
DIMENSIONS (mm)
Weight
(kg)
Air
connections
Nominal air flow
at 7 barg Volume
(dm3)
Max. air
pressure
(+)
(barg)
A B C D (m3/min) (cfm)
HFN005 69 168 21 61 0.6 1/4” BSP 0.53 18 0.2
16
HFN010 89 267 24 74 1.2 3/8” BSP 1.0 35 0.8
HFN018 89 267 24 74 1.2 1/2” BSP 1.8 63 0.8
HFN022 89 267 24 74 1.2 3/4" BSP 2.2 77 0.8
HFN030 109 367 34 97 2.4 3/4" BSP 3.0 106 1.83
HFN045 109 367 34 97 2.4 1" BSP 4.5 159 1.83
HFN062 109 514 34 97 3 1 ¼” BSP 6.2 219 2.7
HFN072 109 514 34 97 3 1 ½” BSP 7.2 254 2.7
HFN122 150 550 41 118 5.2 1 ½” BSP 12.2 430 4.9
HFN135 150 550 41 118 5.2 2”BSP 13.5 476 4.9
HFN175 150 928 41 118 6.5 2”BSP 17.5 618 8
HFN205 150 928 41 118 6.6 2”BSP 20.5 724 8
HFN300 188 733 56 159 13.5 2 ½” BSP 30.0 1059 10.3
HFN370 188 933 56 159 16 3”BSP 37.0 1306 12.4
(+) Value may differ for special requests - check data plate.
