Parker ES2000 Series User Manual

2
2 Description
Parker ES2000 Series Oil / Water Separators are a simple, economical and environmental solution. These oil / water separators are installed as
part of the compressed air system and simply reduce the oil concentration in the collected condensate to a level permitted for discharge. This
allows the larger volume of clean water, up to 99.9% of the total condensate, to be discharged safely into the foul sewer and the relatively small
amount of concentrated oil to be disposed of legitimately and economically.

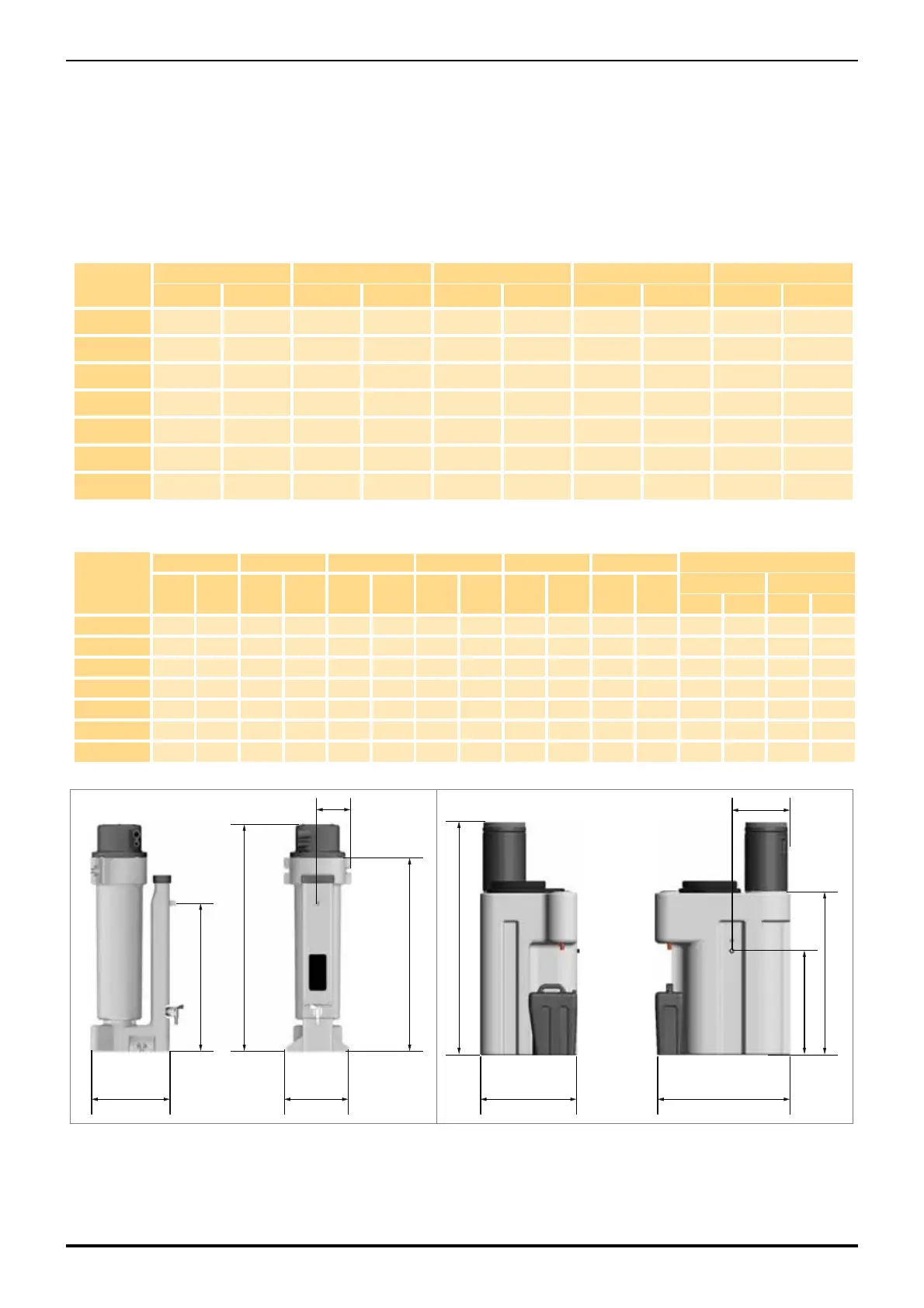

2.1 Technical Specification
2.2 Weights and Dimensions
Model
Pipe Size Settlement Tank Capacity Maximum Pressure Minimum Temperature Maximum Temperature
Litres US G bar g psi g
o
C
o
F
o
C
o
F
ES2100
1 x 1/2”
1 x 1/4”
19mm
(3/4”)
- - 16 232 5 41 35 95
ES2150
1 x 1/2”
1 x 1/4”
25mm
(1”)
60 16 16 232 5 41 35 95
ES2200
1 x 1/2”
1 x 1/4”
19mm
(3/4”)
75 20 16 232 5 41 35 95
ES2300
1 x 1/2”
3 x 1/4”
25mm
(1”)
125 33 16 232 5 41 35 95
ES2400
1 x 1/2”
3 x 1/4”
25mm
(1”)
185 49 16 232 5 41 35 95
ES2500
1 x 1/2”
3 x 1/4”
25mm
(1”)
355 94 16 232 5 41 35 95
ES2600
1 x 1/2”
3 x 1/4”
25mm
(1”)
485 128 16 232 5 41 35 95
Model
Height (H) Width (W) Depth (D) (a) (b) (c) Weight
mm ins mm ins mm ins mm ins mm ins mm ins
Empty Full
Kg lbs Kg lbs
ES2100
842 33.1 250 9.8 315 12.4 550 21.7 135 5.3 720 28.3 6 13 24.5 154
ES2150
810 31.9 350 13.8 430 16.9 480 18.9 40 1.6 675 26.6 10 22 78.5 173
ES2200
805 31.7 350 13.8 450 17.7 480 18.9 55 2.2 675 26.6 12 26 93.5 206
ES2300
1195 47.0 500 19.7 800 31.5 500 19.7 308 12.1 750 29.5 27 59 159 350
ES2400
1195 47.0 650 26.6 800 31.5 500 19.7 322.5 12.7 750 29.5 36 79 217 477
ES2500
1535 60.4 700 27.6 985 38.8 700 27.6 425 16.7 1090 42.9 70 154 400 880
ES2600
1535 60.4 1000 39.4 1010 39.8 700 27.6 425 16.7 1090 42.9 97 214 550 1210
H
(a)
(c)
(c)
WD
(b)
H
WD
(a)
(b)
ES2100 ES2150 - ES2600
