Parker J Series User Manual

Parker Hannifin Corporation
Filtration and Separation Division
Oxford, MI

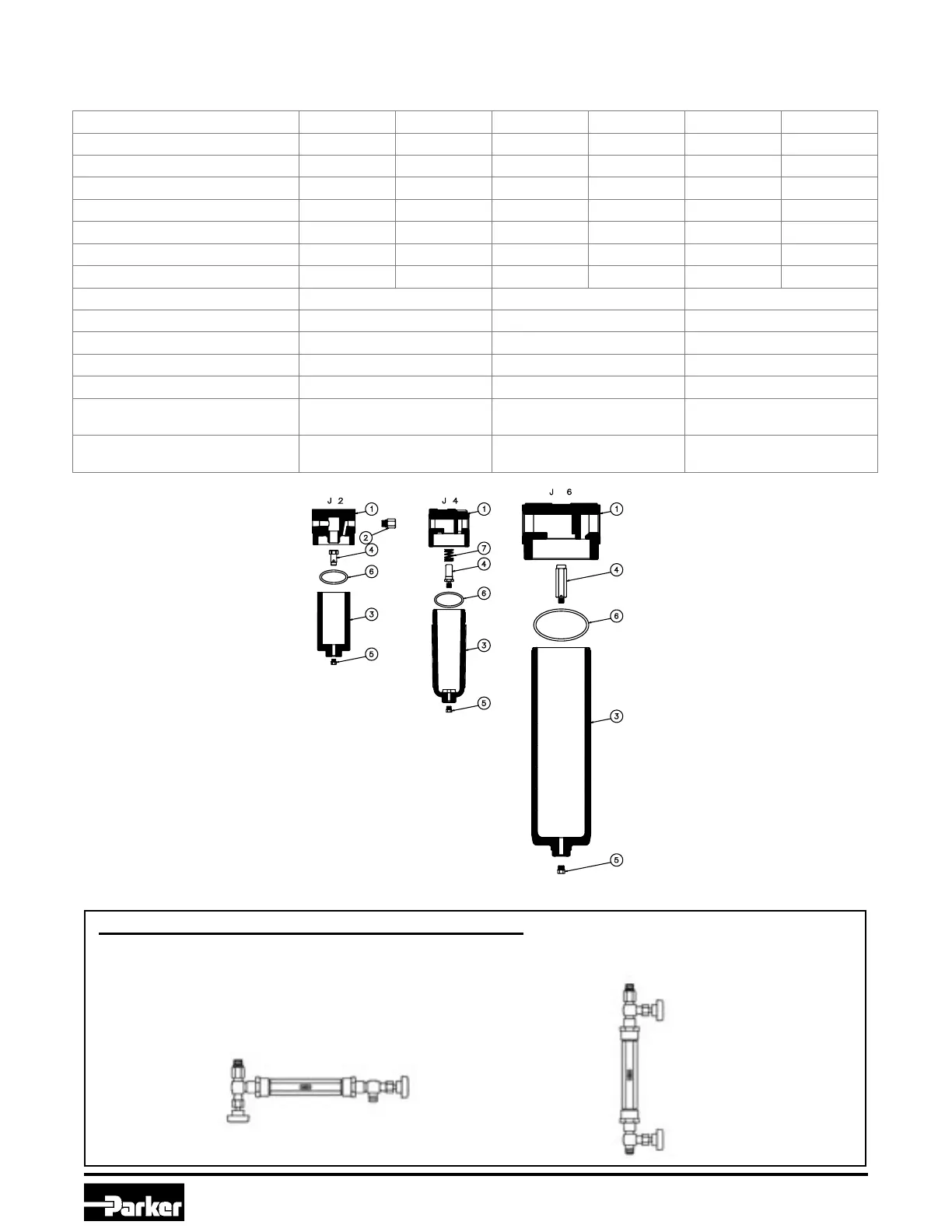

Assembly Drawing/Parts List
(J2SD, J2SL, J4SF, J4NF, J6SH, J6NH)
J-SERIES REPLACEMENT PARTS J2SD J2SL J4NF J4SF J6NH J6SH
1) HEAD
40874 40874 40868 41149 40862 41148
2) ADAPTER BUSHINGS
70143 70143 N/A N/A N/A N/A
3) BOWL
40877 41703 40871 40871 40865 40865
4) ELEMENT STANDOFF
41684 41606 42111 42111 42112 42112
5) **DRAIN PLUG (WITH O-RING)
70172 70172 70172 70172 70172 70172
6) O-RING (HEAD-TO-BOWL)
75073V 75073V 75074V 75074V 75075V 75075V
7) SPRING
N/A N/A 41082 41082 N/A N/A
GRADE 4 COALESCER
4CWC11-035 4CWC15-070 4CWC23-130
GRADE 10 COALESCER
10CWC11-035 10CWC15-070 10CWC23-130
PARTICULATE FILTER
3PWC11-035 3PWC15-070 3PWC23-130
CARBON ADSORBER
AWC11-035 AWC15-070 AWC23-130
WATER SEPARATOR
100WS11-035 100WS15-070 100WS23-130
DESICCANT CARTRIDGE W/
ACTIVATED ALUMINA
N/A 10JWA15-070 10JWA23-130
DESICCANT CARTRIDGE W/
MOLECULAR SIEVE
N/A 10JWM15-070 10JWM23-130
**If drain plugs are used, the filter must be depressurized before the housing can be drained.
OPTIONAL ACCESSORIES—HIGH PRESSURE DRAIN KIT
Finite
®
high pressure drain kits are designed to safely remove condensate from a high pressure compressed
gas system. Each fully-assembled kit is constructed of 316 Stainless Steel and includes two needle valves,
fittings, and a pipe reservoir. For more details, please refer to
Finite
®
New Product Bulletin (NP024).
Horizontal Drain Kit
Vertical
Drain
Kit
