General description
The illustrations are on the
fold-out page.
Extent of the delivery
Carefully unpack the appliance and check
that it is complete:
- Interchangeable cordless screwdriver
- Battery-charger
- 14 Bits, 25 mm
- Extension bit holder, 50 mm
- Utility belt
- Instruction manual

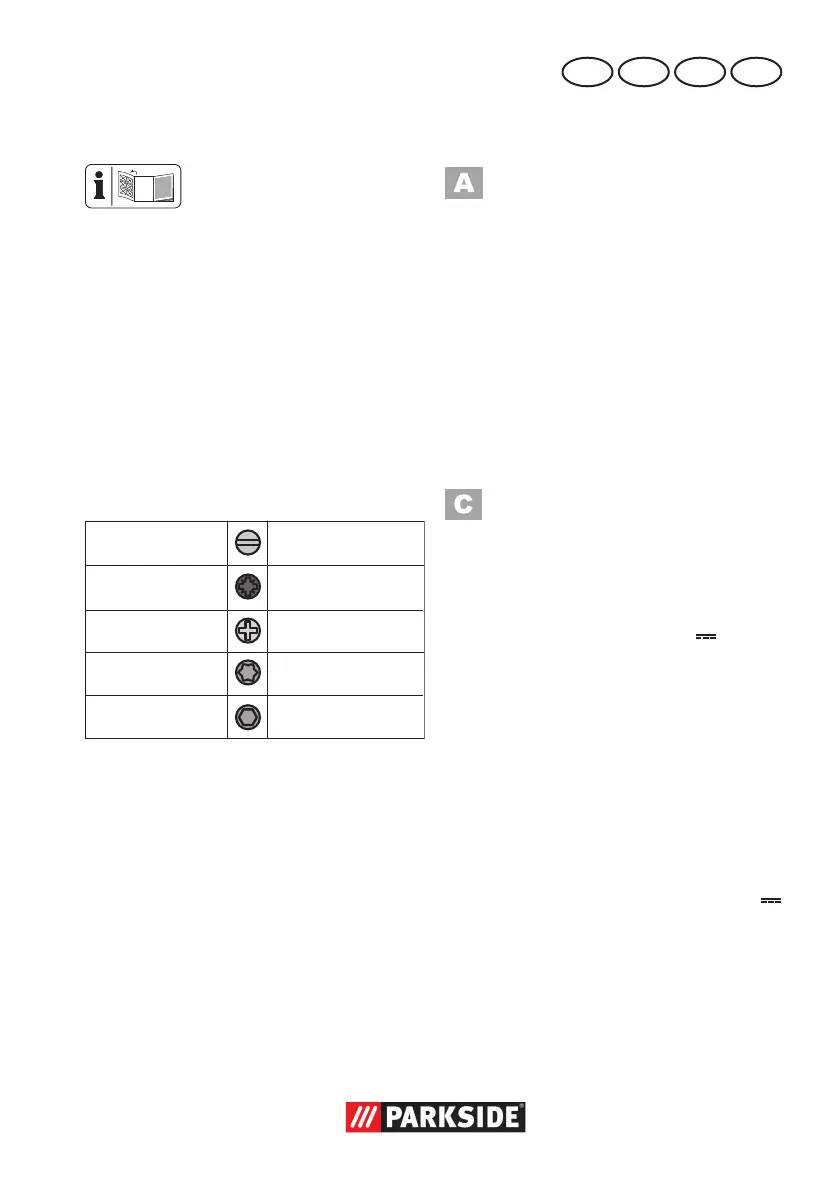

14 bits:
SL
PZ
PZ1 • PZ2 • PZ3
PH1 • PH2 • PH3
T15 • T20 • T25
H4 • H5
PH
T
H
4 • 5 • 6
Slot
No.
No.
No.
No.
No.
Cross
Cross
Torx
Hexagonal
Functional description
The interchangeable cordless screwdriver
clockwise/anti-clockwise rotation has a bit
changeable drum (can be tted 9 times
with 25 mm bits), a 6-point bit holder and
an LED work light.
Maximum torque of 7 Nm.
Overview
1 Transport safety
2 Bit
3 Bit holder
4 Slide of the interchangeable
cordless screwdriver
5 Battery Indicator
6 Charging socket (not visible)
7 LED working light
8 Direction of rotation switch
9 On/off switch
10 5 Exchange bits with holder
11 Battery-charger
12 Extension bit holder
13 Utility belt
14 Bit change drum
Technical data
Appliance
Motor voltage U ..........3,6 V ; 1.5 Ah
Idling speed (n
0
) ....................200 min
-1
Weight
(without battery charger) ..........0,48 kg
Sound pressure level
(L
pA
) ................... 62,2 dB(A); K= 3 dB
Sound power level
(L
WA
) ........................ 73,2 dB(A); K= 3 dB
Vibration (a
h
) ..... 0,198 m/s
2
; K= 1,5 m/s
2
Battery (Li-Ion)
Battery cells ..................................... 1
Nominal voltage ......................3,6 V
Capacity .................................. 1,5 Ah
Charging time ..........................ca. 3 h
Recharger ............ JLH030600600B
Nominal consumption ....................8 W
Uptake voltage
....................... 100-240 V~, 50-60 Hz
