Parrot MULTICAN - Citroën and Peugeot CAN Configuration

14
Citroën
A - CAN CoNfigurAtioN :

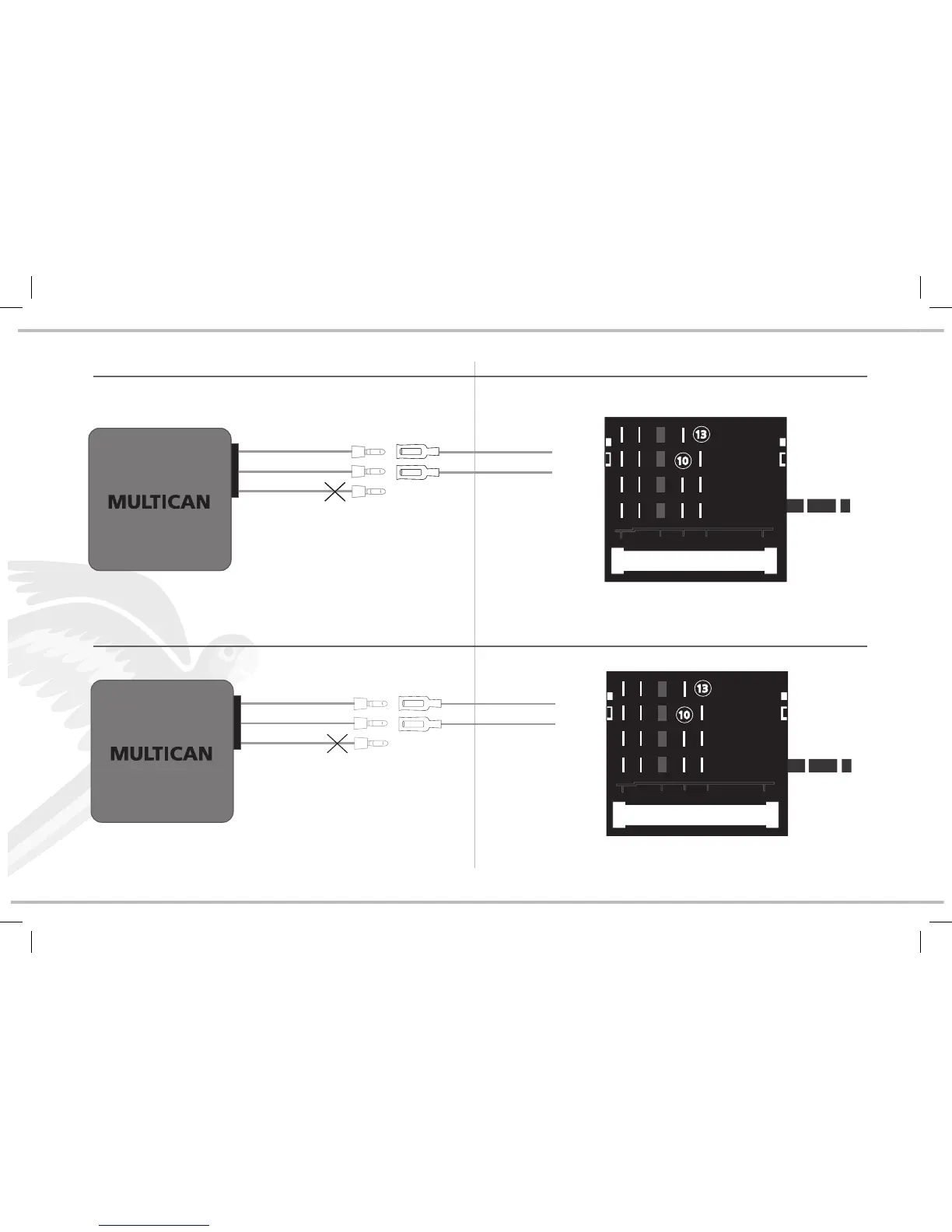

• Connect the green wire corresponding to CAN High to pin 10.
• Connect the white wire corresponding to CAN Low to pin 13.
Peugeot
A- CAN CoNfigurAtioN :
• Connect the green wire corresponding to CAN High to pin 10.
• Connect the white wire corresponding to CAN Low to pin 13.
Can Low
Can High
K-bus
Parrot
11
9
Audi Volsvagen opel
BMW
Mercedès
PSA
11
9
Audi Volsvagen opel
BMW
Mercedès
PSA
peugeot CoNNeCtor
CitroëN CoNNeCtor
Can Low
Can High
K-bus
Parrot
11
9
Audi Volsvagen opel
BMW
Mercedès
PSA
Can Low
Can High
K-bus
Parrot
