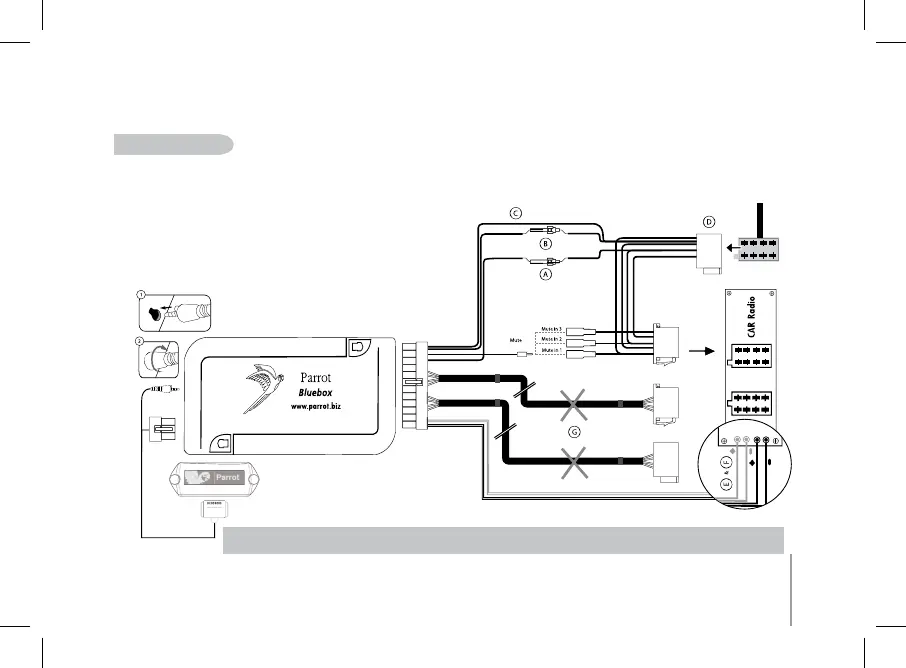

uSing line-in jaCkS
• A: Ignition 12V
• B: Constant 12V supply
• C: Ground
• D: Connection to the vehicle’s power supply
• E: Line-out 1
1: Line 1 +: white
2: Line 1 -: brown
• F: Line-out 2
1: Line 2 +: red
2: Line 2 -: black
• G: This wiring is not used.
Note: with this type of set-up, the original connectors of your vehicle’s audio system need not be removed.
