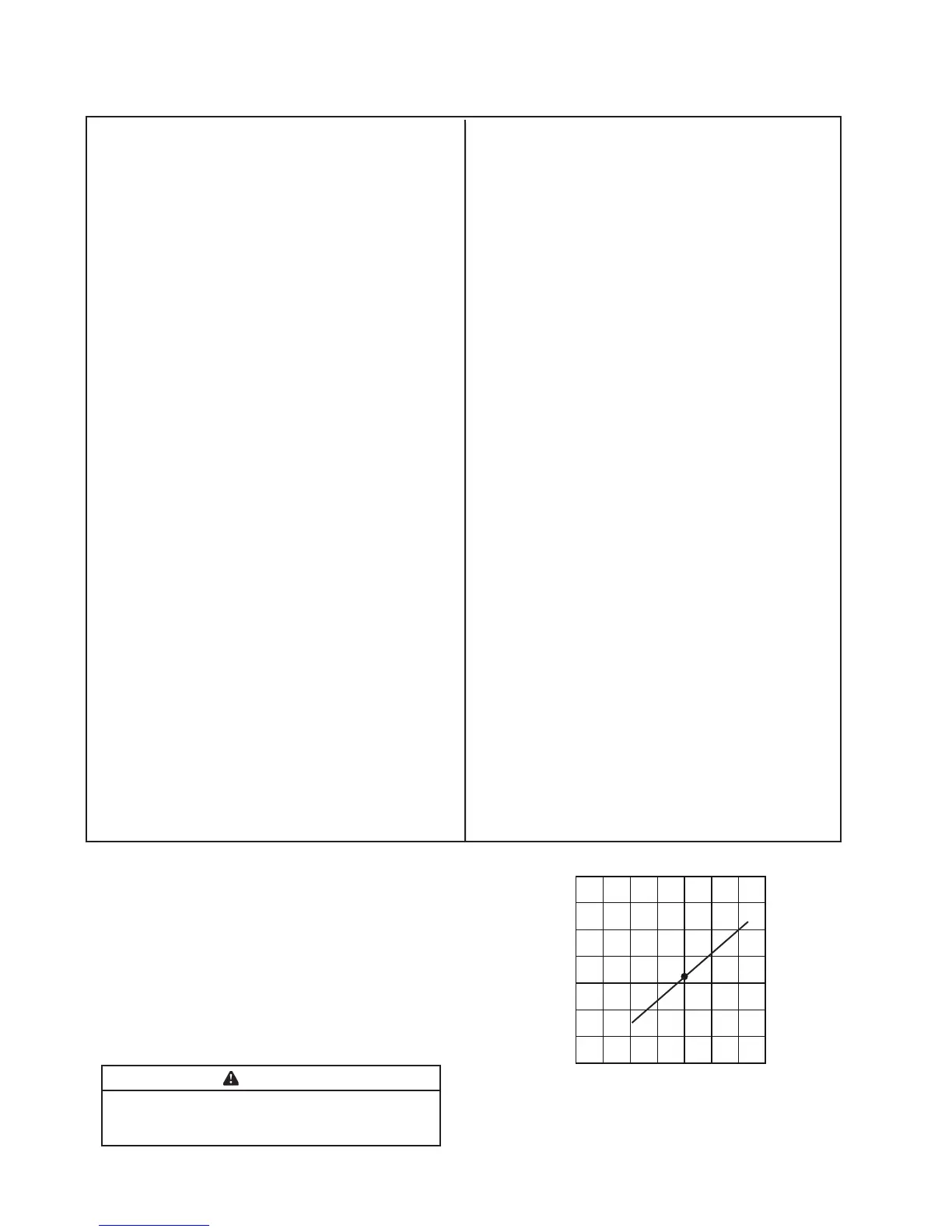

PARTS LEGEND Positive Placement F250S-PP, 500855
▲ 1 501043 1 T.H.S.C.S. 1/4 -20 x 1/2”
2 501752 1 Air Deflector
3 501300 4 S.H.C.S. 1/4-20 x 1-1/4"
4 501017 1 Cap
*5 500461 1 O-Ring
*6 092042 2 O-Ring
7 500407 1 Spring, Main Valve
*8 501001 1 Gasket, Cap
9 406041 1 Retaining Ring
10 500455 1 Upper Valve Piston
11 401946 1 Seal, Main Valve
*12 091208 1 O-Ring
*13 401950 1 O-Ring
14 500456 1 Lower Valve Piston
15 500454 1 Post
*16 095432 1 O-Ring
17 500453 1 Bumper, Post
18 402906 1 B.H.S.C.S.10-32 x 5/8"
*19 092971 1 O-Ring, Piston
■ *21 501061 1 Driver Blade
22 402011 1 Seal Sleeve
23 501283 1 Sleeve, Machined
*25 092235 1 O-Ring, Sleeve
*27 501002 1 O-Ring
*28 500866 1 Bumper
31 501286 1 Housing
29 501333 1 Label, Housing-Left
501334 1 Label, Housing -Right
30
33 501299 2 S.H.C.S. 1/4-20x 1”
34 091622 1 Reducing Pipe Bushing
35 501410 1 O-Ring
36 402669 1 Pin, Trigger
*38 501241 1 Probe
39 402668 1 Retaining Washer
40 097748 1 Spring, Valve Pin
41 097746 1 Valve Pin
42 071297 3 Roll Pin 1/8 x 1-1/8”
*43 092174 1 O-Ring, Valve Body
44 401958
1 Valve Body
45 501039 1 Sequential Trigger Assembly
46 502480 1 Nose
47 095417 4 Lockwasher 5/16
▲48 009016 4 S.H.C.S. 5/16-18 x 1"
49 501006 1 Spring, W.C.E.
50 500849 1 Upper W.C.E.
51 404800 1 Washer, W.C.E.
52 500850 1 Lower W.C.E.
*53 501409 1 Probe Pin
54 500717 1 Nail Cover
55 500902 1 Follower
56 500783 1 3/16 Hex Key, Short Arm
57 501770 1 End Cap, Magazine-LF
58 501771 1 End Cap, Magazine-RT
59 500848 1 Latch
60 501046 1 Drum Pin Assembly
61 500513 1 Negator Assembly
▲63 501567 2 Screw 1/4-28 x 3/4"
64 500509 1 Front Bracket
65 501028 1 Spring, Latch
66 501360 1 Shoulder Screw #8
67 066840 1 S.H.C.S. 8-32 x 3/4"
68 404414 2 Flatwasher #8
69 404325 3 Stop Nut
70 500520 2 Wear Strip
71 500458 1 Warning Label
72 501137 1 Logo Label
20 500899 1 Piston
74 091618 1 S.H.C.S. 1/4-20 x 1/2”
75 501654 1 Magazine w/ Wear Strips
76 500525 1 5/16”-24, Lock Nut
1 Washer
79 501136 1 Nameplate
62 501500 1 Spring, Lever
78 501336 1 Shoulder Screw
24 500249 1 O- Ring
77
500779 1 Flange
*
Denotes Normal Wear Items
**
Make sure Warning Label (Part No. 500458)
is properly affixed. Replace if necessary.
Label available at no charge through the
Service Department.
▲
A
pply Loctite 242 (Blue) Part No. 093500
■
Apply Loctite Green Part No. 401491
➔
Denotes New Change
Note: For optimum performance Paslode recommends
the use of a 3/8” Male fitting.
WARNING
All parts must be periodically inspected and replaced if
worn or broken. Failure to do this can affect the tool’s
operation and present a safety hazard.
AIR CONSUMPTION CHART
AIR CONSUMPTION-SCFM FASTENER
AIR PRESSURE-PSIG
.082
404274
26
32 501219 1 End Plug, Housing
37 501590 1 Lever
80 501480 1 Fastener Useage Label
73 502563 1 5/16-24x7/8” B.H.C.S.
➔
.120
.110
.080
.090
.100
120
.060
.070
11010090807060
➔
➔
**
®
➔
➔
