XA25 Nominal Specications
Gain: 20 dB gain
Output power: 25 Watts rms @ 8 ohms
50 Watts rms @ 4 ohms

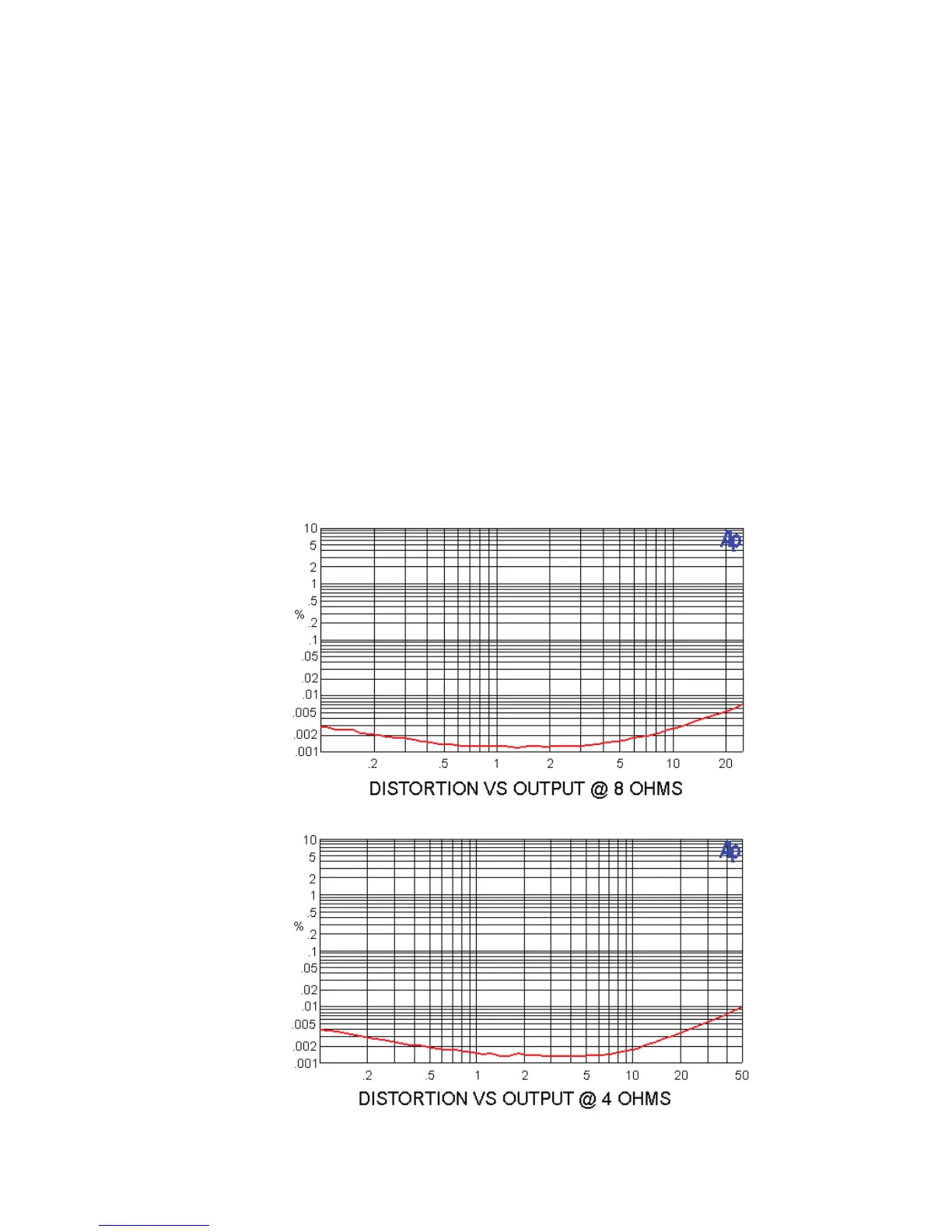

Distortion: 0.1% @ 25 Watts, 8 ohms, 1 KHz
Class A envelope: 50 Watt peak for 2, 4 or 8 ohm load
Bandwidth: DC to -2 dB @ 100 KHz
Noise: Less than 50 uV output, unweighted 20 to 20 KHz
Damping Factor: 500
Slew rate: 100 V/uS
Input Impedance 47 Kohm
Peak Current: 10 Amp output (200 Watt peak into 2 ohms)
Protection: Shutdown at 10 amps output
Idle Power draw: 2.0 Amps @ 120 VAC (240 Watts)
Here are some pretty pictures:
