/5'
SERVICE elect ra 3000 A
ANLEITUNG INSTRUCTION INSTRUCTION INSTRUCCION

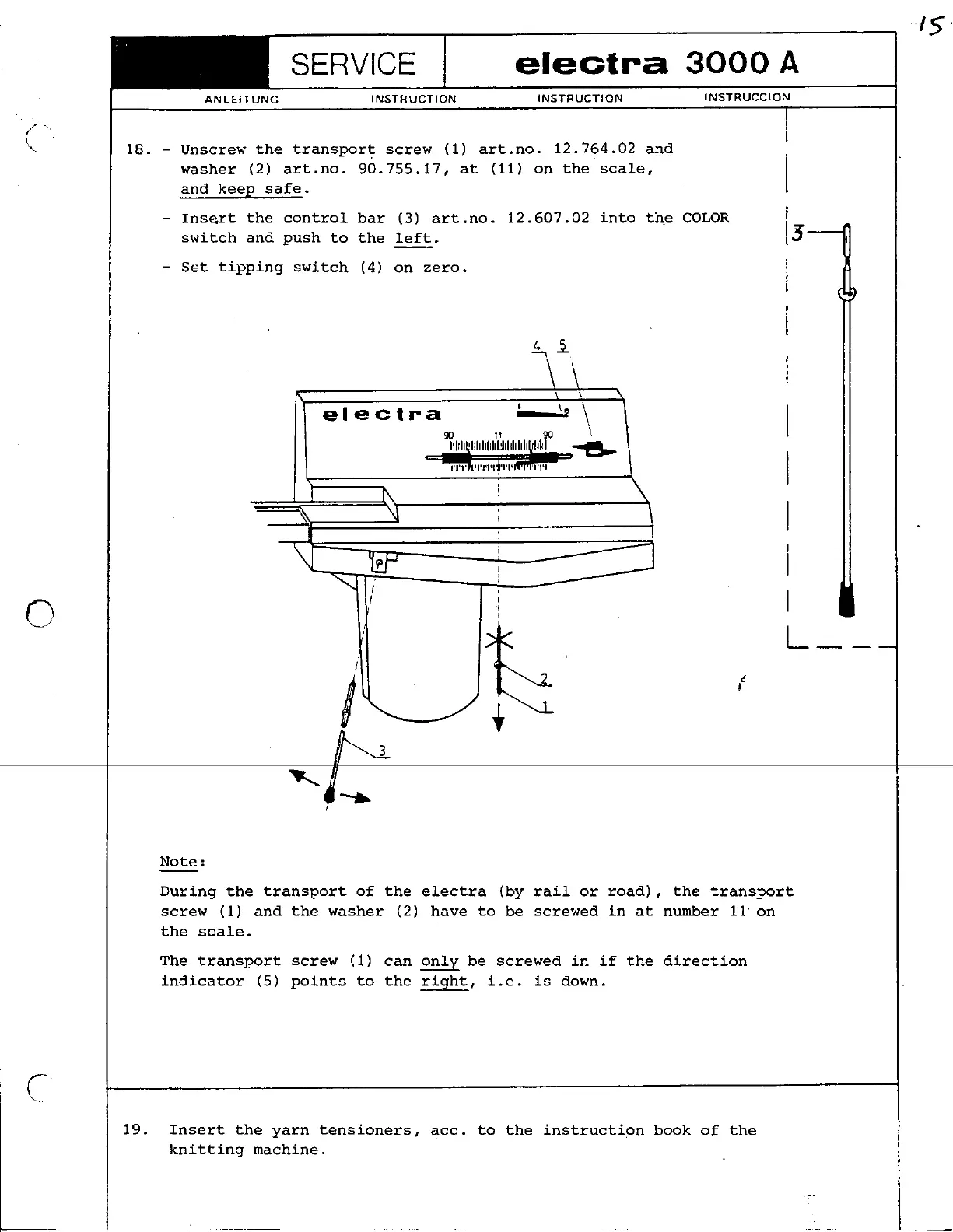

~ 18. -Unscrew the transpor~ screw (1) art.no. 12.764.02 and
wiisher (2) art.no. 90.755.17, at (11) on the scale,
Iand keep safe.
-Ins~rt the control bar (3) art.no. 12.607.02 into th.e COLOR
[switch and push to the ~. 3
-Set tipping switch (4) on zero. I
I
l. ..2.
I
e Ie c t ra L- ." \
I~ 11 90 \
1111 ;""'e...
'1'1 I
, I
: I
; I
i
0 '.: I
I
" k ~{ L --
.
1::
I
Note:
During the transport of the electra (by rail or road), the transport
screw (1) a:nd the washer (2) have to be screwed in at number 11 on
the scale.
The transport screw (1) can ~ be screwed in if the direction
indicator (5) points to the right, i.e. is down.
C
19. Insert the yarn tensioners, acc. to the instruction book of the
knitting machine.
';;
.~ _~1_-
