3. Installation and connection
3.1 Notes
The factory only supplies the heat pump. All other components must be provided by the user
or the installer.
Attention:
Please observe the following rules when installing the heat pump:
1. Any addition of chemicals must take place in the piping located downstream from the
heat pump.
2. Always place the heat pump on a solid foundation and use the provided rubber feet to
avoid vibration and noise.
3. Always hold the heat pump upright. If the unit has been held at an angle, wait at least
24 hours before starting the heat pump.
3.2 Heat pump’s location
Never install the unit in a closed room with a limited air volume in which the air expelled from
the unit will be reused, or close to shrubbery that could block the air inlet. Such locations
impair the continuous supply of fresh air, resulting in reduced efficiency and possibly
preventing sufficient heat output.

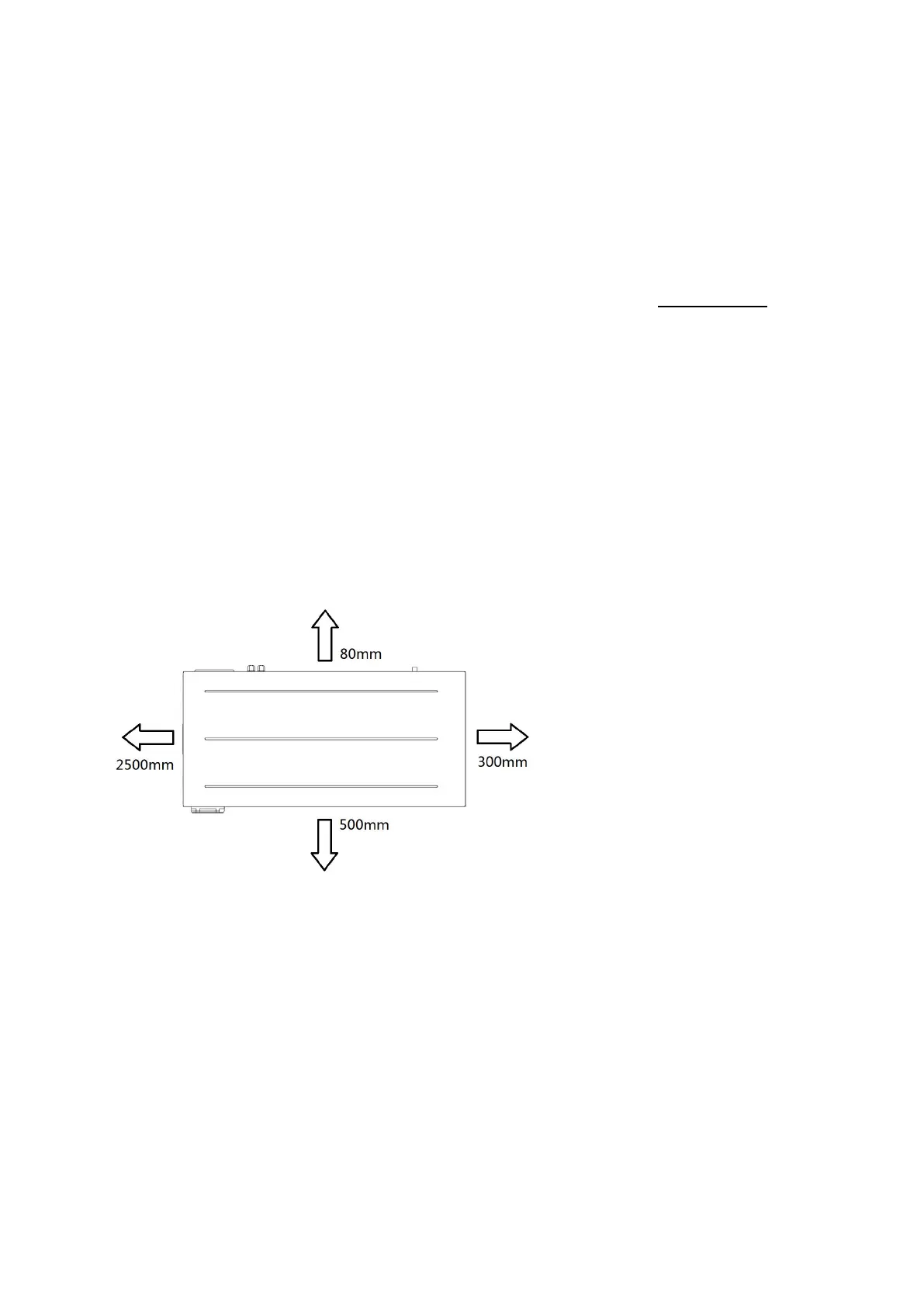

See the drawing below for minimum distances.
