To Console
Pin # Function Wire Color AWG
1. Nav Lts (Instrumentation) Grey 16
2. Nav Lts Grey 16
3. Anc Lt (Console) Grey/White 16
4. Anc Lt (T‐TOP) Grey/White 16 Pin C T‐Top Recept
5. Horn Orange/White 16
6. Spreader Lt Blue/Black 16 Pin A T‐Top Recept
7. Overhead Lts Blue/Green 16 Pin B T‐Top Recept
8. PANEL GROUND Black 16 Console Ground Bus
To Accessories Main Harness
Pin # Function Wire Color AWG
1. Bilge Brown 14
2. L/W‐1 Brown/White 14
3. RECIRC‐1 Red/White 14
4. L/W‐2 Brown/Yellow 14
5. RELEASE WELL Brown/Orange 14
6. RECIRC‐2 Red/Yellow 14
7. BUBBLER Red/Orange 14
8. SALT WATER Brown/Green 14
9. FRESH WATER Brown/Black 14
10. LIVEWELL LTS Blue/White 16
11. COCKPIT LTS Blue/Red 16
12. COMPARTMENT LTS Blue/Black 16

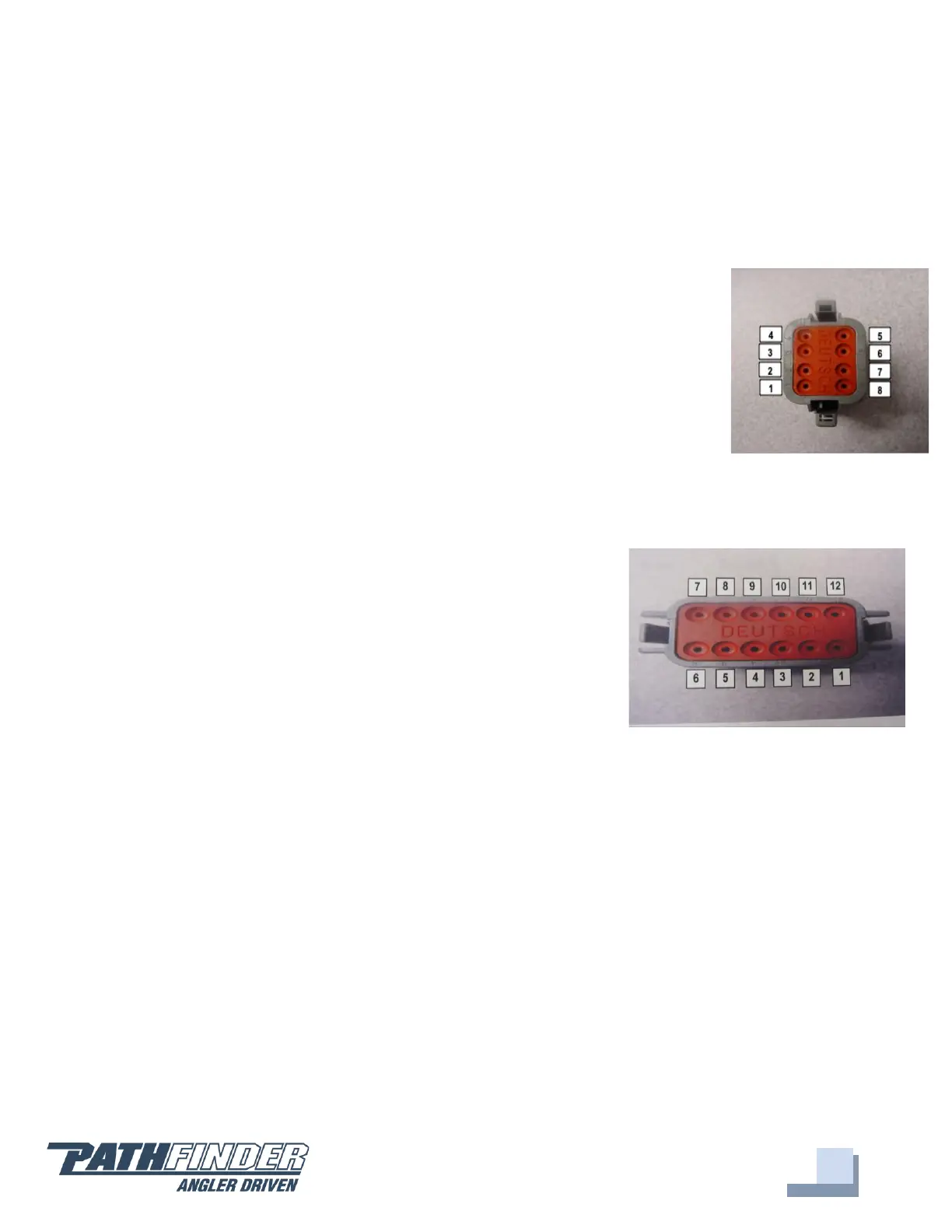

8 PIN Plug
Pin # Function
1 ACC‐1
2 ACC‐2
3 ACC‐3
4 ACC‐4
5 ACC‐5
To Next Page
