FUEL-WATER SEPARATOR & DRAIN PLUG

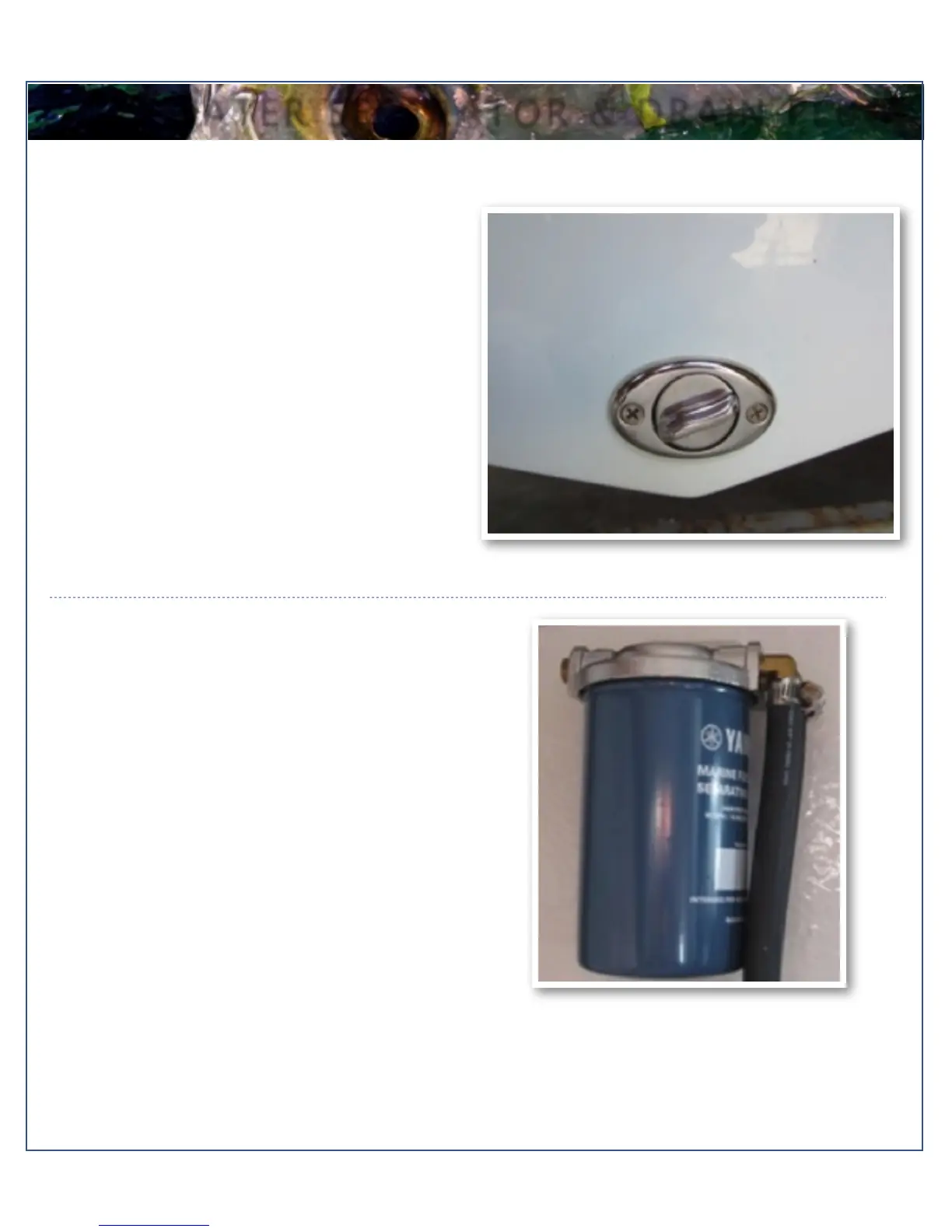

Fuel/Water Separator (above)
Fuel-Water Separator
Each Pathfinder 2200 Tournament Edition is
equipped with a fuel water separator to ensure
maximum performance and protect the
outboard engine from contaminated gasoline.
The fuel separator is a metal, cylindrical unit
secured to the transom section of your
starboard aft rigging box.
The fuel separator can be checked by removing
it from the mounting bracket in the rigging
locker and dumping it into an approved waste
collection device. If there appears to be an
excessive amount of water, the filter component
should be changed. See your authorized
Pathfinder dealer for replacement parts.
Maintenance Note
In addition, the fuel separator should be changed as part of routine maintenance at 20, 50 and 100 hours checks.
Garboard Drain Plug
The garboard drain plug is the small metal plug located at
the lowest point on the hull, at the bottom of the transom
right above the keel. The drain has been designed to so
that it can be loosened by hand while the hull is out of the
water for draining. This allows the plug to stay in contact
with the surrounding frame so you’ll never misplace or
lose it. You can completely remove the insert by pulling
back and continue turning in a counter clockwise motion.
It is manufactured with a rubber seal in place to ensure
you bilge is watertight. Always make sure before putting
the boat in the water that this plug is hand tightened
firmly. Excess water in the bilge may be an indication of a
problem with this plug or the automatic bilge pump. Refer
to page 10 of this Owner’s Manual for information on your
boats bilge system.
