SmartNode 4950 rear panel 16
SmartNode 4950 User Manual 1 • General information
SmartNode 4950 rear panel
The SmartNode 4950 rear panel ports are described in table 4.

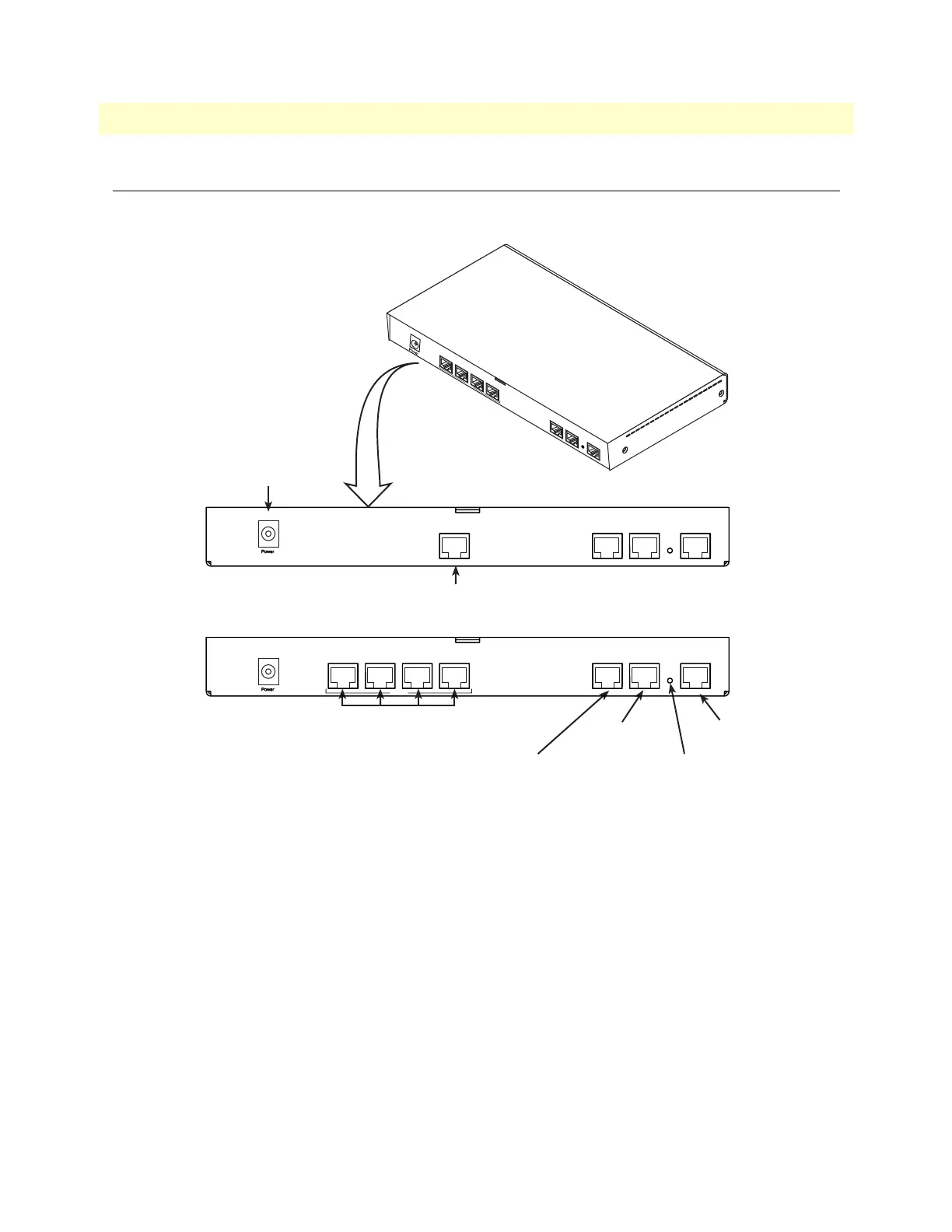

Figure 2. SN4950 rear panel
Power
T1/E1
PRI ports 0/3–0/0
SN4950/1E30V
SN4950/4E120V
ETH 0/0
10/100/1000Base-T port
RESET
button
Console
RS-232 port
ETH 0/1
10/100/1000Base-T port
RS-232
ConsoleETH 0/0ETH 0/1
Reset
0/00/10/20/3
T1/E1
RS-232
ConsoleETH 0/0ETH 0/1
Reset
0/0
T1/E1
T1/E1
PRI port 0/0
