PAX Eos 100 - Page 11

11
Pax Eos 100
Pax Eos 100H
[1]
[6]
[7]
[8]
[9]
[10]
[11]
[5]
[12] [4] [13]
[5]
[12] [4] [13]
[6]
[7]
[8]
[9]
[10]
[11]

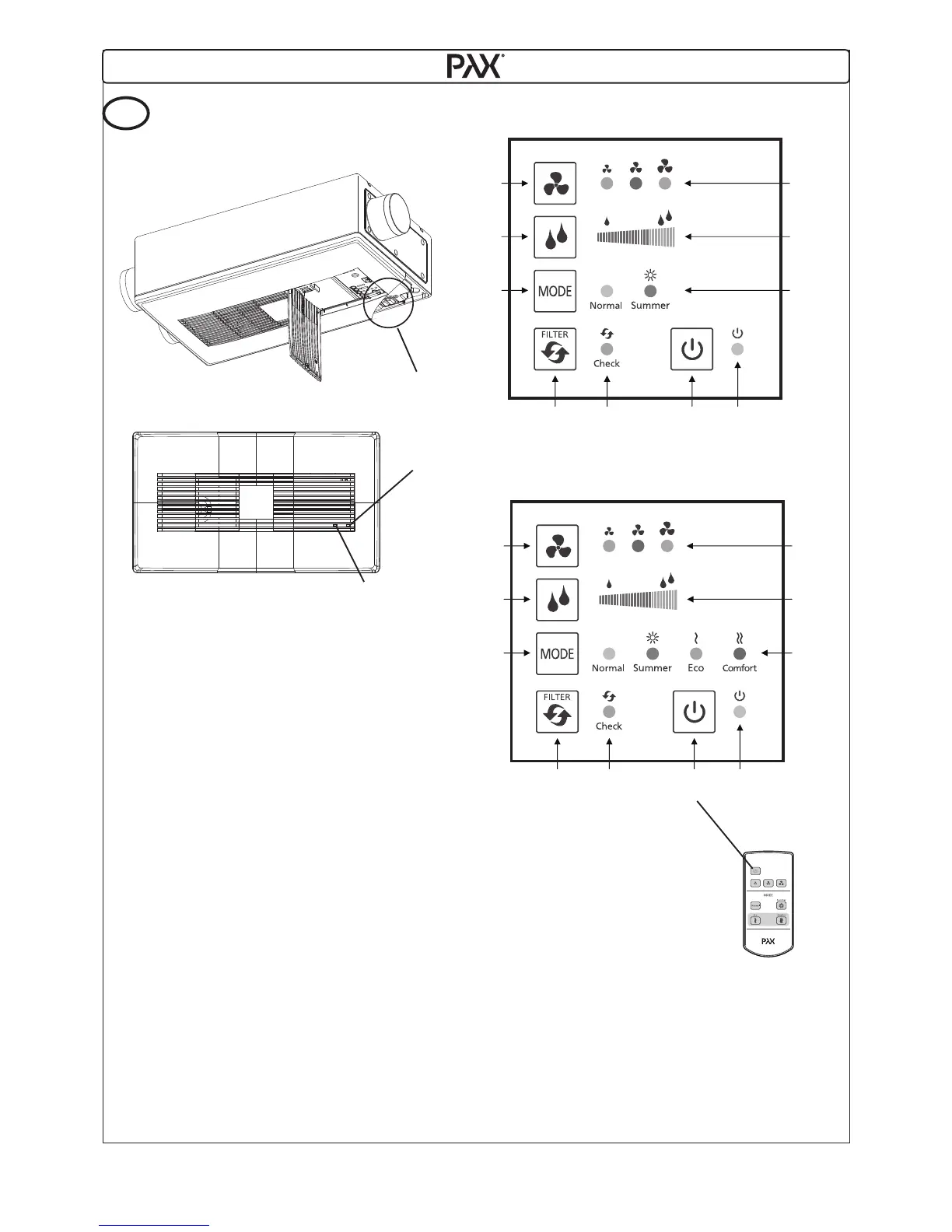

Control panel & Remote Controll
[3]([12])
[1] Main power switch (on/o)
[2] Indication, start and standby (green)
[3] Indication, filter maintenance (orange)
[4] Start and Stand by button.
[5] Filte Maintenance (reset button)
[6] Button, setting air flow (3 step)
[7] Button, setting moisture sensitivity (9 step)
[8] Button, choice of Mode location
[9] Indication, preset airflow
[10] Indication, selected moisture sensitivity
[11] Indication, selected mode.
[12] Indication, filter cleaning (orange light)
[13] Indication, operation (green light)
S GB
- When the unit is in standby, you can not perform any
settings.
- Settings with remote control and control panel can be
performed after the unit is started with button 4.
- If no settings are done, disappears the indicating lights
after 10 seconds.
(Display lights up only when manually
setting on the control panel.)
[2]([13])
Name of each parts
