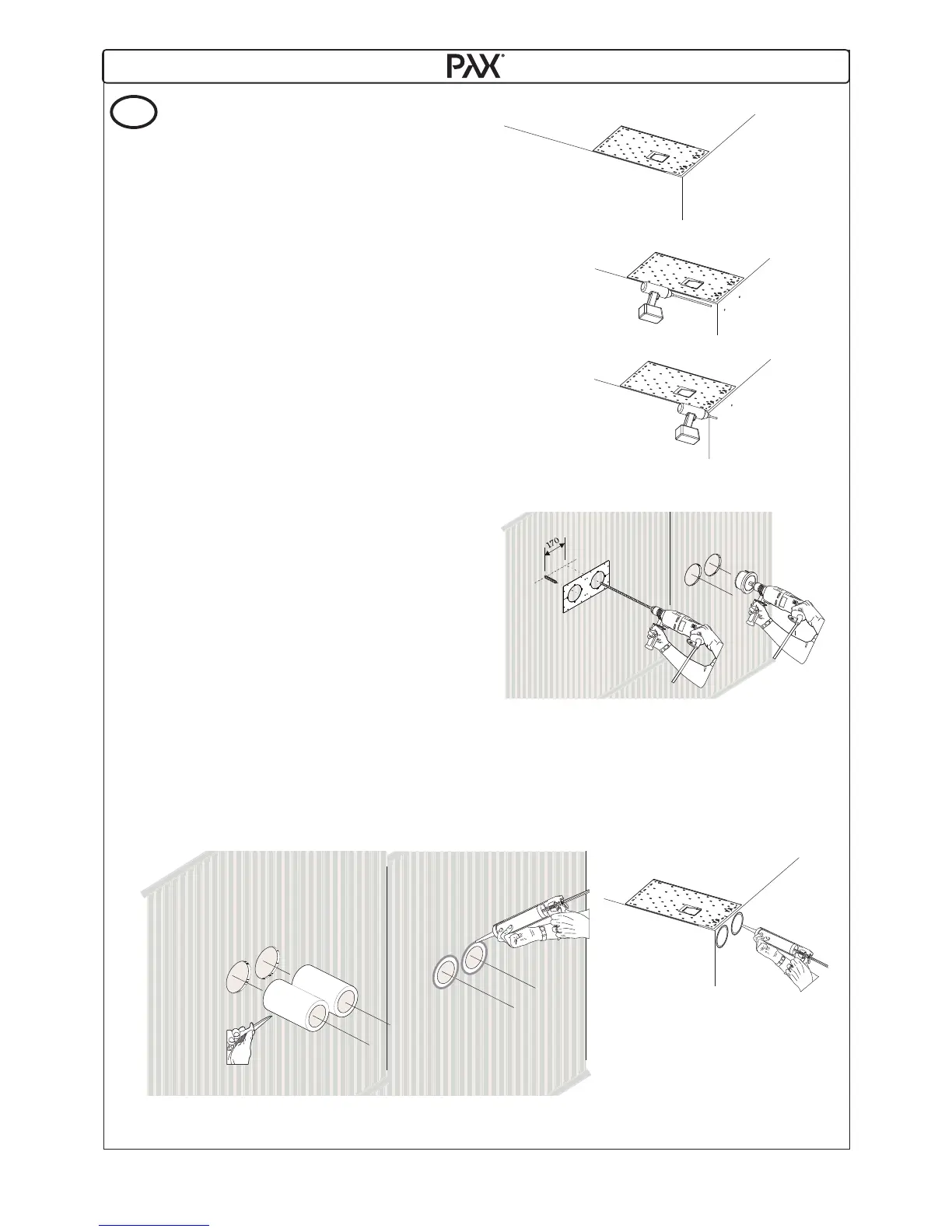

Installation.
[3] Fix the mounting plate under ceiling by 6 screws.
[4] Drill two small holes in the inner wall marked by
drilling template.
[5] Drill a hole through the wall with a long narrow drill.
(be sure to drill straight in both wave and vertically)
[6] Then use the template holes on the
outside of the wall to mark the second
hole position.
This will make you a safer positioning
of markers to use hole saw.
Next make up the larger holes D = 146 mm
(holes adapted for Pax eos isolated channels)
by sawing through the wall from both
inside and outside.
Isolated channels described below is an accessory for Pax Eos.
[7] Set isolated channels in the holes for fresh air and exhaust air,
the channels can be cut in the right in length with a knife.
Seal the space between the wall and the channel by caulking.
[4]
[5]
GB
UK
[3]
[6]
[6]
[7] Outdoor Indoor
