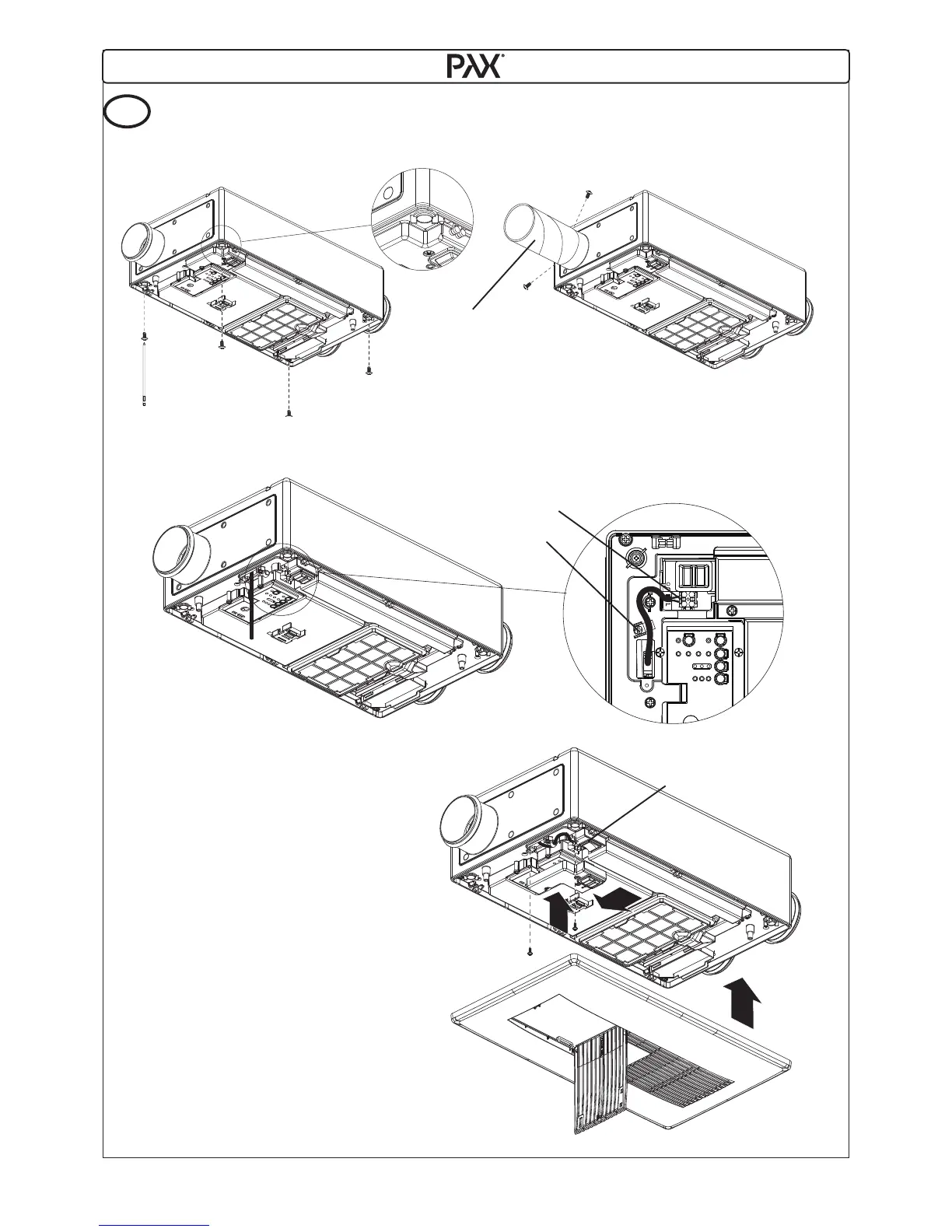

Installation.

[16] Fix the unit with 4 screws in the

mounting plate.

Use the attached long bit

200mm PH2.

[19 Replace the terminal box cover.

Turn on the main switch.

Then push the front panel on place

and lock the panel with lever.

[17] Install the duct to the SA adapter and ﬁx

the duct and adapter with supplied screw.

[18]Cut and strip the cable to length, connect the cable to the N and L in the

terminal and ﬁt the strain relief.

Terminal

Main switch

Strain relief

Use the duct more

than 1.5m.
