PayRange | BluKey Select™ Reference Manual
6/29/2021 Page 14 | 21

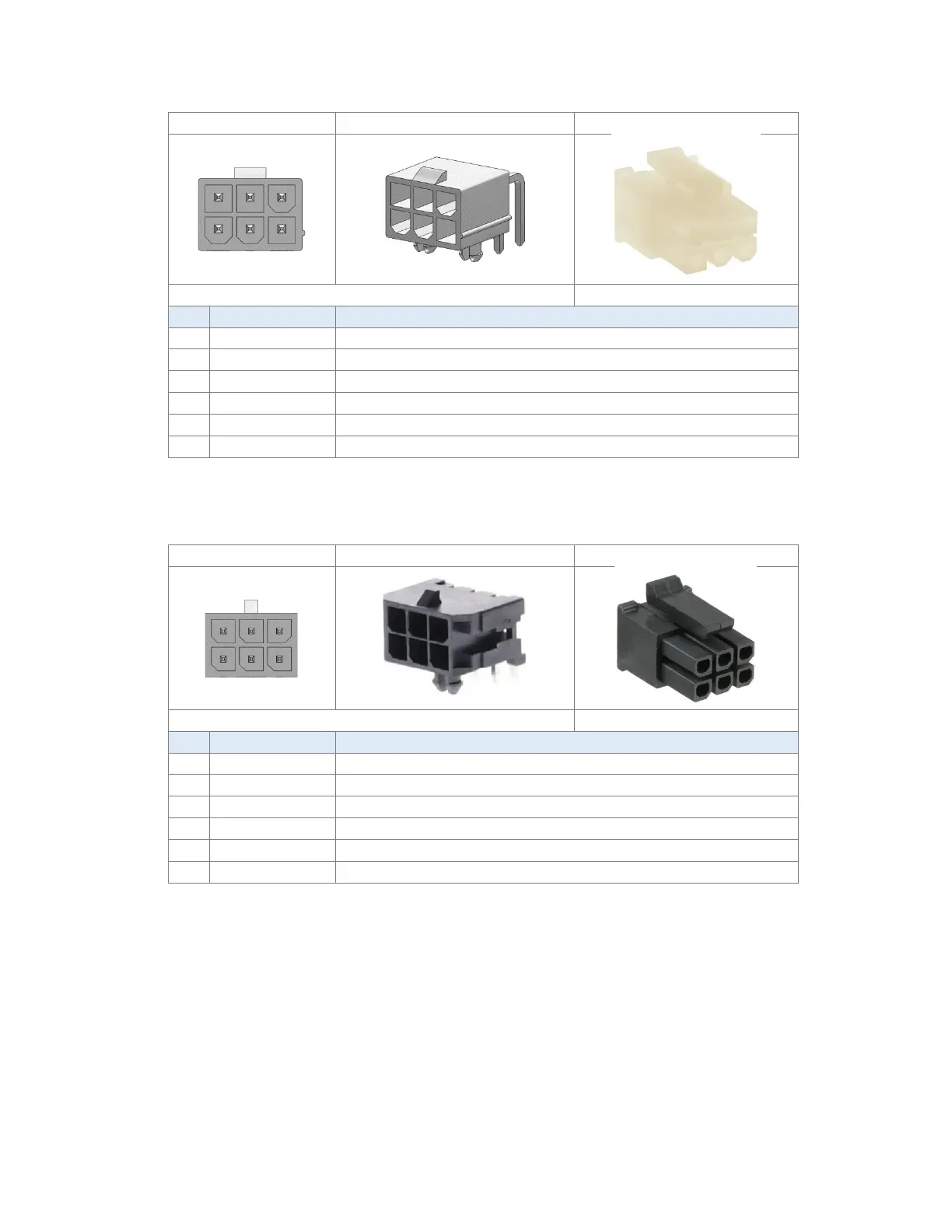

“CARD” Connector
BluKey Select
Cable / Mating part
Molex 0039301060 (Mini-Fit Jr)
Molex 0039012060
Pin
Name
Notes
1
MDB_OUT
MDB power supply (pass through from MACHINE)
2
MDB_GND
MDB power supply common
3
(NC)
4
VMC_RXD
MDB VMC receive data (BKSelect input)
5
VMC_TXD
MDB VMC transmit data (BKSelect output)
6
VMC_GND
MDB data common
c. “CONF” Connector (6-pin)
“CONF” connector is provided to select Keypad harness configuration.
“CONF” Connector
BluKey Select
Cable / Mating part
Molex 0430450601 (Micro-Fit)
Molex 0430250600
Pin
Name
Notes
1
CONF0
Config input
2
CONF1
Config input
3
CONF2
Config input
4
CONF3
Config input
5
3V3_OUT
3.3V output
6
GND
Ground
d. “KEYPAD” Connector (24-pin)
“KEYPAD” connector is provided for Keypad harness.
