PayRange BluKey Select - RF Specifications

PayRange | BluKey Select™ Reference Manual
6/29/2021 Page 13 | 21
2. Determined according to JEDEC Standard JESD22-C101, Field-Induced Charged-Device Model
Test Method for Electrostatic-Discharge-Withstand Thresholds of Microelectronic Components.
3. Determined according to JEDEC Standard JESD78, IC Latch-Up Test.
RF Specifications
Symbol
Description
Min.
Max.
Unit
Notes
F
RF
RF Frequency range (Bluetooth 4.1)
2402
2483.5
MHz
P
RFO
RF Output power
4.91
dBm
S
RFI
RF Sensitivity (at 0.1% BER)
TBD
dBm

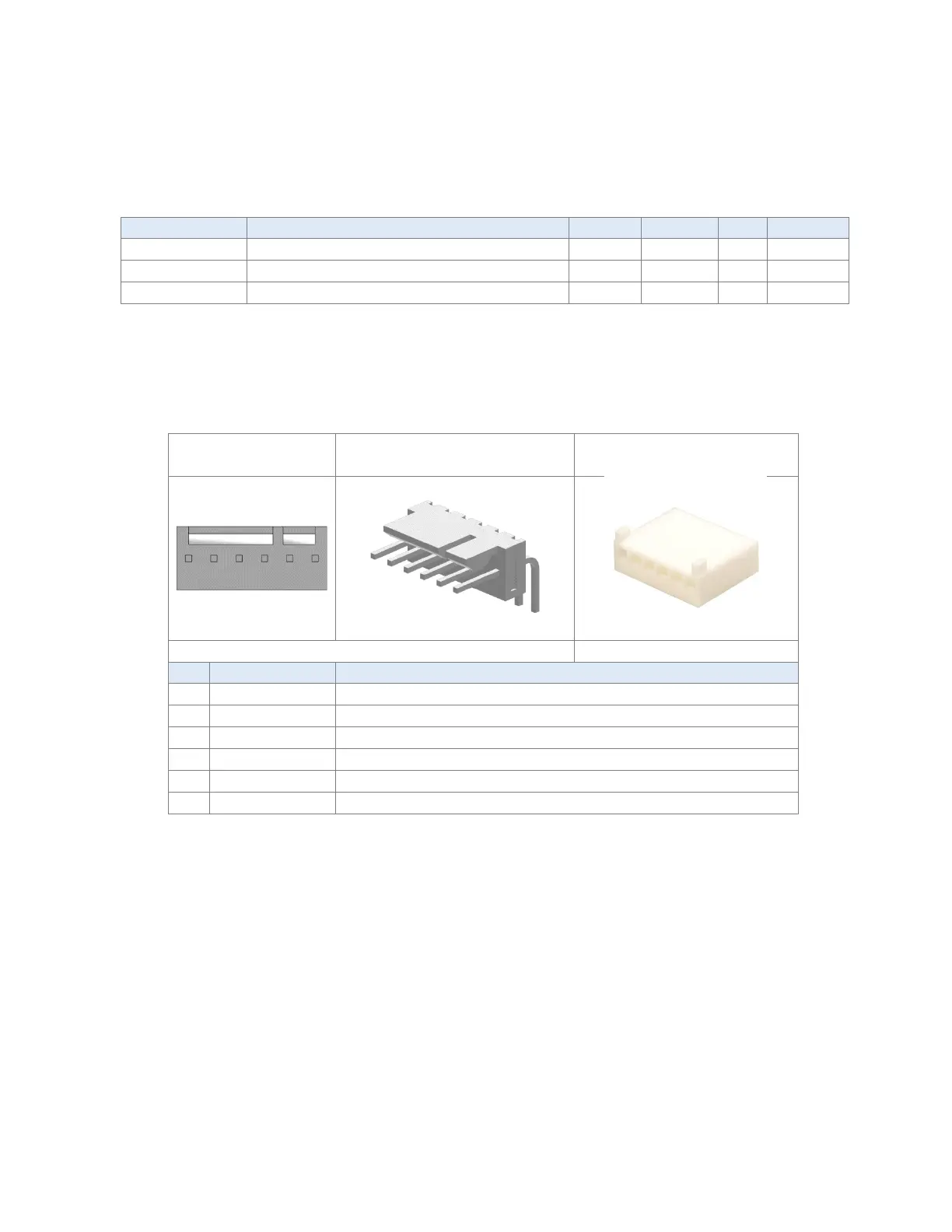

Connector Pinouts
a. “MACHINE” (MDB in) Connector (6-pin)
“MACHINE” connector is suitable for powering BluKey Select from 24V AC, 12VDC and other
low-voltage power supplies and has inputs for low-voltage signals.
“MACHINE”
Connector
BluKey Select
Cable / Mating part
Molex 22-05-3061 (KK254)
Molex 0022013067
Pin
Name
Notes
1
MDB_COM
MDB data common
2
MDB_TXD
MDB transmit data (BKSelect input)
3
MDB_RXD
MDB receive data (BKSelect output, Sniff input)
4
(NC)
5
MDB_GND
MDB power supply common
6
MDB_V
MDB power supply
b. “CARD” (MDB out) Connector (6-pin)
“CARD” connector is to support additional card reader.
