9. Dimensions & Mounting
The majority of the Vending Machines have a provision for installing Payment Terminals.
The dimensions of the P6X Terminal series are based upon the EVA (European Vending
Association) standard.
Device opening
Mounting a P6X terminal series requires a device opening that complies to the EVA EPS –
Standard door model measurements (Fig. 19).

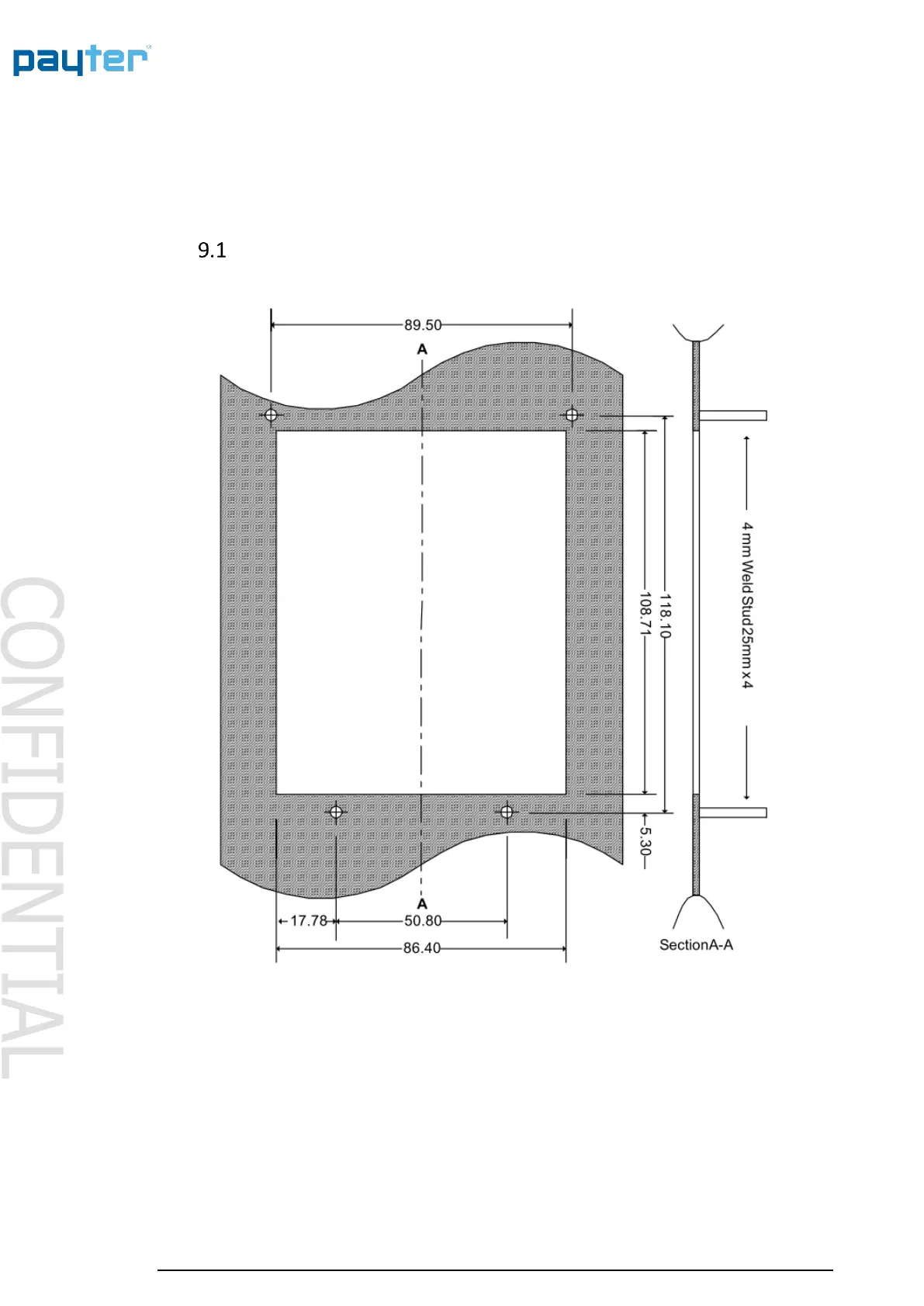

Fig. 19 – Dimensions of opening and weld studs(mm)
All Dimensions [mm] +/- 0.5mm
If no weld studs are available an optional mounting frame, with weld studs, can be ordered. Drill
mounting holes of 4 mm on the same positions as the indicated weld studs to allow mounting of
the frame.
