Front Panel Connector
The front panel connector (PANEL1) provides a standard set of
switch and LED connectors commonly found on ATX or micro-
ATX cases. Refer to the table below for information:

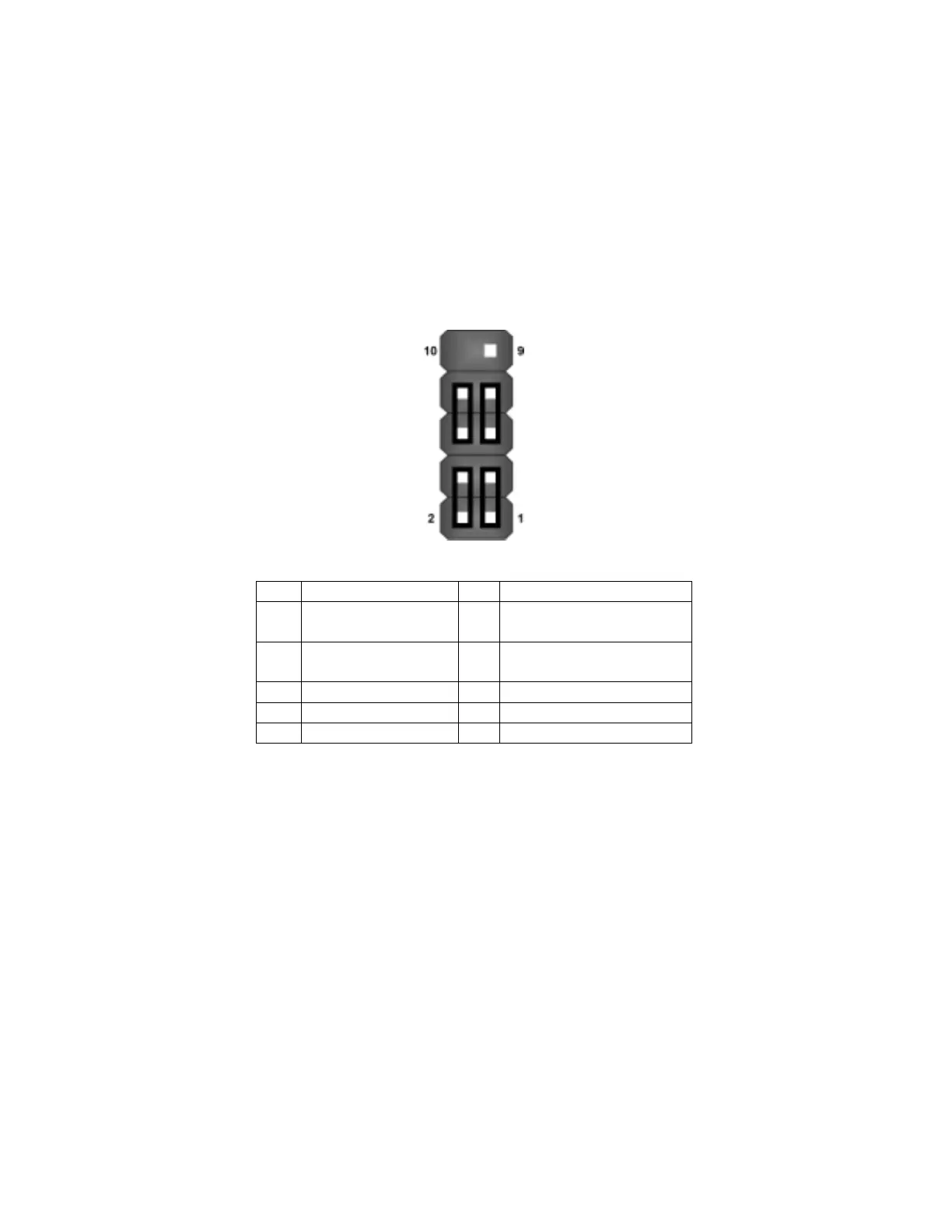

PANEL1
Pin Function Pin Function
1 Hard disk LED
(positive)
2 MSG LED [dual color or
single color (-)]
3 Hard disk active
LED (negative)
4 MSG LED [dual color or
single color (+)]
5 Reset Switch 6 Power Switch
7 Reset Switch 8 Power Switch
9 Reserved 10 No Pin
