Install the Mainboard
Install the mainboard in a system chassis (case). The board is an
ATX size mainboard. You can install this mainboard in an ATX
case. Make sure your case has an I/O cover plate matching the
ports on this mainboard.
Install the mainboard in a case. Follow the instructions provided by
the case manufacturer using the hardware and internal mounting
points on the chassis.

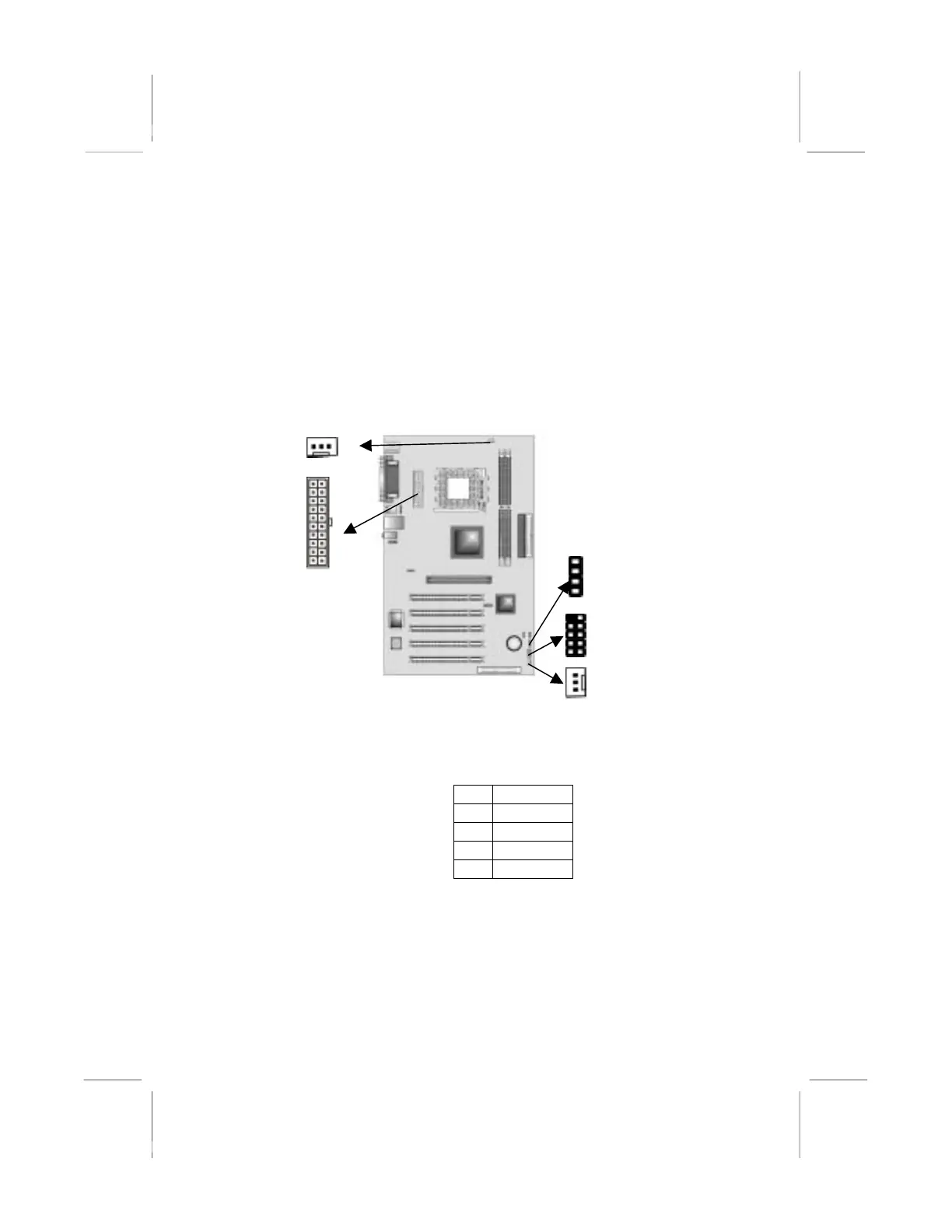

CPUFAN1
A
TX1
CASFAN1
SPK1
1
PANEL1
1
Connect the power connector from the power supply to the ATX1
connector on the mainboard. Connect the CPU cooling fan cable to
CPUFAN1, and the case cooling fan connector to CASFAN1.
Connect the case speaker cable to SPK1.
Pin Signal
1 Signal
2 NC
3 Ground
4 VCC
