PCL ACCURA D10 Tyre Inflator
www.pclairtechnology.com
General Specifications
Max inlet supply: 218 psi / 15 bar / 1500 kPa
Recommended supply: 10 psi / 0.7 bar / 70 kPa
above the max set pressure of Inflator
Max operating pressure: 145 psi / 10 bar / 999 kPa
Min operating pressure: 4 psi / 0.3 bar / 30 kPa
Display resolution: 1 psi / 0.1 bar / 10 kPa
Units of measurement: psi / bar / kPa / kg/cm
This Equipment also complies with the EC directives:
• 89/336/EEC (EMC directive)
confirmed by report No.10462/TR/1
• 73/23/EEC (LOW Voltage Directive)
as amended by 93/68/EEC
Installation
In order to provide a trouble free operation it is necessary to
connect the power supply from the main switchboard with a MAX
3amp fuse/RCB protection device. This must be grounded.
The circuit breaker should be marked as the disconnecting device
for the equipment.
The compressor producing the air should have the necessary
water and dirt filtration, to minimise accumulation of debris at the
inflator line filter strainer.
For efficient tyre inflation, ensure that the air supply is 10 psi, 0.7
bar or 70kpa above the intended maximum inflation range.
The wall-installed device has to be tightened to the wall by
means of 4 screws
Inside installations
Use 3 pin connecting plugs or 2 pin + Earth with the Earth Ground
wire installed on electrical infrastructure.
Outdoor installations
The unit can be connected to an earth conductor or conducting
metal work (metal pipe conduit or sheathing) which has equi-
potential bonding to the main Earthing point of the installation.
The unit is designed to run with the earth connection installed.
"According to Class 1 - Basic insulation in conjunction with
protective Earthing"
Please ensure the enclosed warning decal (part number 75005) is
prominently displayed on or near the unit.
Calibration & Accuracy
The accuracy of our digital units when released from our factory is
that:-
The maximum permissible error (MPE) = 0.08 bar
Each unit, before release, is checked and calibrated on test
equipment that has accuracy traceable to a UKAS Laboratory No.
0221 referenced to certificate 0029346.

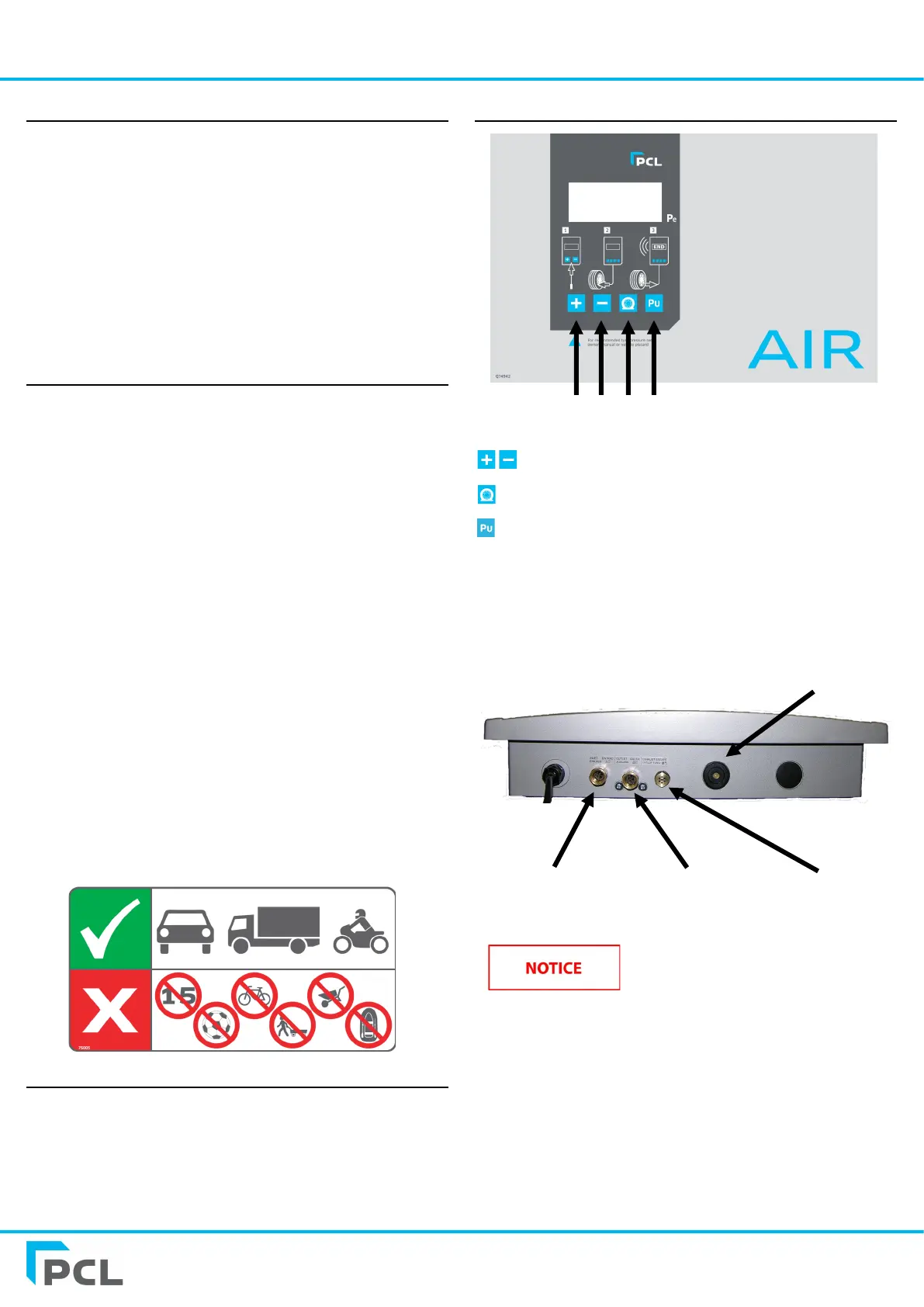

Control Panel
Key legend
Increase or decrease to set pressure
Start flat tyre inflation
Switch displayed pressure unit
Note:
Key legend above is for standard PCL decal, symbols used may
vary by individual part number but functionality remains the same
All units have a filter housing G1/4 inlet
and outlet ports.
It is recommended that when tightening
any hose connections to the unit, the user
selects two spanners. Hold the filter
housing with one spanner, to ensure it
does not spin, then tighten the hose
connection with the other
4 user touch type buttons
Buzzer
Air/N
2
supply port Tyre out port Deflate exhaust
G1/4 G1/4
