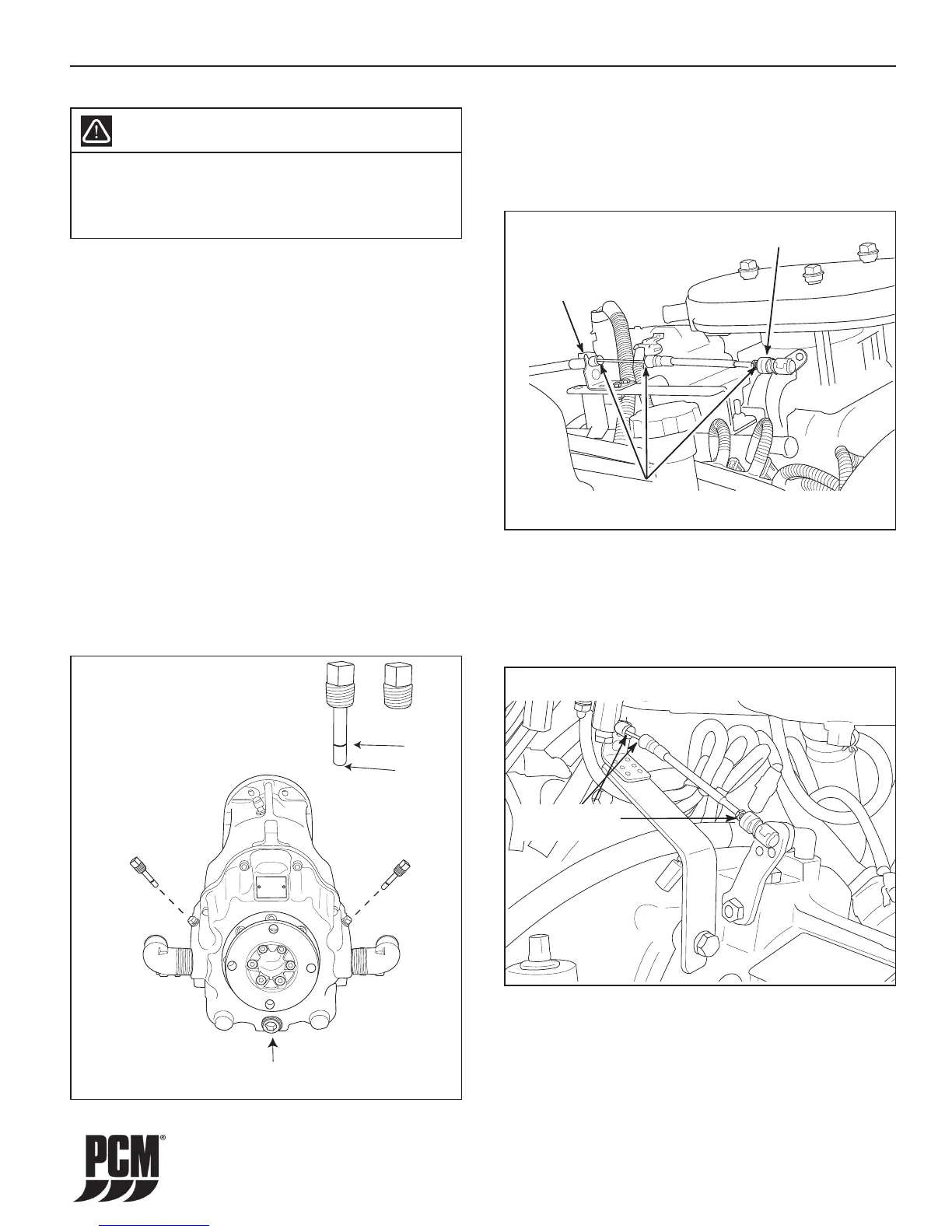

ENGINE MAINTENANCE - 11
LUBRICATION
Throttle Cable
Lubricate pivot points and exposed cable (Figure 11-5)
with SAE 30W-30 engine oil.
Figure 11-5 Typical Throttle Cable
Shift Cable
Lubricate pivot points and exposed cable (Figure 11-6)
with SAE 30W-30 engine oil.
Figure 11-6 Typical Shift Cable
CABLE
CLIP
BALL JOINT
LUBRICATION
POINTS
LUBRICATION
POINTS
Figure 11-4 Transmission Service Location
Oil Fill/Drain
Plug
Oil Fill/Drain
Plug
Raw Water
Drain Plug
PLEASURECRAFT
ENGINE GROUP
POWER PLUS
RATI
O
1.48
MADE IN USA
FULL
LOW
R041091
OR
All PCM Power-Plus “V” Drive transmissions are
designed to be ‘Maintenance Free’. Inspect fl uid
level after the fi rst 25 hours of use and annually
thereafter. Fluid should only be changed if evidence
of contamination is present. Use Mobiltrans SHC 50
synthetic transmission lubricant. PCM P/N: R190250.
1. Remove the drain/fi ll/dipstick plug from the
transmission. Wipe the dipstick clean and insert
into transmission - Do Not Screw the dipstick into
the hole. Remove and observe the fl uid level.
2. The fl uid level should be between the FULL
mark and the end of the dipstick. If a plug is
used, fl uid level should be to the bottom of
the threaded hole. If low, add the specifi ed fl uid
through the threaded hole to the proper level.
NOTE: The transmission fl uid is a very high viscosity, to
make adding fl uid easier, remove both fi ll plugs.
3. Replace the drain/fi ll/dipstick plug(s) and tighten
securely.
WARNING
Do not attempt to remove the transmission drain/
fi ll plug while the engine is running or while the
transmission is hot. Hot transmission fl uid could be
sprayed from the hole.
PCM Power-Plus V-Drive Transmission
