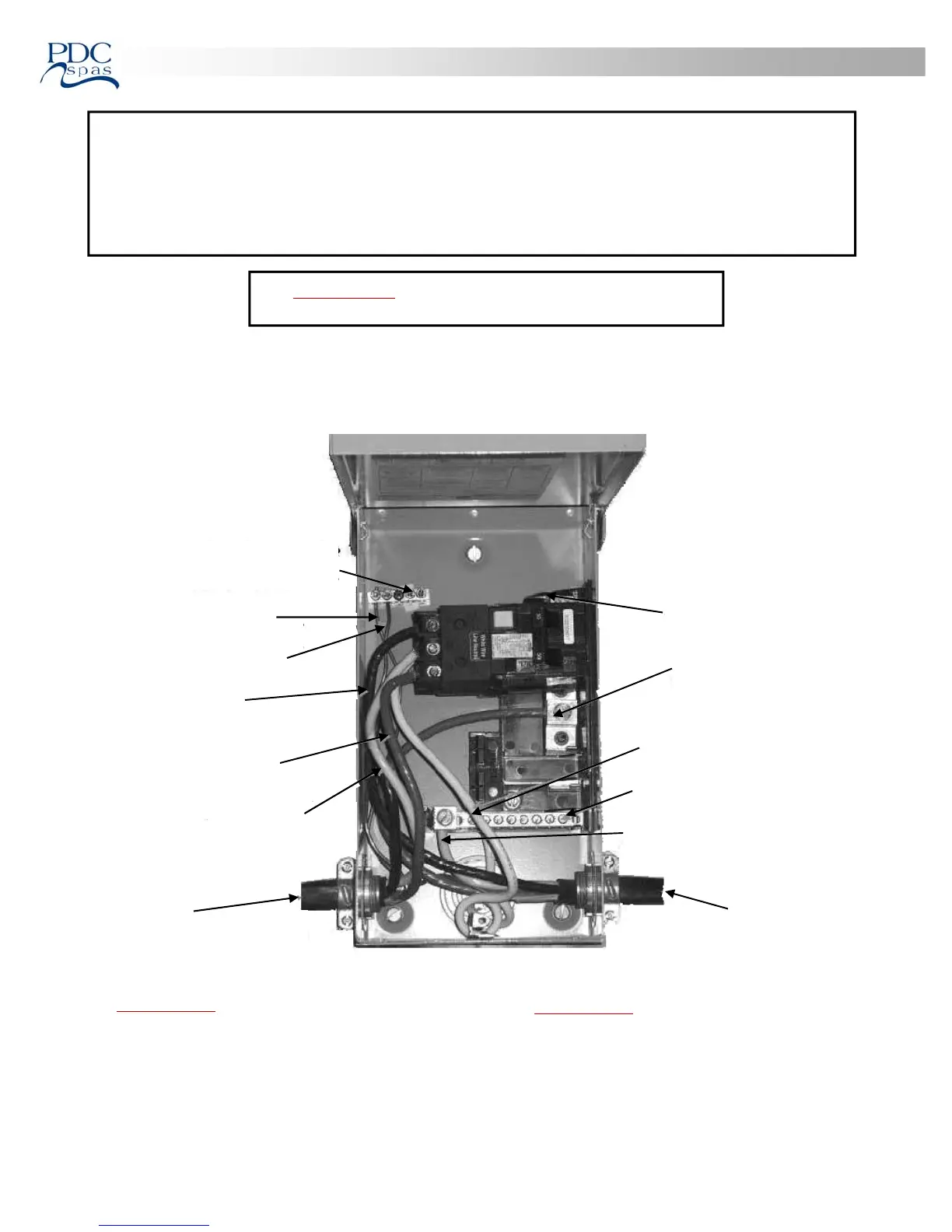

Typical Installaon Breaker Box
Class A 50 amp, 120/240 volt, GFCI
TO BE NOTED: Installaon of this GFCI Circuit
Breaker, including ampere sizing and choice of
wire must be made by a qualified electrician, in
accordance with the Naonal Electrical Code,
and all applicable federal, state and local codes
and regulaons in effect at the me of
installaon.
TO BE NOTED: The white neutral wire from
the back of the GFCI Circuit Breaker MUST be
connected to an incoming Line Neutral. The
internal mechanism of the GFCI requires this
Neutral connecon for proper GFCI funcon.
Ground to Swim Spa
Ground Input
Load 120V
(Black) To Swim Spa
Load 120V
(Red) To Swim Spa
Load Neutral
(White) To Swim Spa
To Swim Spa (OUTPUT)
Line (BLACK)
House Input
Line (RED)
House Input
Pig Tail (WHITE) From GFCI
Breaker Going to Neutral
Bar in Box
Load Neutral Bar
Line Neutral (WHITE)
House Input
From House (INPUT)
IMPORTANT:6 Gauge Copper Wire MUST Be Used
Test GFCI Monthly and Prior to Each Use.
ATTENTION ELECTRICIAN:
All PDC Swim Spa Units must be installed with an approved G.F.C.I. in accordance with all
applicable codes. Installaon of G.F.C.I. varies among those manufacturers. Follow each
manufacturer’s guidelines to ensure proper operaon and protecon of swim spa occupants.
This diagram is a “Typical” installaon to be used only as a reference for the installing electrician.
Ground Bar Aached
To Box Input & Output
Electrical Guidelines—State ‐Side Installaons
27
