PDW TPMS - Sensor Installation; External Sensor Installation; Internal Sensor Installation

2
a
b
c
d
External Sensor Battery Replacement Step
1. Remove the outside cover.
2. Remove the old battery.
3. Install the new battery using battery type CR1632.
4. Replace the outside cover
2.2
Internal Sensor Install (This step should only
be done by a tyre professional)
e
f
g
h

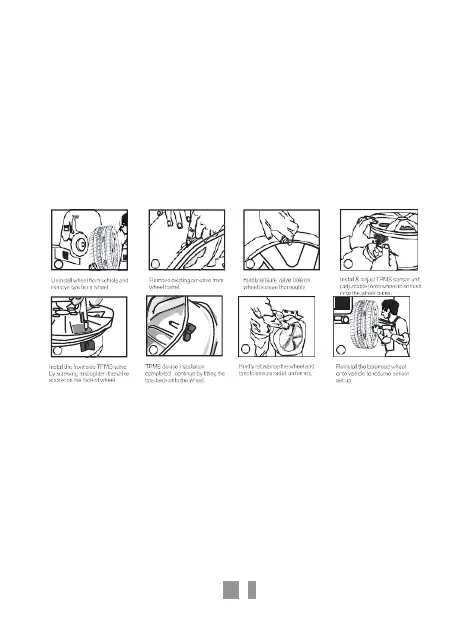

a. Remove the tyre from the wheel.
b. Remove the old valve from the wheel.
c. Ensure the valve hole area is clean.
d. Install the internal sensor
e. Lock the screw of the sensor on the outside of the wheel.
f. Product should be as fitted shown.
g. Replace tyre, check for leakage and balance the wheel.
h. Reinstall on car.
