usiny
less
channel
and
master
gain,
or
by
decreasing
the
power
amp’s
sensitivity
by
turning
down
the
power
amrfs
level
control,

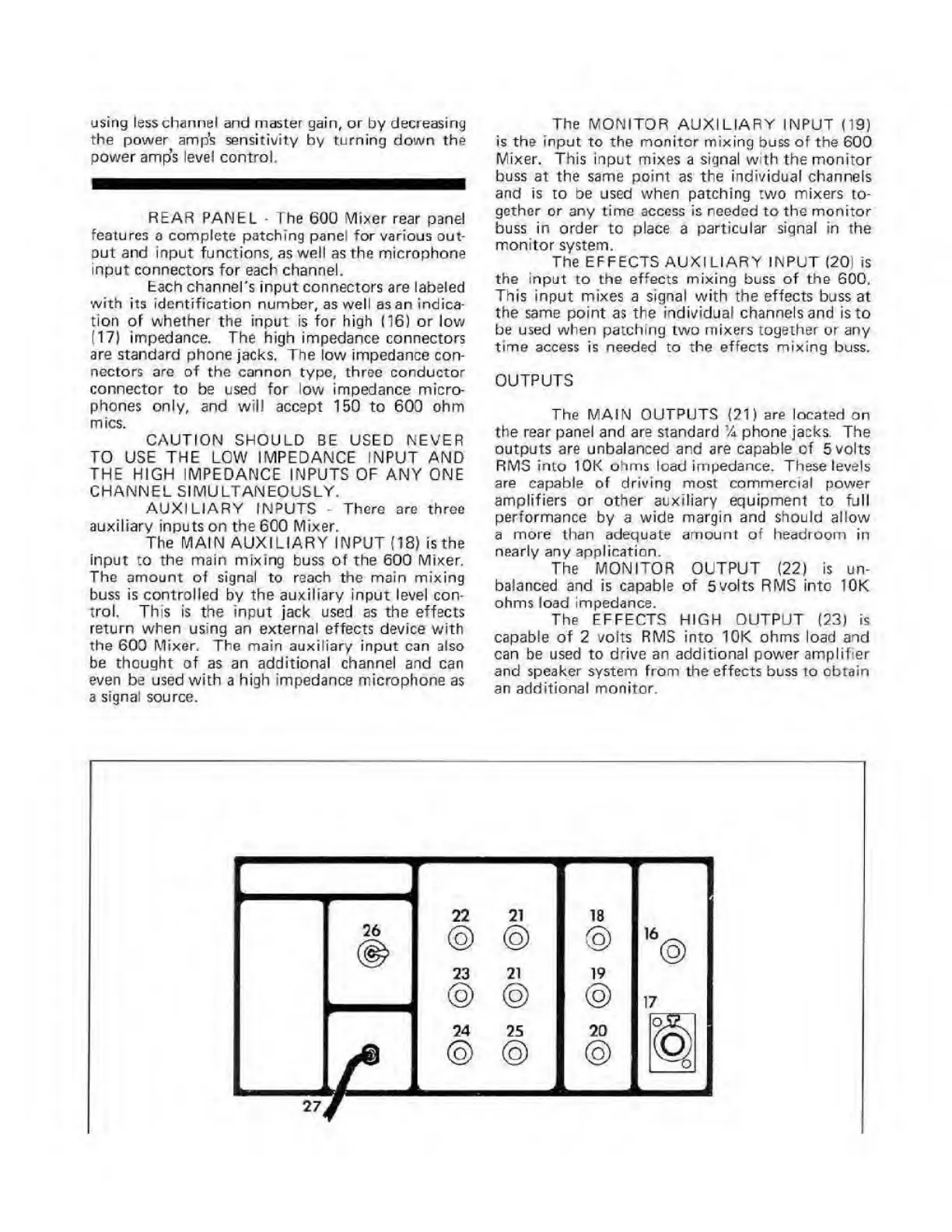

REAR
PANEL
•
The
600
Mixer
rear
panel
features
s
complete
patching
panel
for
various
out¬
put
and
input
functions,
as
well
as
the
microphone
input
connectors
for
each
channel.
Each
channel's
Input
connectors
are
labeled
with
its
Identification
number,
as
well
as
an
Indica*
tion
of
whether
the
input
is
for
high
(16)
or
low
(17)
Impedance.
The
high
Impedance
connectors
are
standard
phone
jacks.
The
low
impedance
con¬
nectors
are
of
the
cannon
type,
three
conductor
connector
to
be
used
for
low
impedance
micro¬
phones
only,
and
will
accept
150
to
600
ohm
mics.
CAUTION
SHOULD
BE
USED
NEVER
TO
USE
THE
LOW
IMPEDANCE
INPUT
AND
THE
HIGH
IMPEDANCE
INPUTS
OF
ANY
ONE
CHANNEL
SIMULTANEOUSLY.
AUXILIARY
INPUTS
-
There
are
three
auxiliary
Inputs
on
the
600
Mixer.
The
MAIN
AUXILIARY
INPUT
(18)
Isthe
Input
to
the
main
mixing
buss
of
the
600
Mixer.
The
amount
of
signal
to
reach
the
main
mixing
buss
is
controlled
by
the
auxiliary
input
level
con¬
trol.
This
Is
the
Input
jack
used
as
the
effects
return
when
using
an
external
effects
device
with
the
600
Mixer.
The
main
auxiliary
Input
can
also
be
thought
of
as
an
additional
charrnel
and
can
even
be
used
with
a
high
Impedance
microphone
as
a
signal
source.
The
MONITOR
AUXILIARY
INPUT
(19)
is
the
Input
to
the
monitor
mixing
buss
of
the
600
Mixer,
This
Input
mixes
a
signal
with
the
monitor
buss
at
the
same
point
as
the
individual
channels
and
is
to
be
used
when
patching
two
mixers
to¬
gether
or
any
time
access
Is
needed
to
the
monitor
buss
In
order
to
place
a
particular
signal
In
the
monitor
system,
The
EFFECTS
AUXILIARY
INPUT
(201
is
the
Input
to
the
effects
mixing
buss
of
the
600.
This
Input
mixes
a
signal
with
the
effects
buss
at
the
same
point
as
the
Individual
channels
and
is
to
be
used
when
patching
two
mixers
together
or
any
tirne
access
is
needed
to
the
effects
mixing
buss.
OUTPUTS
The
MAIN
OUTPUTS
(21)
are
located
on
the
rear
panel
and
are
standard
%
phone
jacks.
The
outputs
are
unbalanced
and
are
capable
of
5
volts
RMS
into
lOK
ohms
load
impedance.
These
levels
are
capable
of
driving
most
commercial
power
amplifiers
or
other
auxiliary
equipment
to
full
performance
by
a
wide
margin
and
should
allow
a
more
than
adequate
amount
of
headroom
in
nearly
any
application.
The
MONITOR
OUTPUT
(22)
Is
un¬
balanced
and
is
capable
of
5volts
RMS
Into
10K
ohms
load
impedance.
The
EFFECTS
HIGH
OUTPUT
(23)
is
capable
of
2
volts
RMS
into
10K
ohms
load
and
can
be
used
to
drive
an
additional
power
amplifier
and
speaker
system
from
the
effects
buss
to
obtain
an
addltlor>al
monitor.
