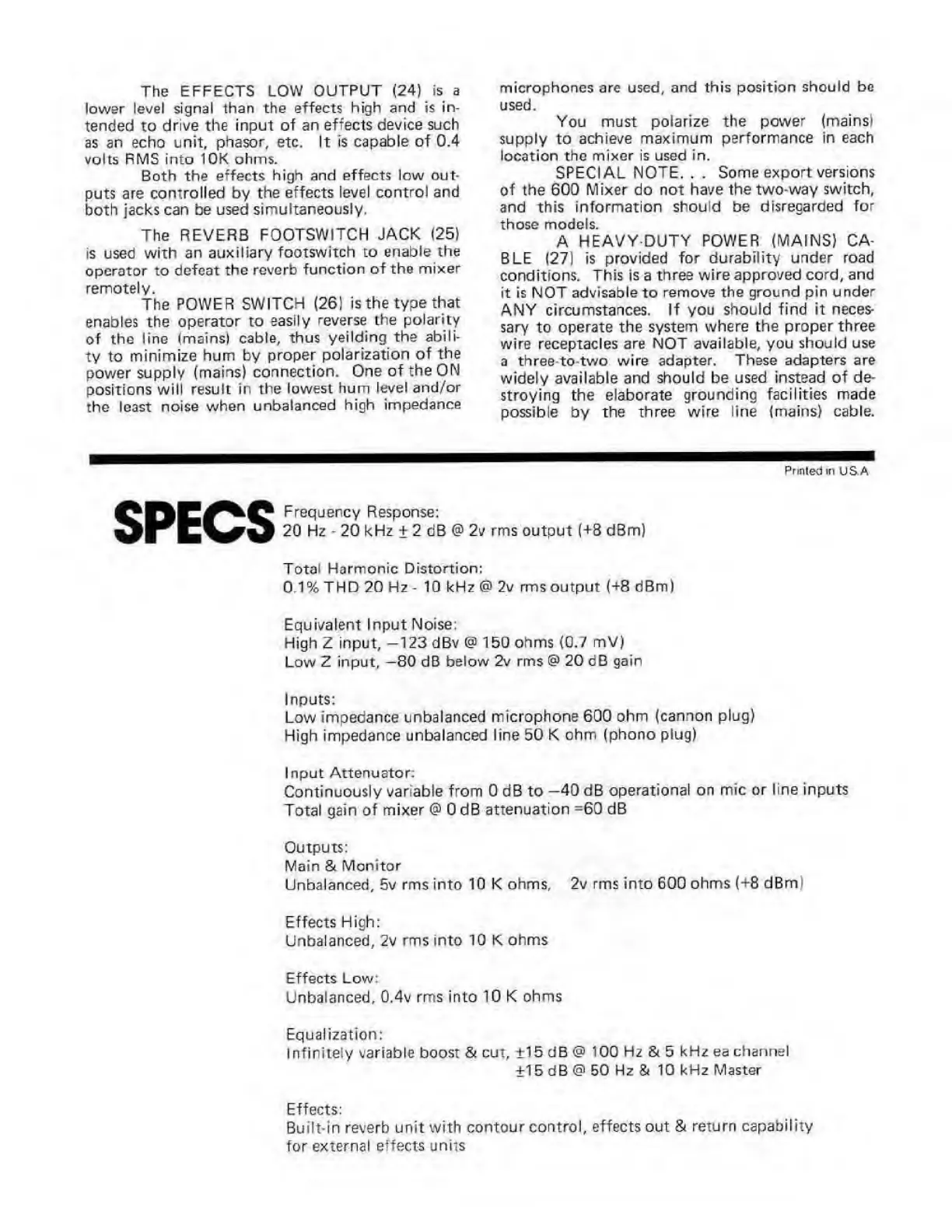

The EFFECTS LOW OUTPUT (24) is a
lower level signal than the effects high and is in¬
tended to drive the ir^put of an effects device such
as an echo unit, phasor, etc. It is capable of 0.4
volts RMS into 10K ohms.
Both the effects high and effects low out*
puts are controlled by the effects level control and
both jacks can be used simultaneous! y*
The REVERB FOOTSWITCH JACK (25)
is used with an auxiliary footswitch to enable the
operator to defeat the reverb function of the mixer
remotelv-
The POWER SWITCH (26) is the type that
enables the operator to easily reverse the polarity
of the line (mains) cable, thus yeilding the abili¬
ty to minimize hum by proper polarization of the
power supply (mains) connection. One of the ON
positions will result In the lowest hum level and/or
the least noise when unbalanced high Impedance
microphones are used, and this position should be
used.
You must polarize the power (mains)
supply to achieve maximum performance in each
location the mixer is used in.
SPECIAL NOTE. . . Some export versions
of the 600 Mixer do not have the two-way switch,
and this information should be disregarded for
those models.
A HEAVY-DUTY POWER (MAINS) CA¬
BLE 127] is provided for durability under road
conditions. This Is a three wire approved cord, and
It is NOT advisable to remove the ground pin under
ANY circumstances. If you should find It neces¬
sary to operate the system where the proper three
wire receptacles are NOT available, you should use
a three-to-two wire adapter, These adapters are
widely available and should be used Instead of de¬
stroying the elaborate grounding facilities made
possibie by the three wire ilne (mains) cable.
Prinled m US.A
SPECS
Frequency Response:
20 Hz - 20 kHz + 2 dB @ 2v rms output 1+8 dBm)
Total Harmonic Distortion:
0.1% THD 20 Hz - 10 kHz @ 2v rms output (+8 dBm)
Equivalent Input Noise:
High Z Input, —123 dBv @ 150 ohms (0.7 mV)
Low Z Input, —80 dB below 2v rms @ 20 dB gain
Inputs:
Low impedance unbalanced microphone 600 ohm (cannon plug)
High impedance unbalanced line 50 K ohfTi (phono plug)
Input Attenuator:
Continuously variable from 0 dB to —40 dB operational on mic or line inputs
Total gain of mixer @ 0 dB attenuation *60 dB
Outputs:
Main & Monitor
Unbalanced, Sv rms into 10 K ohms, 2v rms Into 600 ohms (+8 dBm)
Effects High:
Unbalanced, 2v rms Into 10 K ohms
Effects Low:
Unbalanced. 0.4v rms Into 10 K ohms
Equalization:
Infinitely variable boost & cut, +15 dBO 100 Hz & 5 kHz ea channel
±15dB@ 50 Hz & 10 kHz Master
Effects;
Built-in reverb unit with contour control, effects out & return capability
for external effects units
