Peavey Basic 60

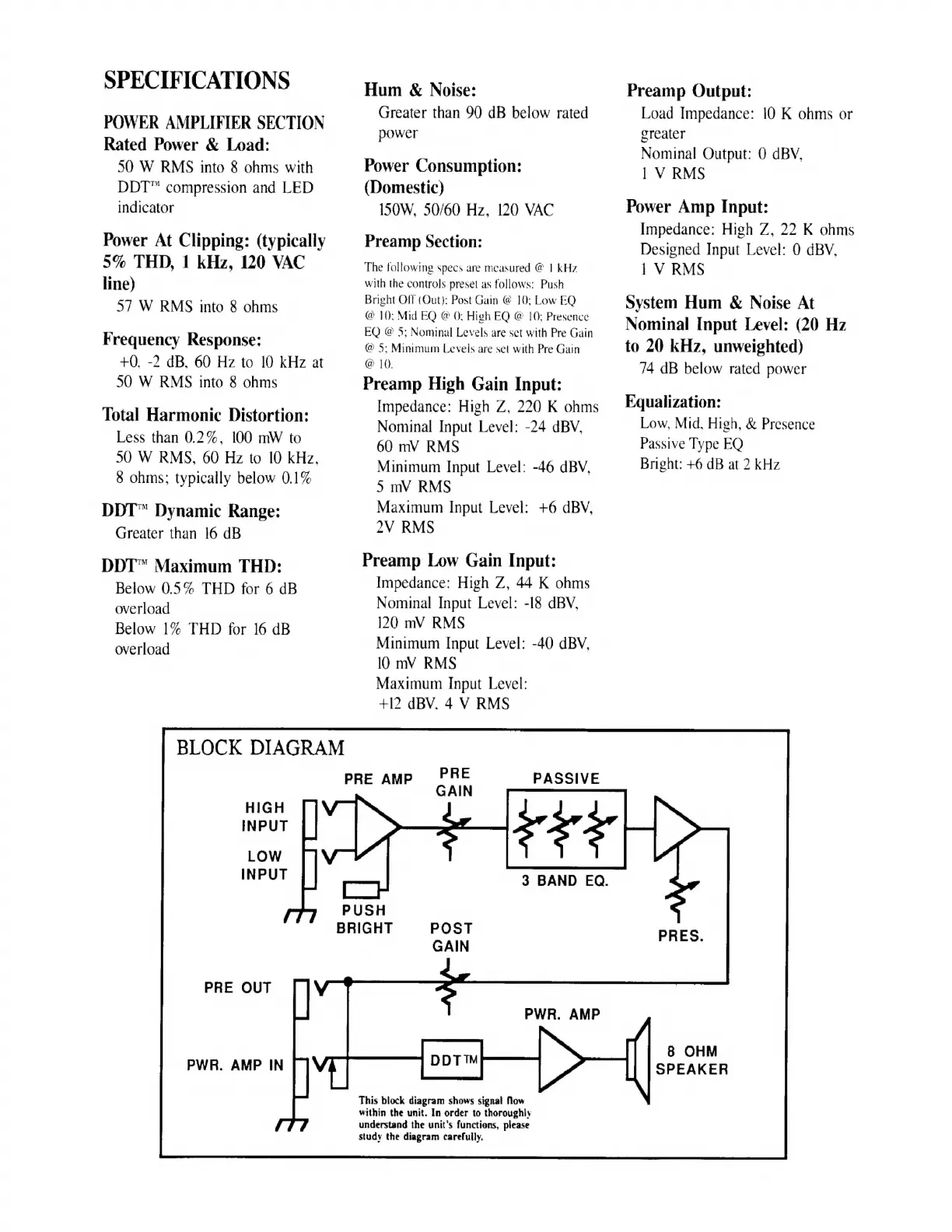

SPECIFICATIONS
POWER AMPLIFIER SECTION
Rated Power & Load:
50 W RMS into 8 ohms with
DDT™ compression and LED
indicator
Power At Clipping: (typically
5% THD, 1 kHz, 120 VAC
line)
57 W RMS into 8 ohms
Frequency Response:
+0. -2 dB, 60 Hz to 10 kHz at
50 W RMS into 8 ohms
Total Harmonic Distortion:
Less than 0.2%, 100 mW to
50 W RMS, 60 Hz to 10 kHz,
8 ohms; typically below 0.1%
DDT” Dynamic Range:
Greater than 16 dB
DDT" Maximum THD:
Below 0.5% THD for 6 dB
overload
Below 1% THD for 16 dB
overload
Hum & Noise:
Greater than 90 dB below rated
power
Power Consumption:
(Domestic)
150W, 50/60 Hz, 120 VAC
Preamp Section:
The following specs are measured @ 1 kHz
with the controls preset as follows: Push
Bright Off (Out): Post Gain € 10; Low EQ
© 10: Mid EQ € 0: High EQ € 10; Presence
EQ @ 5; Nominal Levels are set with Pre Gain
@ 5: Minimum Levels are set with Pre Gain
@ 10.
Preamp High Gain Input:
Impedance: High Z, 220 K ohms
Nominal Input Level: -24 dBV,
60 mV RMS
Minimum Input Level: -46 dBV,
5 mV RMS
Maximum Input Level: +6 dBV,
2V RMS
Preamp Low Gain Input:
Impedance: High Z, 44 K ohms
Nominal Input Level: -18 dBV,
120 mV RMS
Minimum Input Level: -40 dBV,
10 mV RMS
Maximum Input Level:
+12 dBV. 4 V RMS
BLOCK DIAGRAM
HIGH
INPUT
LOW
INPUT
PRE OUT
PWR. AMP IN
PRE AMP PRE
PASSIVE
Preamp Output:
Load Impedance: 10 K ohms or
greater
Nominal Output: 0 dBV,
1 V RMS
Power Amp Input:
Impedance: High Z, 22 K ohms
Designed Input Level: 0 dBV,
IVRMS
System Hum & Noise At
Nominal Input Level: (20 Hz
to 20 kHz, unweighted)
74 dB below rated power
Equalization:
Low, Mid, High, & Presence
Passive Type EQ
Bright: +6 dB at 2 kHz
HD
ss
PUSH
BRIGHT POST
GAIN
PWR. AMP
This block diagram shows signal flow
within the unit. In order to thoroughly
understand the unit's functions, please
study the diagram carefully,
>
3 BAND EQ.
8 OHM
SPEAKER
