Peavey Classic 100 User Manual

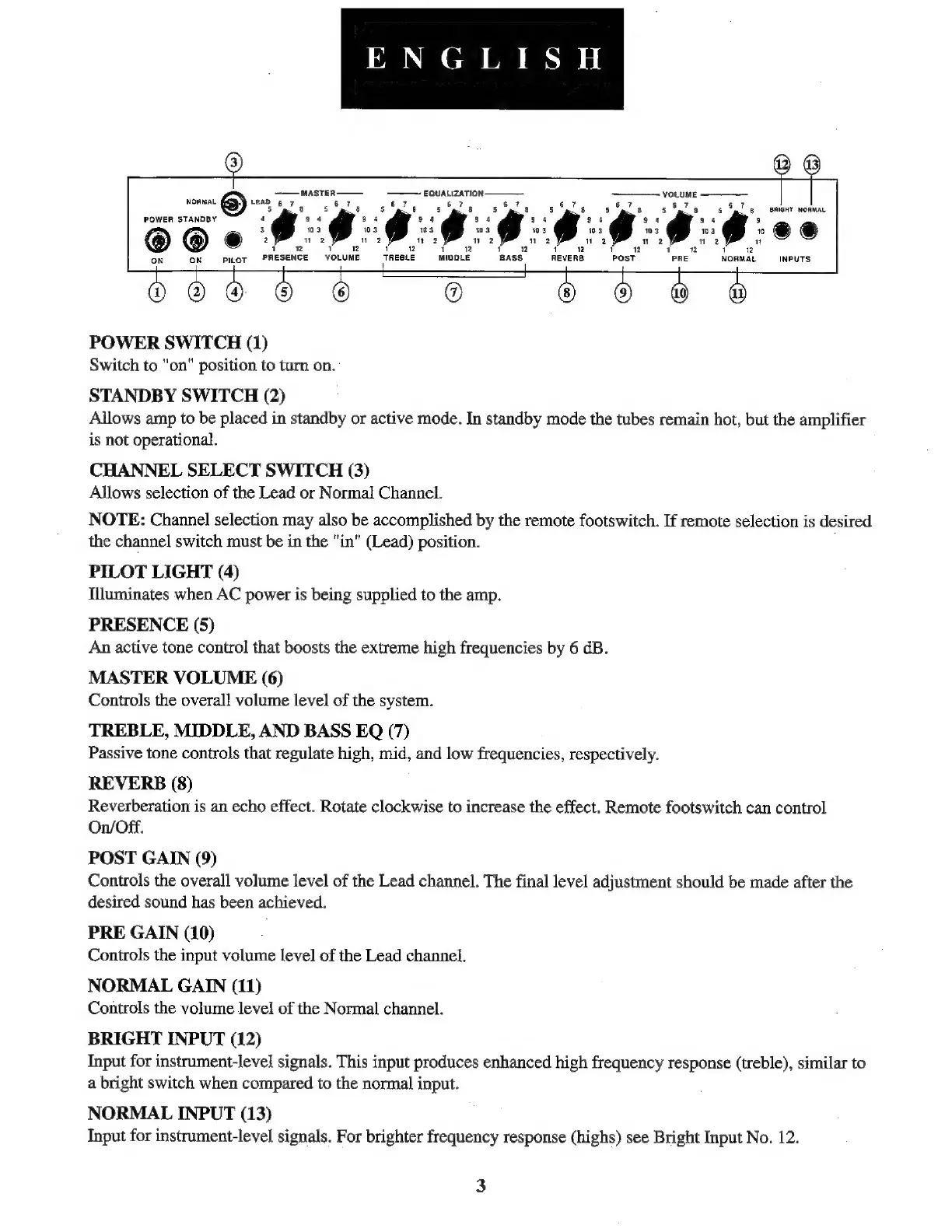

ENGLISH
MASTERS EQUALIZATION
von @)
H
BRIGHT
NORMAL
POWER
©
SE
è:
ed
Br
ON PILOT PRESENCE VOLUME TRESLÉ MIDDLE Bass REVERE NORMAL INPUTS
POWER SWITCH (1)
Switch to "on" position to turn on.
STANDBY SWITCH (2)
Allows amp to be placed in standby or active mode. In standby mode the tubes remain hot, but the amplifier
is not operational.
CHANNEL SELECT SWITCH (3)
Allows selection of the Lead or Normal Channel.
NOTE: Channel selection may also be accomplished by the remote footswitch. If remote selection is desired
the channel switch must be in the "in" (Lead) position.
PILOT LIGHT (4)
Illuminates when AC power is being supplied to the amp.
PRESENCE (5)
An active tone control that boosts the extreme high frequencies by 6 dB.
MASTER VOLUME (6)
Controls the overall volume level of the system.
TREBLE, MIDDLE, AND BASS EQ (7)
Passive tone controls that regulate high, mid, and low frequencies, respectively.
REVERB (8)
Reverberation is an echo effect. Rotate clockwise to increase the effect. Remote footswitch can control
On/Off.
POST GAIN (9)
Controls the overall volume level of the Lead channel. The final level adjustment should be made after the
desired sound has been achieved.
PRE GAIN (10)
Controls the input volume level of the Lead channel.
NORMAL GAIN (11)
Controls the volume level of the Normal channel.
BRIGHT INPUT (12)
Input for instrument-level signals. This input produces enhanced high frequency response (treble), similar to
a bright switch when compared to the normal input.
NORMAL INPUT (13)
Input for instrument-level signals. For brighter frequency response (highs) see Bright Input No. 12.
3
