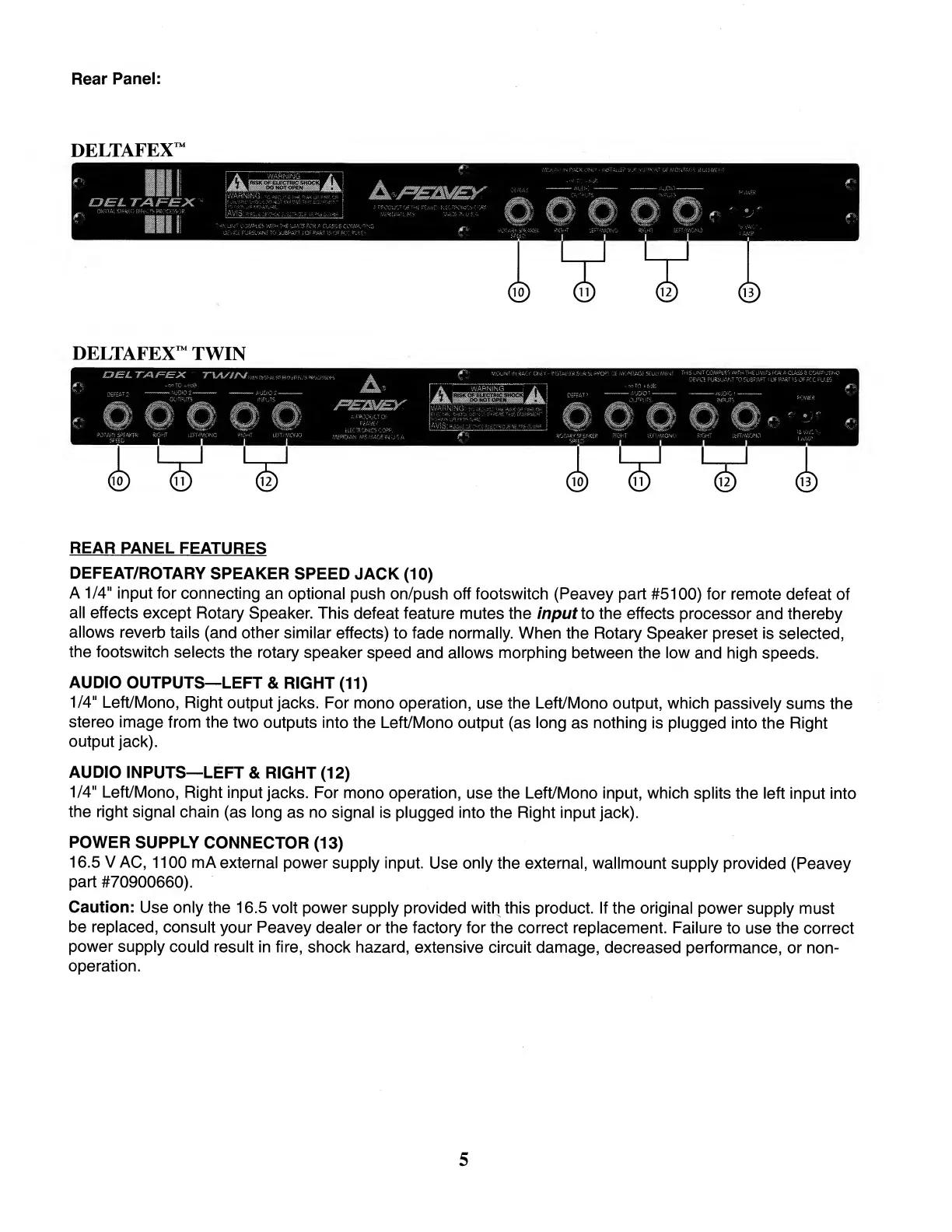

Rear Panel:
DELTAFEX ™ TWIN
REAR PANEL FEATURES
DEFEAT/ROTARY SPEAKER SPEED JACK (10)
A1/4" input for connecting an optional push on/push off footswitch (Peavey part #5100) for remote defeat of
all effects except Rotary Speaker. This defeat feature mutes the input \o the effects processor and thereby
allows reverb tails (and other similar effects) to fade normally. When the Rotary Speaker preset is selected,
the footswitch selects the rotary speaker speed and allows morphing between the low and high speeds.
AUDIO OUTPUTS—LEFT & RIGHT (11)
1/4" Left/Mono, Right output jacks. For mono operation, use the Left/Mono output, which passively sums the
stereo image from the two outputs into the Left/Mono output (as long as nothing is plugged into the Right
output jack).
AUDIO INPUTS—LEFT & RIGHT (12)
1/4" Left/Mono, Right input jacks. For mono operation, use the Left/Mono input, which splits the left input into
the right signal chain (as long as no signal is plugged into the Right input jack).
POWER SUPPLY CONNECTOR (13)
16.5 V AC, 1100 mA external power supply input. Use only the external, wallmount supply provided (Peavey
part #70900660).
Caution: Use only the 16.5 volt power supply provided with this product. If the original power supply must
be replaced, consult your Peavey dealer or the factory for the correct replacement. Failure to use the correct
power supply could result in fire, shock hazard, extensive circuit damage, decreased performance, or non¬
operation.
