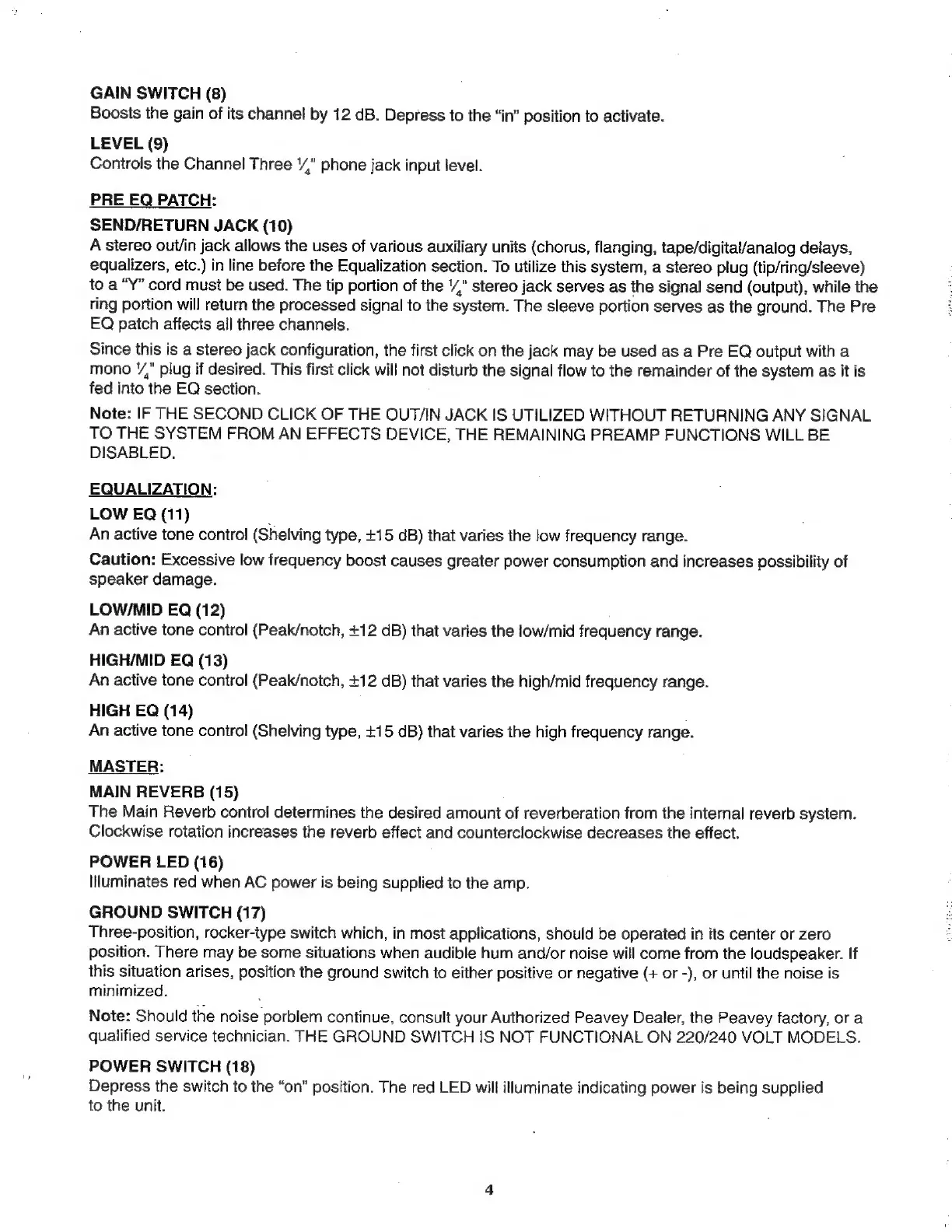

GAIN SWITCH (8)
Boosts
the
gain
of
its
channel
by
12
dB.
Depress
to
the
“in”
position
to
activate.
LEVEL (9)
Controls the Channel Three Y," phone jack input level.
PRE EQ PATCH:
SEND/RETURN JACK (10)
A stereo out/in jack allows the uses of various auxiliary units (chorus, flanging, tape/digital/analog delays,
equalizers, etc.) in line before the Equalization section. To utilize this system, a stereo plug (tip/ring/sleeve)
to
a
“Y”
cord
must
be
used.
The
tip
portion
of
the
Y,”
stereo
jack
serves
as
the
signal
send
(output),
while
the
ring
portion
will
return
the
processed
signal
to
the
system.
The
sleeve
portion
serves
as
the
ground.
The
Pre
EQ patch affects all three channels.
Since this is a stereo jack configuration, the first click on the jack may be used as a Pre EQ output with a
mono Y," plug if desired. This first click will not disturb the signal flow to the remainder of the system as it is
fed into the EQ section.
Note:
IF
THE
SECOND
CLICK
OF
THE
OUT/IN
JACK
IS
UTILIZED
WITHOUT
RETURNING
ANY
SIGNAL
TO
THE
SYSTEM
FROM
AN
EFFECTS
DEVICE,
THE
REMAINING
PREAMP
FUNCTIONS
WILL
BE
DISABLED.
EQUALIZATION:
LOW EQ (11) y
An active tone control (Shelving type, +15 dB) that varies the low frequency range.
Caution: Excessive low frequency boost causes greater power consumption and increases possibility of
speaker damage.
LOW/MID EQ (12)
An active tone control (Peak/notch, +12 dB) that varies the low/mid frequency range.
HIGH/MID EQ (13)
An active tone control (Peak/notch, +12 dB) that varies the high/mid frequency range.
HIGH EQ (14)
An active tone control (Shelving type, +15 dB) that varies the high frequency range.
MASTER:
MAIN REVERB (15)
The Main Reverb control determines the desired amount of reverberation from the internal reverb system.
Clockwise rotation increases the reverb effect and counterclockwise decreases the effect.
POWER LED (16)
Illuminates red when AC power is being supplied to the amp.
GROUND SWITCH (17)
Three-position, rocker-type switch which, in most applications, should be operated in its center or zero
position. There may be some situations when audible hum and/or noise will come from the loudspeaker. If
this situation arises, position the ground switch to either positive or negative (+ or -), or until the noise is
minimized. Ñ
Note: Should the noise porblem continue, consult your Authorized Peavey Dealer, the Peavey factory, or a
qualified service technician. THE GROUND SWITCH IS NOT FUNCTIONAL ON 220/240 VOLT MODELS.
POWER SWITCH (18)
Depress the switch to the “on” position. The red LED will illuminate indicating power is being supplied
to the unit.
