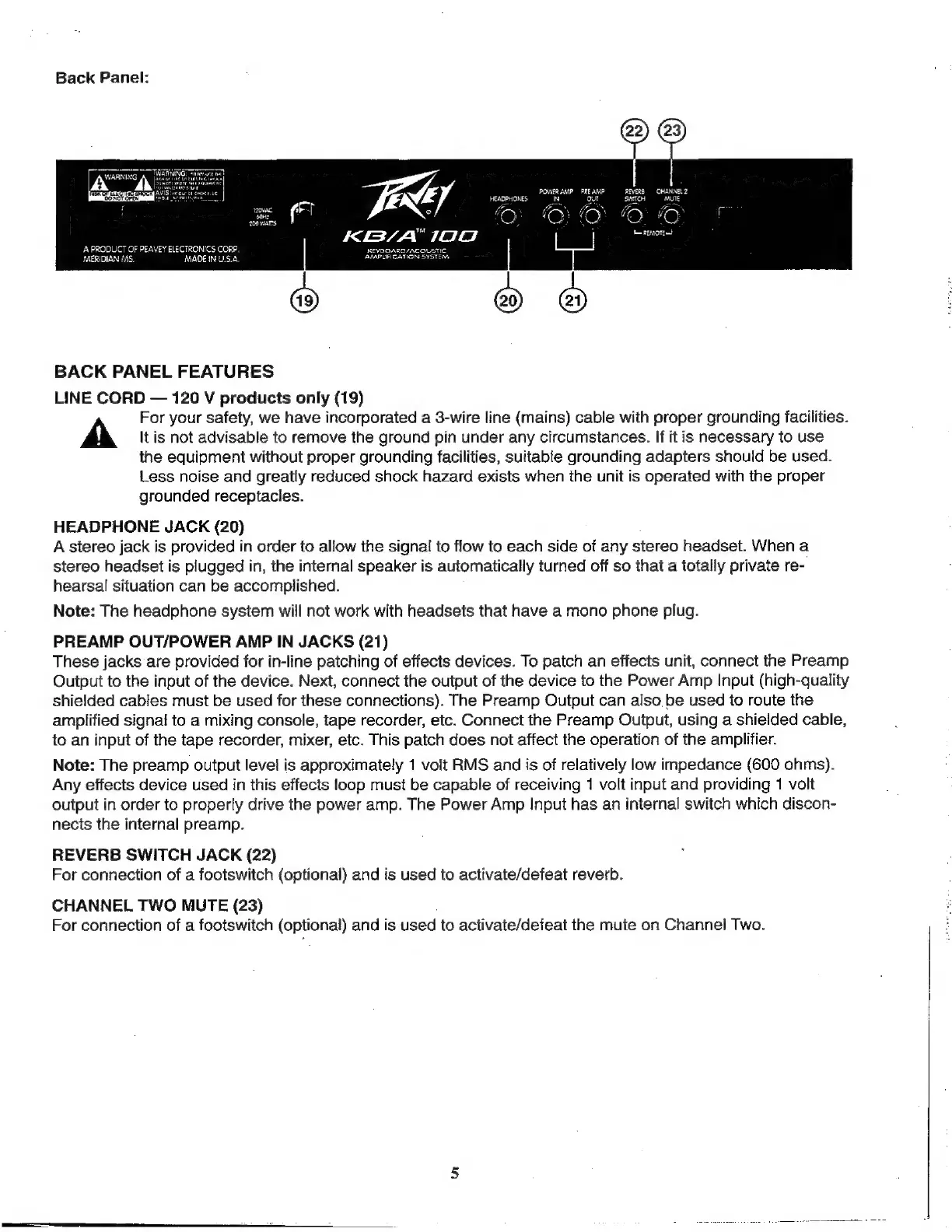

Panel:
“a
KB/A
100
A
PRODUCT
OF
PEAVEY
ELECTRONICS
CORP.
KEYDOARD/ATOUSTIC
MERIDIAN
MS.
MADE
IN
U.S.A.
iisa
cee
BACK
PANEL
FEATURES
LINE
CORD
—
120
V
products
only
(19)
For
your
safety,
we
have
incorporated
a
3-wire
line
(mains)
cable
with
proper
grounding
facilities.
A
It
is
not
advisable
to
remove
the
ground
pin
under
any
circumstances.
If it
is
necessary
to
use
the
equipment
without
proper
grounding
facilities,
suitable
grounding
adapters
should
be
used.
Less
noise
and
greatly
reduced
shock
hazard
exists
when
the
unit
is
operated
with
the
proper
grounded
receptacies.
HEADPHONE
JACK
(20)
A
stereo
jack
is
provided
in
order
to
allow
the
signal
to
flow
to
each
side
of
any
stereo
headset.
When
a
stereo
headset
is
plugged
in,
the
internal
speaker
is
automatically
turned
off
so
that
a
totally
private
re-
hearsal
situation
can
be
accomplished.
Note:
The
headphone
system
will
not
work
with
headsets
that
have
a
mono
phone
plug.
PREAMP
OUT/POWER
AMP
IN
JACKS
(21)
These
jacks
are
provided
for
in-line
patching
of
effects
devices.
To
patch
an
effects
unit,
connect
the
Preamp
Output
to
the
input
of
the
device.
Next,
connect
the
output
of
the
device
to
the
Power
Amp
Input
(high-quality
shielded
cables
must
be
used
for
these
connections).
The
Preamp
Output
can
also
be
used
to
route
the
amplified
signal
to
a
mixing
console,
tape
recorder,
etc.
Connect
the
Preamp
Output,
using
a
shielded
cable,
to
an
input
of
the
tape
recorder,
mixer,
etc.
This
patch
does
not
affect
the
operation
of
the
amplifier.
Note:
The
preamp
output
level
is
approximately
1
volt
RMS
and
is
of
relatively
low
impedance
(600
ohms).
Any
effects
device
used
in
this
effects
loop
must
be
capable
of
receiving
1
volt
input
and
providing
1
volt
output
in
order
to
properly
drive
the
power
amp.
The
Power
Amp
Input
has
an
internal
switch
which
discon-
nects
the
internal
preamp.
REVERB
SWITCH
JACK
(22)
For
connection
of
a
footswitch
(optional)
and
is
used
to
activate/defeat
reverb.
CHANNEL
TWO
MUTE
(23)
For
connection
of
a
footswitch
(optional)
and
is
used
to
activate/defeat
the
mute
on
Channel
Two.
