Level (1)
Controls the
1
⁄4" jack input level. (Channels 1‚ 2 and on the KB5 and channels 1 and 2 on the KB4.)
Low EQ (2)
An active tone control (shelving type: +/-15dB) that varies the low frequency range. (KB5: channels 1‚ 2 &
; KB4: channels 1 & 2.)
Caution: Excessive low frequency boost causes greater power consumption and increases the
possibility of speaker damage.
Hi EQ (3)
An active tone control (shelving type: +/-15dB) that varies the hi frequency range. (KB5: channels 1‚ 2 & ;
KB4: channels 1 & 2.)
High Z Level (4)
Controls the high-impedance microphones or other high-level sources equipped with a
1
⁄4" phone plug.
Low Z Level (5)
Controls the low-impedance microphones or other low-level sources equipped with a male XLR connector.
Mid EQ (6)
An active tone control (peak/notch type: +/-15dB) that varies the mid frequencies. (Channel 4 on the KB5
and channel on the KB4.)
Main/Monitor (7)
This affects what signal is sent to the headphones. When in the OUT position‚ only the signal from channel
5 is sent to the headphones. Great when you need to hear a click track or midi/pre-recorded track. When
engaged (IN position)‚ the headphones are sent signals from all channels. Keep in mind‚ this signal is
never sent to the Main XLR outs.

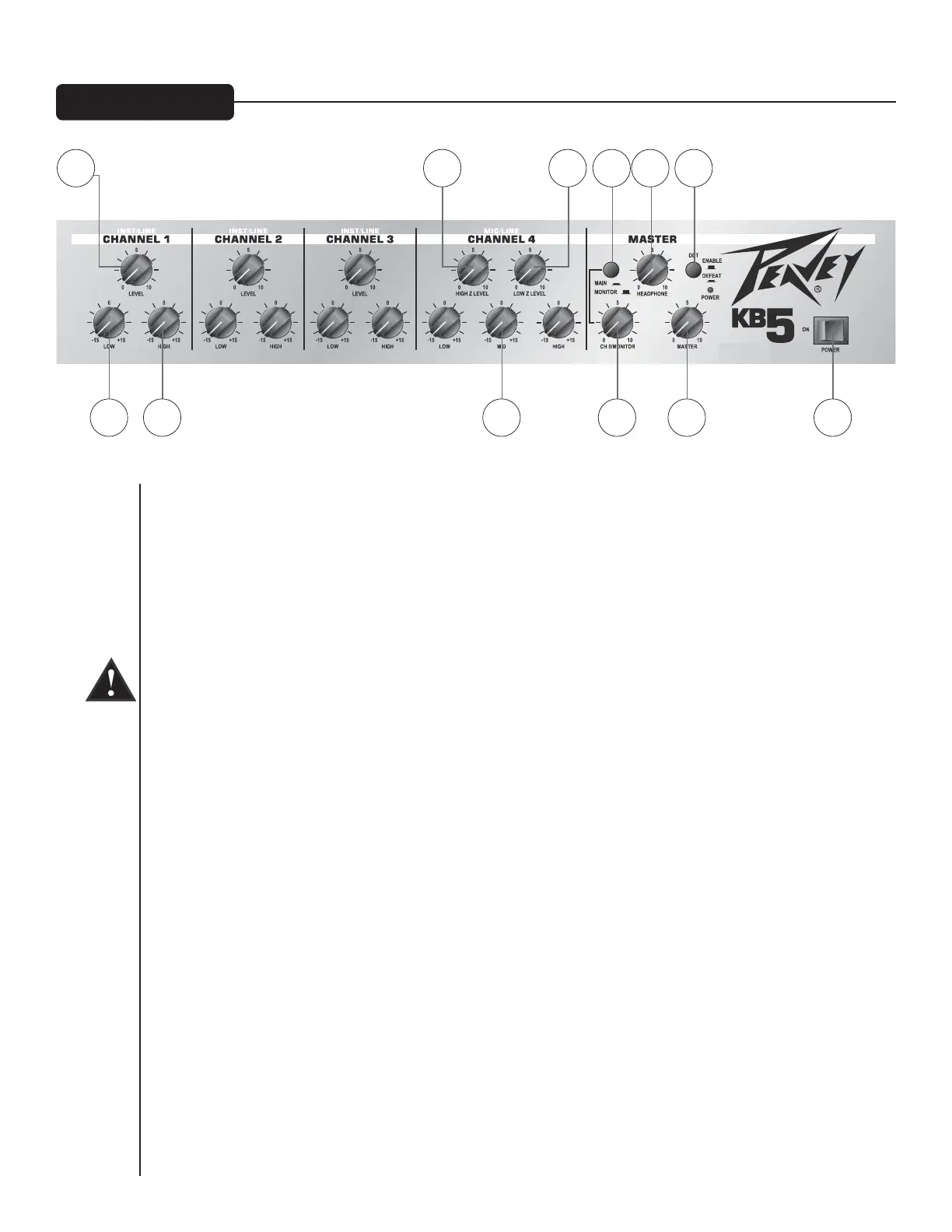

F R O N T P A N E L
