Peavey TKO 115 User Manual

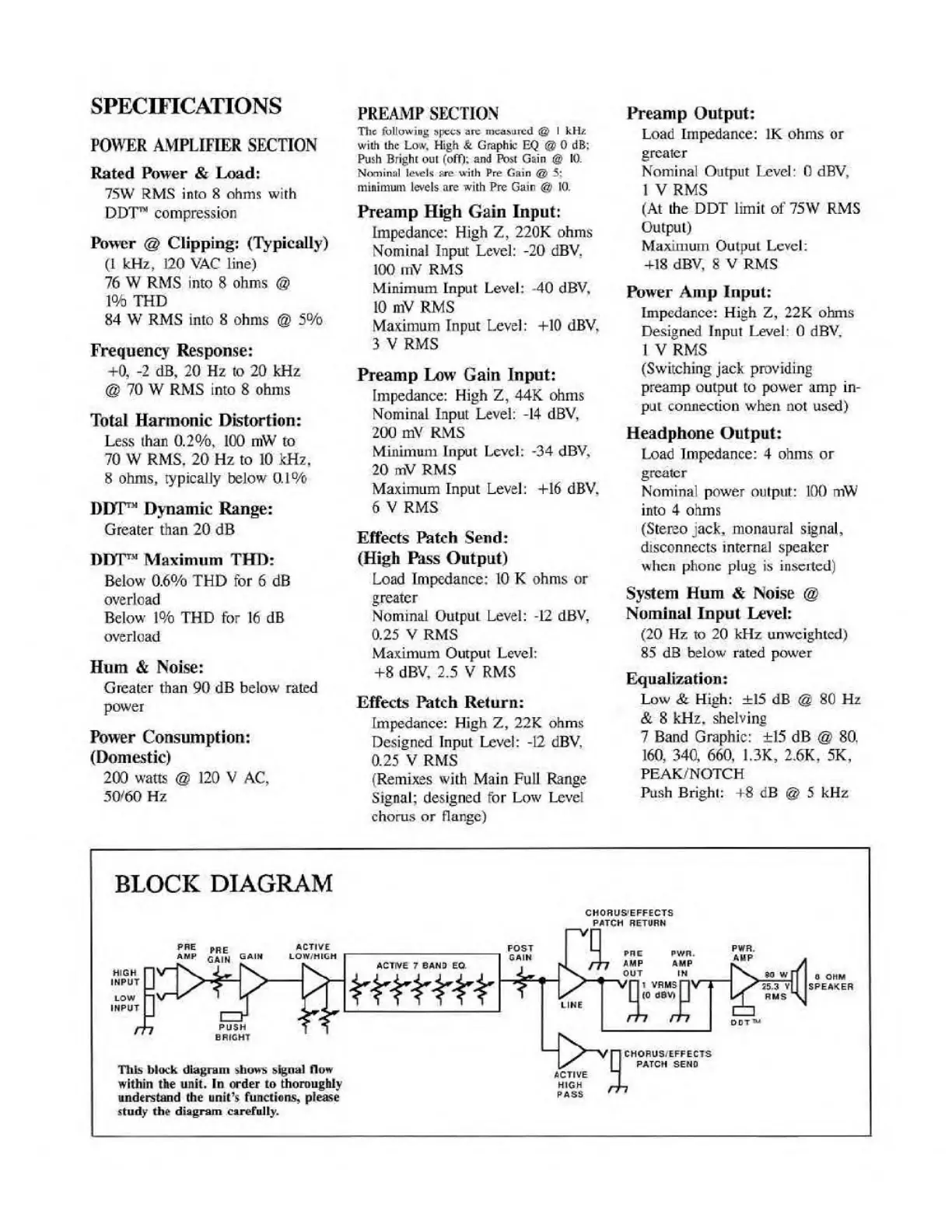

SPECIFICATIONS
POWER AMPLIFIER SECTION
Rated Power & Load:
75W RMS into 8 ohms with
DDT ™ compression
Power @ Clipping: (Typically)
(1 kHz, 120 VAC line)
76 W RMS into 8 ohms @
1% THD
84 W RMS into 8 ohms @ 5%
Frequency Response:
+0, -2 dB, 20 Hz to 20 kHz
@ 70 W RMS into 8 ohms
Total Harmonic Distortion:
Less than 0.2%, 100 mW to
70 W RMS. 20 Hz to 10 kHz.
8 ohms, typically below 0 . 1 %
DDT ™ Dynamic Range:
Greater than 20 dB
DDT ™ Maximum THD:
Below 0.6% THD for 6 dB
overload
Below 1% THD for 16 dB
overload
Hum & Noise:
Greater than 90 dB below rated
power
Power Consumption:
(Domestic)
200 watts @ 120 V AC,
50/60 Hz
PREAMP SECTION
The following specs aic measured @ I kHz.
with the Low. High & Graphic EQ @ 0 dB:
Push Bright oul (off); and Post Gain @ 10.
Nominal levels are with Pre Gain <g* 5:
minimum levels are with Pre Gain @ 10.
Preamp High Gain Input:
Impedance: High Z, 220K ohms
Nominal Input Level: -20 dBV.
100 mV RMS
Minimum Input Level: -40 dBV,
10 mV RMS
Maximum Input Level: +10 dBV.
3 V RMS
Preamp Low' Gain Input:
Impedance: High Z, 44K ohms
Nominal Input Level: -14 dBV,
200 mV RMS
Minimum Input Level: -34 dBV.
20 mV RMS
Maximum Input Level: +16 dBV.
6 V RMS
Effects Patch Send:
(High Pass Output)
Load Impedance: 10 K ohms or
greater
Nominal Output Level: -12 dBV,
0.25 V RMS
Maximum Output Level:
+8 dBV. 2.5 V RMS
Effects Patch Return:
Impedance: High Z, 22K ohms
Designed Input Level: -12 dBV.
0.25 V RMS
(Remixes with Main Full Range
Signal; designed for Low Level
chorus or flange)
Preamp Output:
Load Impedance: IK ohms or
greater
Nominal Output Level: 0 dBV,
1 V RMS
(At the DDT limit of 75W RMS
Output)
Maximum Output Level:
+18 dBV. 8 V RMS
Power Amp Input:
Impedance: High Z, 22K ohms
Designed Input Level: 0 dBV.
1 V RMS
(Switching jack providing
preamp output to power amp in¬
put connection when not used)
Headphone Output:
Load Impedance: 4 ohms or
greater
Nominal power output: 100 mW
into 4 ohms
(Stereo jack, monaural signal,
disconnects internal speaker
when phone plug is inserted)
System Hum & Noise @
Nominal Input Level:
(20 Hz to 20 kHz unweighted)
85 dB below rated power
Equalization:
Low & High: ±15 dB (g 80 Hz
6 8 kHz. shelving
7 Band Graphic: ±15 dB @ 80,
160, 340, 660. 1.3K, 2.6K, 5K.
PEAK/NOTCH
Push Bright: +8 dB @ 5 kHz
BLOCK DIAGRAM
PHE pRE
AMP GA|N GAIN
ACTIVE
LOW/HIUH
CHORUS'EFFECTS
PATCH RETURN
ACTIVE 7 BAND EG
This block diagram shows signal flow
within the unit. In order to thoroughly
understand the unit’s functions, please
study the diagram carefully.
OUT IN
ffll VRMSrp
M (o ubvi M
CHORUS-EFFECTS
PATCH SEND
1 8 OHM
SPEAKER
