Peavey TNT 115BW User Manual

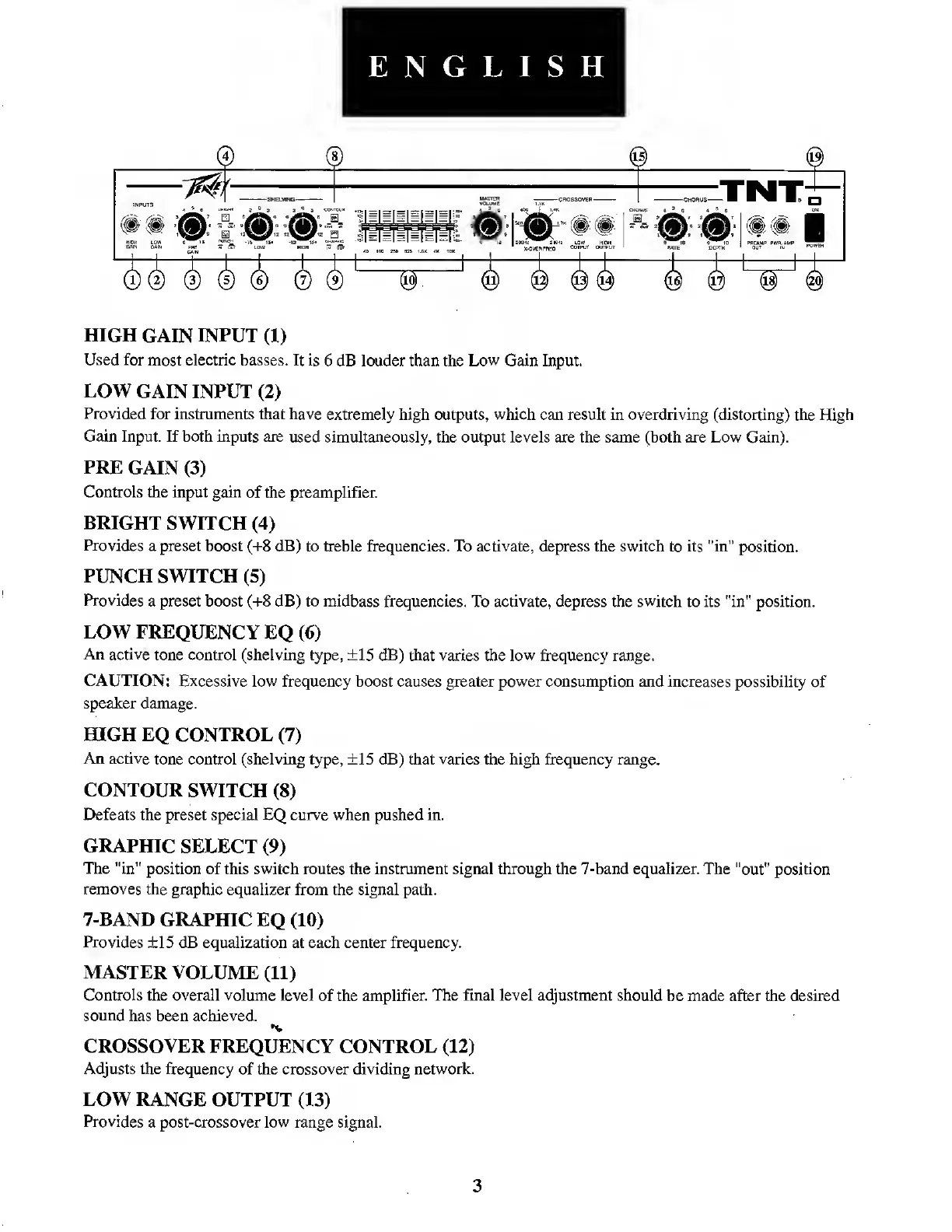

ENGLISH
#1
® I ® ®
=zTIMT_
##i«« i
HIGH GAIN INPUT (1)
Used for most electric basses. It is 6 dB louder than the Low Gain Input.
LOW GAIN INPUT (2)
Provided for instruments that have extremely high outputs, which can result in overdriving (distorting) the High
Gain Input. If both inputs are used simultaneously, the output levels are the same (both are Low Gain).
PRE GAIN (3)
Controls the input gain of the preamplifier.
BRIGHT SWITCH (4)
Provides a preset boost (+8 dB) to treble frequencies. To activate, depress the switch to its "in" position.
PUNCH SWITCH (5)
Provides a preset boost (+8 dB) to midbass frequencies. To activate, depress the switch to its "in" position.
LOW FREQUENCY EQ (6)
An active tone control (shelving type, ±15 dB) that varies the low frequency range.
CAUTION: Excessive low frequency boost causes greater power consumption and increases possibility of
speaker damage.
HIGH EQ CONTROL (7)
An active tone control (shelving type, ±15 dB) that varies the high frequency range.
CONTOUR SWITCH (8)
Defeats the preset special EQ curve when pushed in.
GRAPHIC SELECT (9)
The "in" position of this switch routes the instrument signal through the 7-band equalizer. The "out" position
removes the graphic equalizer from the signal path.
7-BAND GRAPHIC EQ (10)
Provides ±15 dB equalization at each center frequency.
MASTER VOLUME (11)
Controls the overall volume level of the amplifier. The final level adjustment should be made after the desired
sound has been achieved.
%
CROSSOVER FREQUENCY CONTROL (12)
Adjusts the frequency of the crossover dividing network.
LOW RANGE OUTPUT (13)
Provides a post-crossover low range signal.
3
