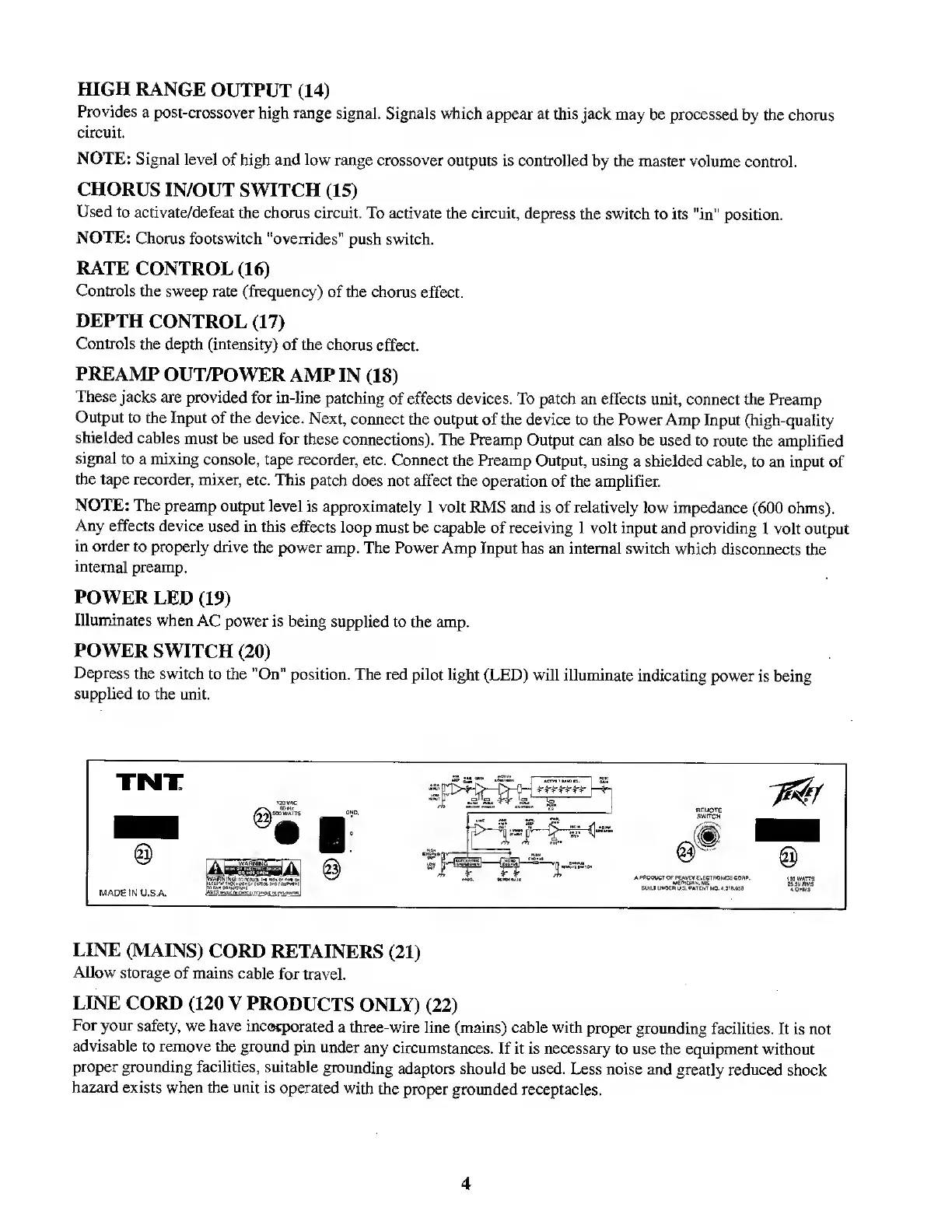

HIGH
RANGE
OUTPUT
(14)
Provides
a
post-crossover
high
range
signal.
Signals
which
appear
at
this
jack
may
be
processed
by
the
chorus
circuit.
NOTE:
Signal
level
of
high
and
low
range
crossover
outputs
is
controlled
by
the
master
volume
control.
CHORUS
IN/OUT
SWITCH
(15)
Used
to
activate/defeat
the
chorus
circuit.
To
activate
the
circuit,
depress
the
switch
to
its
"in"
position.
NOTE:
Chorus
footswitch
"overrides"
push
switch.
RATE
CONTROL
(16)
Controls
the
sweep
rate
(frequency)
of
the
chorus
effect.
DEPTH
CONTROL
(17)
Controls
the
depth
(intensity)
of
the
chorus
effect.
PREAMP
OUT/POWER
AMP
IN
(18)
These
jacks
are
provided
for
in-line
patching
of
effects
devices.
To
patch
an
effects
unit,
connect
the
Preamp
Output
to
the
Input
of
the
device.
Next,
connect
the
output
of
the
device
to
the
Power
Amp
Input
(high-quality
shielded
cables
must
be
used
for
these
connections).
The
Preamp
Output
can
also
be
used
to
route
the
amplified
signal
to
a
mixing
console,
tape
recorder,
etc.
Connect
the
Preamp
Output,
using
a
shielded
cable,
to
an
input
of
the
tape
recorder,
mixer,
etc.
This
patch
does
not
affect
the
operation
of
the
amplifier.
NOTE:
The
preamp
output
level
is
approximately
1
volt
RMS
and
is
of
relatively
low
impedance
(600
ohms).
Any
effects
device
used
in
this
effects
loop
must
be
capable
of
receiving
1
volt
input
and
providing
1
volt
output
in
order
to
properly
drive
the
power
amp.
The
Power
Amp
Input
has
an
internal
switch
which
disconnects
the
internal
preamp.
POWER
LED
(19)
Illuminates
when
AC
power
is
being
supplied
to
the
amp.
POWER
SWITCH
(20)
Depress
the
switch
to
the
"On"
position.
The
red
pilot
light
(LED)
will
illuminate
indicating
power
is
being
supplied
to
the
unit.
TNT
MADE
IN
U.S.A.
120
VAC
1
WI
SimMXiC
IV
<wQc
if
tOUPWt"T
A
PRODUCT
OF
PEAVEY
ELECTRONICS
COAP.
MERIDIAN,
MS
BUiLT
U*OCR
U.S.
PATENT
NO-
OW.053
LINE
(MAINS)
CORD
RETAINERS
(21)
Allow
storage
of
mains
cable
for
travel.
LINE
CORD
(120
V
PRODUCTS
ONLY)
(22)
For
your
safety,
we
have
incorporated
a
three-wire
line
(mains)
cable
with
proper
grounding
facilities.
It
is
not
advisable
to
remove
the
ground
pin
under
any
circumstances.
If
it
is
necessary
to
use
the
equipment
without
proper
grounding
facilities,
suitable
grounding
adaptors
should
be
used.
Less
noise
and
greatly
reduced
shock
hazard
exists
when
the
unit
is
operated
with
the
proper
grounded
receptacles.
4
