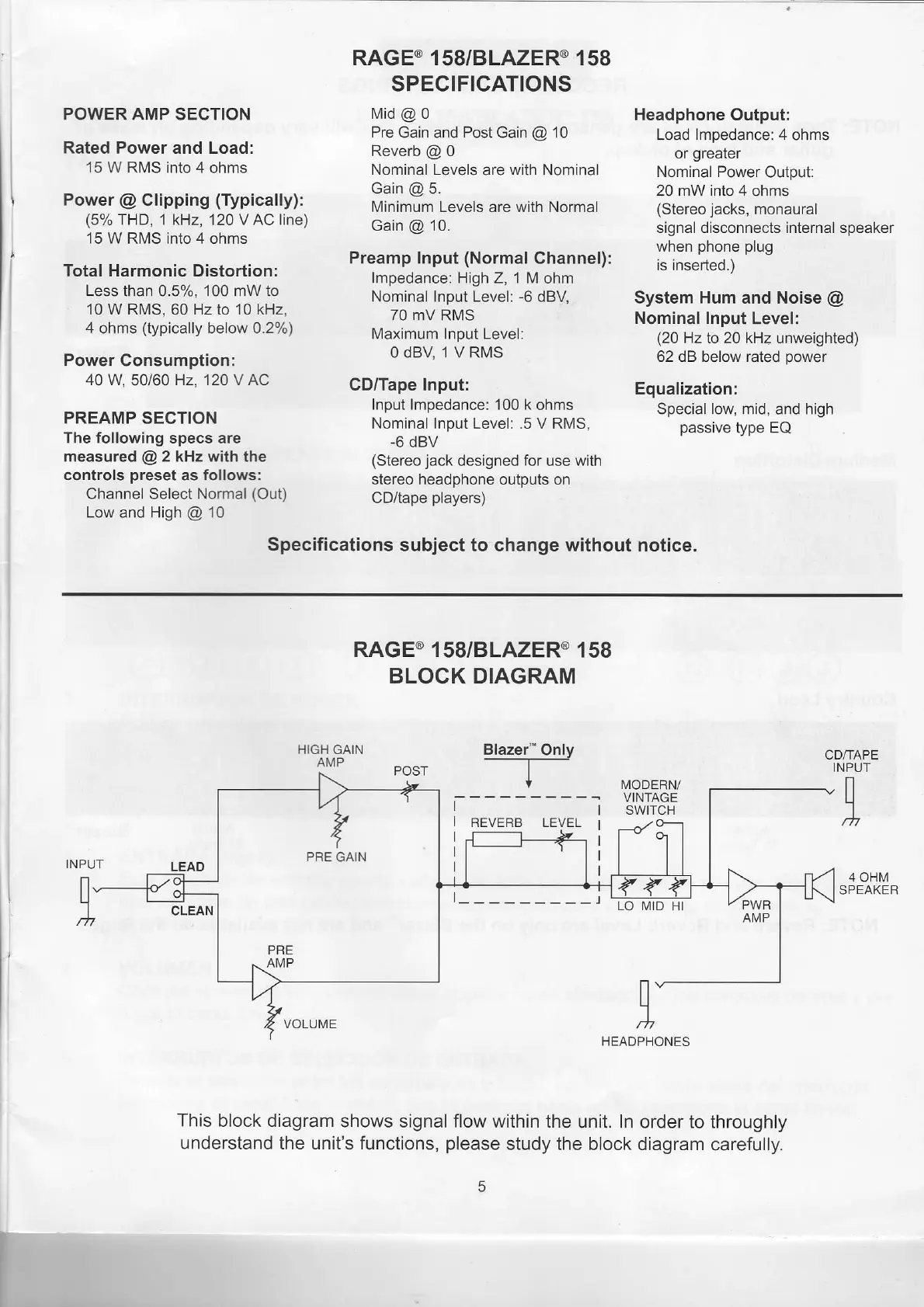

POWER AMP SECTION
Rated Power and Load:
15 W
RMS into 4 ohms
Power
@
Glipping
(Typically):
(5%
THD, 1 kHz, 120 V AC line)
15 W RMS into 4 ohms
Total Harmonic Distortion:
Less than 0.5%, 100 mW to
10 W RMS, 60 Hz to 10 kHz,
4
ohms
(typically
below
0.2%)
Power Consumption:
40 W.
50/60
Hz. 120 V AC
PREAMP
SECTION
The following specs are
measured
@
2 kHz with the
controls
preset
as
follows:
Channel Select Normal
(Out)
Low and High
@
10
RAGE@ 1s8/BLAZER@
158
SPECIFICATIONS
Mid@0
Pre Gain and Post Gain
@
10
Reverb
@
0
Nominal Levels
are
with
Nominal
Gain
@
5.
Minimum Levels are with Normal
Gain
@
10.
Preamp Input
(Normal
Ghannel):
lmpedance: High Z, 1 M ohm
Nominal Input Level:
-6
dBV
70
mV RMS
Maximum Input Level:
OdBVIVRMS
CD/Tape Input:
lnput lmpedance: 100 k
ohms
Nominal Input Level: .5 V RMS,
-6
dBV
(Stereo
jack
designed
for
use with
stereo headphone outputs on
CD/tape
players)
Headphone Output:
Load lmpedance: 4 ohms
or
grealer
Nominal Power
Output:
20 mW into 4 ohms
(Stereo
jacks,
monaural
signal disconnects internal speaker
when
phone plug
is inserted.)
System Hum and Noise
@
Nominal Input
Level:
(2O
Hz to 20 kHz
unweighted)
62 dB
below
rated
power
Equalization:
Special low, mid, and high
passive
type
EQ
Specifications
subiect to change without
notice,
HIGH GAIN
AMP
RAGE@ 1s8/BLAZER@
158
BLOCK
DIAGRAM
REVERB LEVEL
4 oHtvl
SPEAKER
This block diagram
shows signal flow within
the unit. In order to
throughly
understand the unit's functions,
please
study the block diagram
carefully.
