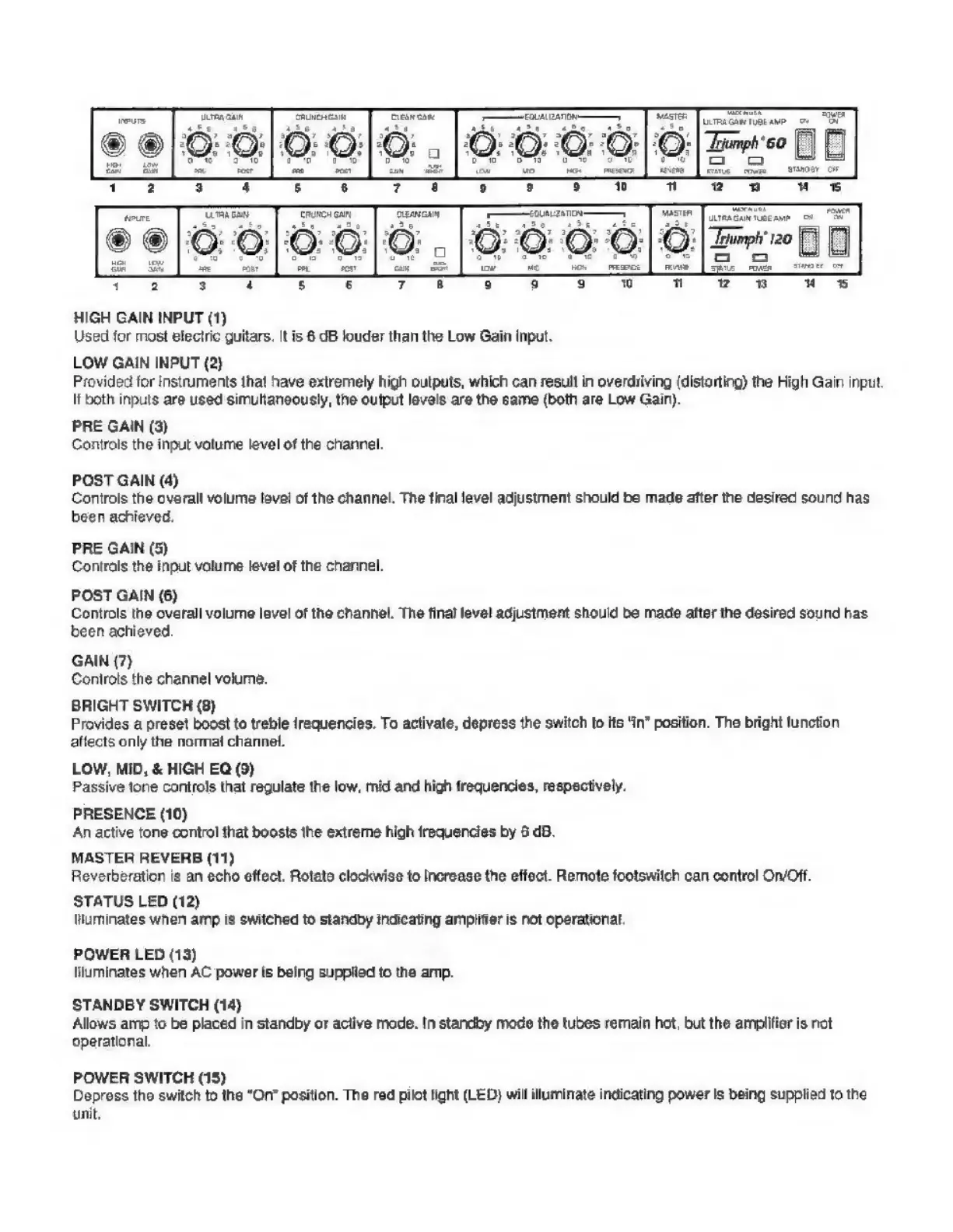

HIGH GAIN INPUT (1)
Used for most electric guitars. It is 6 dB louder than the Low Gain input.
LOW GAIN INPUT (2)
Provided for instruments that have extremely high outputs, which can result in overdriving (distorting) the High Gain input.
It both inputs are used simultaneously, the output levels are the same (both are Low Gain).
PRE GAIN (3)
Controls the input volume level of the channel
POST GAIN (4)
Controls the overall volume level of the channel. The final level adjustment should be made after the desired sound has
been achieved.
PRE GAIN (5)
Controls the input volume level of the channel.
POST GAIN (6)
Controls the overall volume level of the channel. The final level adjustment should be made after the desired sound has
been achieved.
GAIN (7)
Controls the channel volume.
BRIGHT SWITCH (8)
Provides a preset boost to treble frequencies. To activate, depress the switch to its “in” position. The bright function
affects only the normal channel.
LOW, MID, & HIGH EQ (9)
Passive tone controls that regulate the low, mid and high frequencies, respectively.
PRESENCE (10)
An active tone control that boosts the extreme high frequencies by 6 dB.
MASTER REVERB (11)
Reverberation is an echo effect. Rotate clockwise to increase the effect. Remote footswitch can control On/Off.
STATUS LED (12)
illuminates when amp is switched to standby indicating amplifier is not operational
POWER LED (13)
liluminates when AC power is being supplied to the amp.
STANDBY SWITCH (14)
Allows amp to be placed in standby or active mode. In standby mode the tubes remain hot, but the amplifier is not
operational.
POWER SWITCH (15)
Depress the switch to the “On” position. The red pilot light (LED) will iluminate indicating power is being supplied to the
unit.
