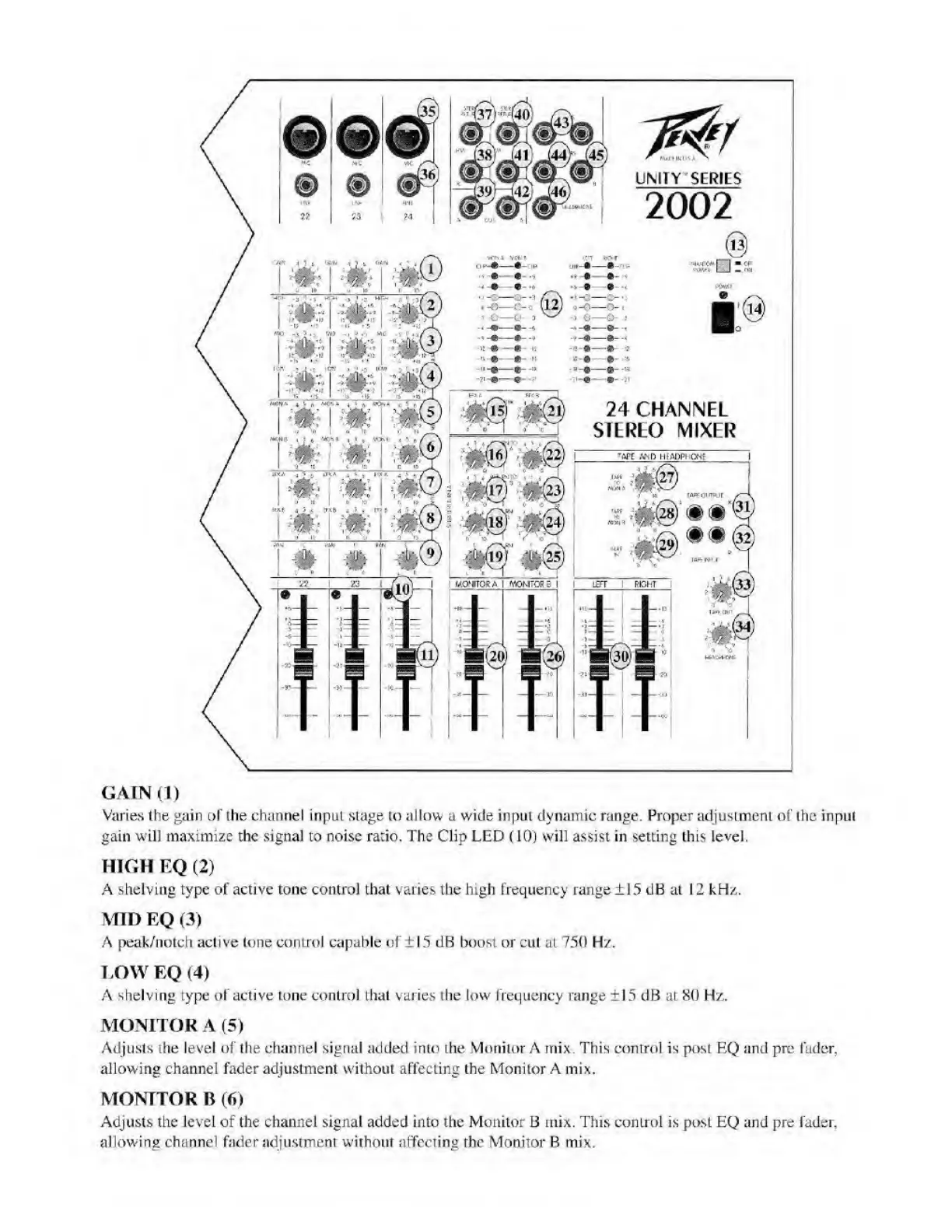

Peavey UNITY 2002

GAIN (1)
Varies the gain i>f ihe channel input stage to allow a wide input dynamic range. Proper adjustment of the input
gain will maximize the signal to noise ratio. The Clip LED (10) will assist in setting this level,
HIGH EQ (2)
A shelving type of active tone control that varies the high frequency range ±15 dfi at 12 kHz.
MID EQ (3)
A peak/notch active tone control capable of ±15 tlR boost or cut at 750 H/.
LOW EQ (4)
A shelving type of active tone control that varies the low frequency range ±15 dB at 80 H/.
MONITOR A (5)
Adjusts the level of Ihe channel signal added into the Monitor A mix. This control is post EQ and pre fader,
allowing channel fader adjustment without affecting the Monitor A mix,
MONITOR B (6)
Adjusts the level of the channel signal added into the Monitor B mix. This control is po.sl HQ and pre lader,
allowing channel fader ixdjusiment without affecting the Monitor B mix.
