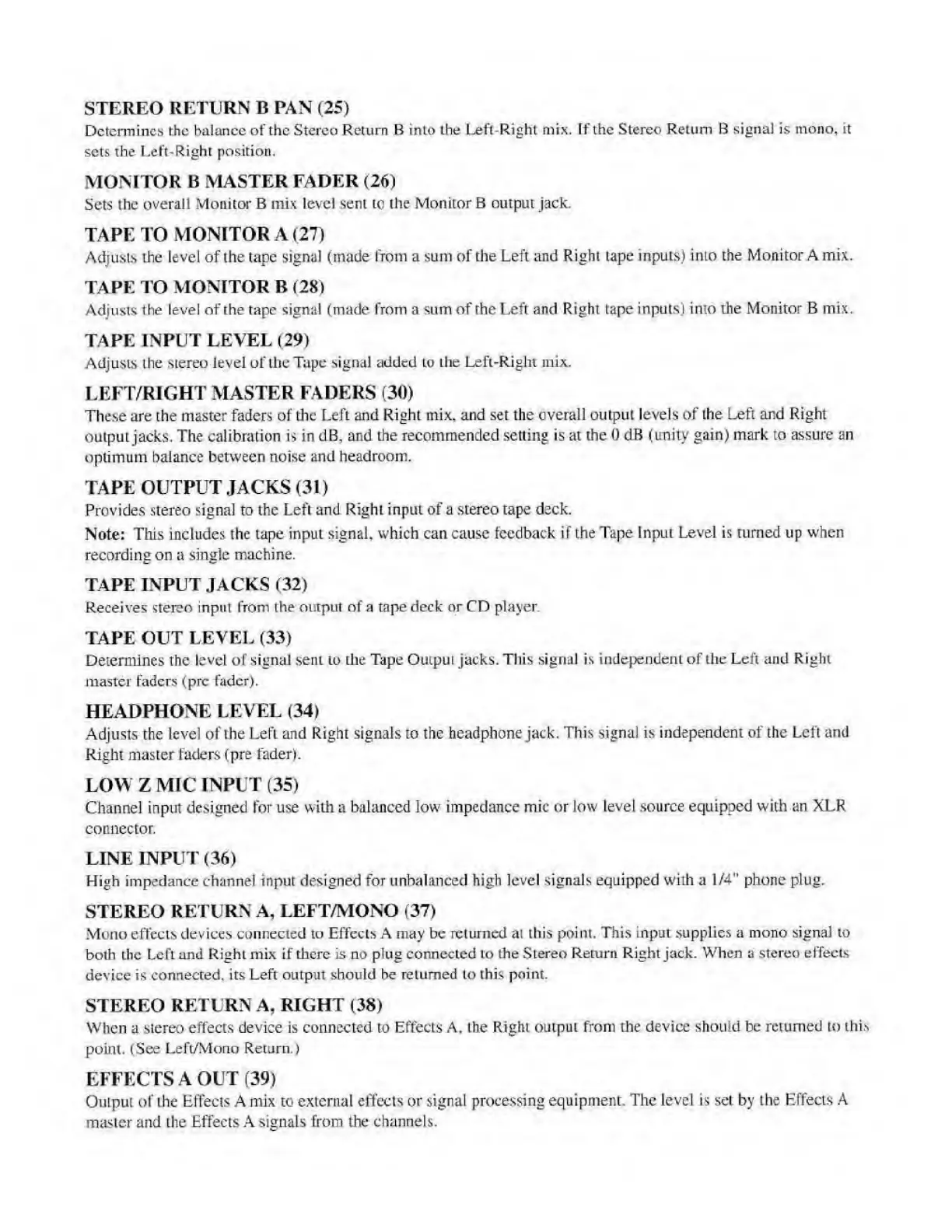

STEREO
RETURN
B
PAN
(25)
Determines
the
balance
of
the
Stereo
Return
B
into
the
Lefl-Right
mix.
If
the
Stereo
Return
B
signal
is
mono,
it
sets
the
Lefl-Right
position.
MONITOR
B
MASTER
FADER
(26)
Sets
the
overall
Monitor
B
mix
level
sent
to
the
Monitor
B
output
jack.
TAPE
TO
MONITOR
A
(27)
Adjusu
the
level
of
the
tape
signal
(made
frotn
a
sum
of
tlie
Left
and
Right
tape
inputs)
into
the
Monitor
A
mix.
TAPE
TO
MONITOR
B
(28)
Adjusts
the
level
of
the
tape
signal
(made
from
a
sum
of
the
Left
and
Right
tape
inputs)
into
the
Monitor
B
mix.
TAPE
INPUT
LEVEL
(29)
Adjusts
the
stereo
level
of
die
Tape
signal
added
lo
the
Left-Right
mix.
LEFT/RIGHT
MASTER
FADERS
(30)
TTiese
are
the
master
faders
of
the
Left
and
Right
mix,
and
set
the
overall
output
levels
of
ihe
Left
and
Right
output
jacks.
The
calibration
is
in
dB,
and
the
recommended
setting
is
at
the
0
dB
(unity
gain)
mark
to
assure
an
optimum
balance
between
noise
and
headroom.
TAPE
OUTPUT
JACKS
(31)
Provides
stereo
signal
to
the
Left
and
Rig
hi
input
of
a
sto'eo
tape
deck
Note:
This
includes
the
tape
input
signal,
which
can
cause
feedback
if
the
Tape
Input
Level
is
turned
up
when
recording
on
a
single
machine.
TAPE
INPUT
JACKS
(32)
Receives
stereo
input
from
the
output
of
a
tape
deck
or
CD
player.
TAPE
OUT
LEVEL
(33)
Determines
the
level
of
signal
sent
it>
the
Tape
Output
jacks.
This
signal
is
independent
of
the
Left
and
Right
master
faders
(pre
fader),
HEADPHONE
LEVEL
(34)
Adjusts
the
level
of
the
Left
and
Right
.signals
to
the
headphone
jack.
This
signal
is
Independent
of
the
Left
and
Right
master
faders
(pre
fader).
LOW
Z
MIC
INPUT
(35)
Channel
input
designed
for
use
with
a
balanced
low
impedance
mic
or
low
level
source
equipped
with
an
XLR
connector.
LINE
INPUT
(36)
High
impedance
channel
input
designed
for
unbalanced
high
level
signals
equipped
with
a
1/4"
phone
plug.
STEREO
RETURN
A,
LEFT/MONO
(37)
Mono
effects
devices
connected
to
Effccls
Ainay
be
returned
at
this
point,
This
input
supplies
a
mono
signal
to
both
the
Left
and
Right
mix
if
tlicrc
is
no
plug
connected
to
the
Stereo
Return
Right
jack.
When
a
stereo
effects
device
is
connected,
its
Left
output
should
be
relumed
to
this
point.
STEREO
RETURN
A,
RIGHT
(38)
When
a
siereo
effects
device
is
connected
to
Effects
A.
the
Right
output
from
the
device
should
be
returned
to
this
point.
(See
Left/Moiio
Return.)
EFFECTS
A
OLIT
(39)
Output
of
the
ElTecis
Amix
to
external
effecl.s
or
signal
processing
equipment.
The
level
i^
set
by
the
Effeas
A
master
and
the
Effects
A.
signals
from
the
channels.
